980 User Guide Rev. B29
Page 130 August 5, 2011

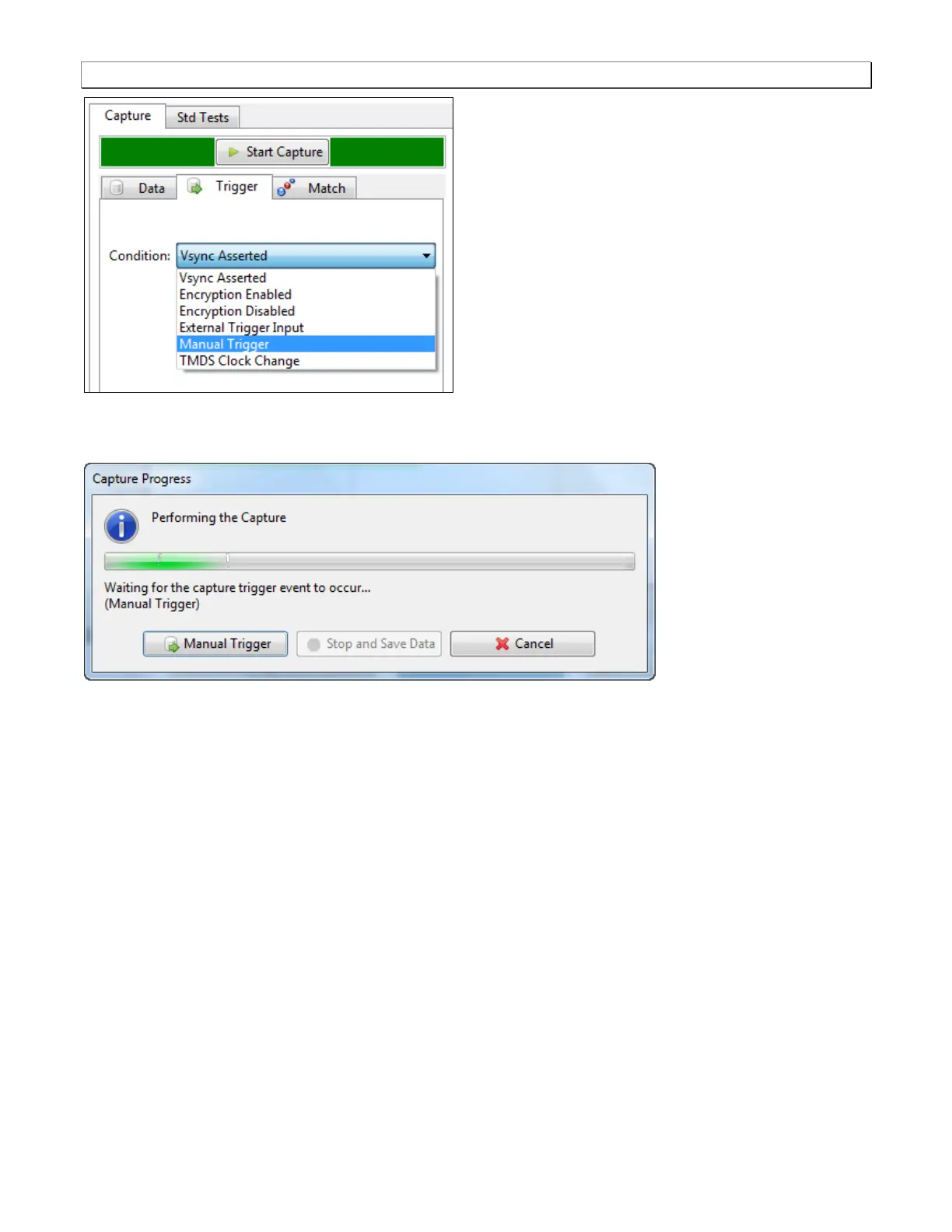

Typically manual triggers are used in the Pass-through or Encrypted Link Analyzer mode. In these modes there is
a display connected to the 980 Tx port. A common application would be to observe the connected display and
when it exhibits the behavior you are looking for, you can initiate the manual trigger.
6.11 Using Precision Trigging and Pre-Capture Filtering
If the trigger and data matching selections available on the Data and Trigger menus are not sufficient, you can use
the Match feature to define more specific triggering and matching criteria. The 980 Capture Control function has
an advanced triggering and pre-capture filtering function which enables you to specify the triggering and
pre-capture filtering with a greater degree of detail. These advanced features are configured through the Match
functional tab under the Capture tab shown below.
