980 User Guide Rev. B29
Page 28 August 5, 2011
3 Overview of the 980 Manager (External) GUI
3.1 Overview
This chapter describes the 980 Manager panels. The 980 Manager is an application that runs on your local PC. It
enables you to examine the data captured by the 980 Protocol Analyzer through a user friendly graphical interface.
3.1.1 Main Window

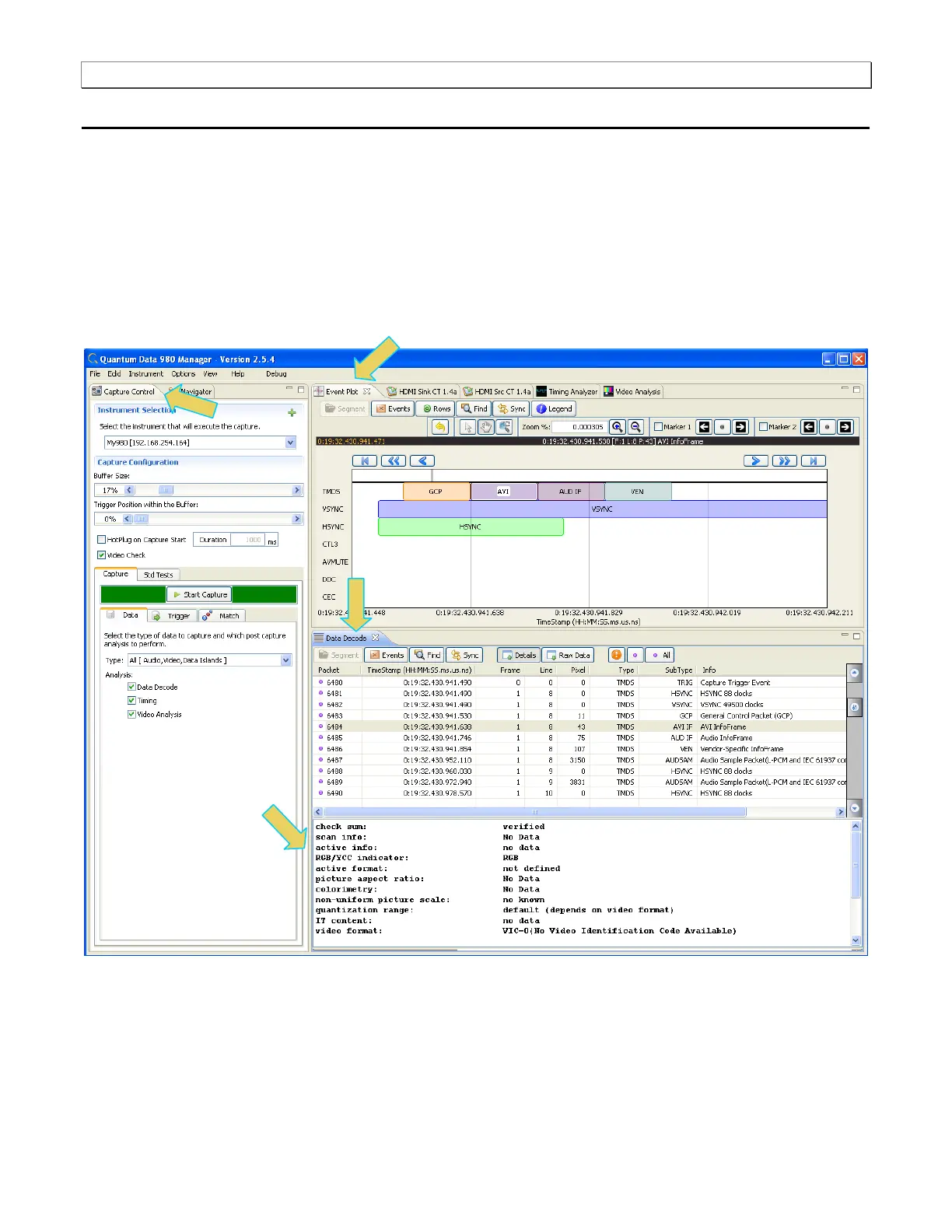

An example of the main window configuration of the 980 Manager is shown in the figure below. The 980 Protocol
Analyzer panel can be rearranged and resized using standard windowing control techniques. You can also double
click on a panel to enlarge it such that it consumes the entire area of the application.
