980 User Guide Rev. B29
Page 27 August 5, 2011

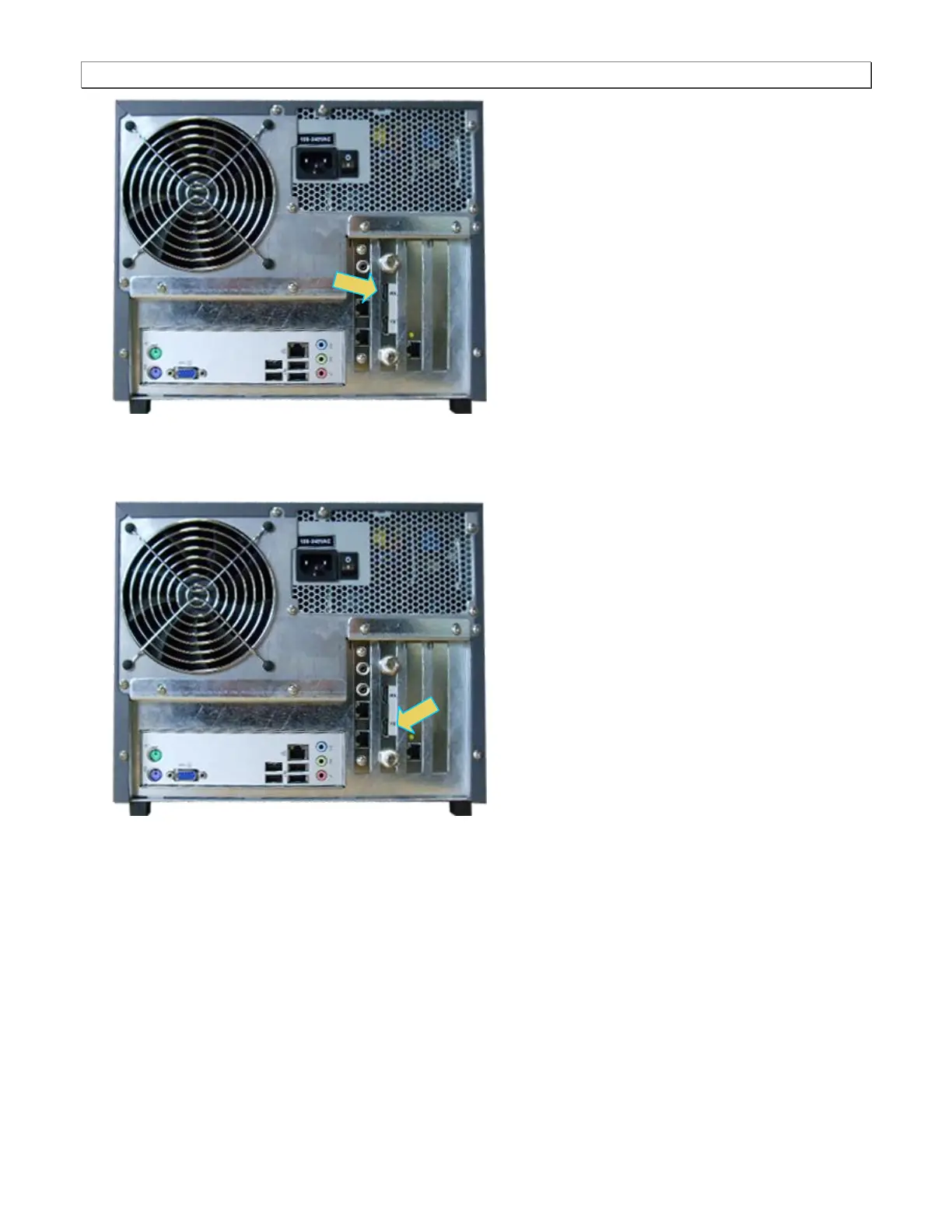

2. (For pass-through or Encrypted Link Analyzer modes only) You will also connect a second HDMI-to-HDMI
cable provided from an HDMI display device to the lower HDMI connector—the Tx connector—on the back of
the 980 Protocol Analyzer. Refer to the picture below.
