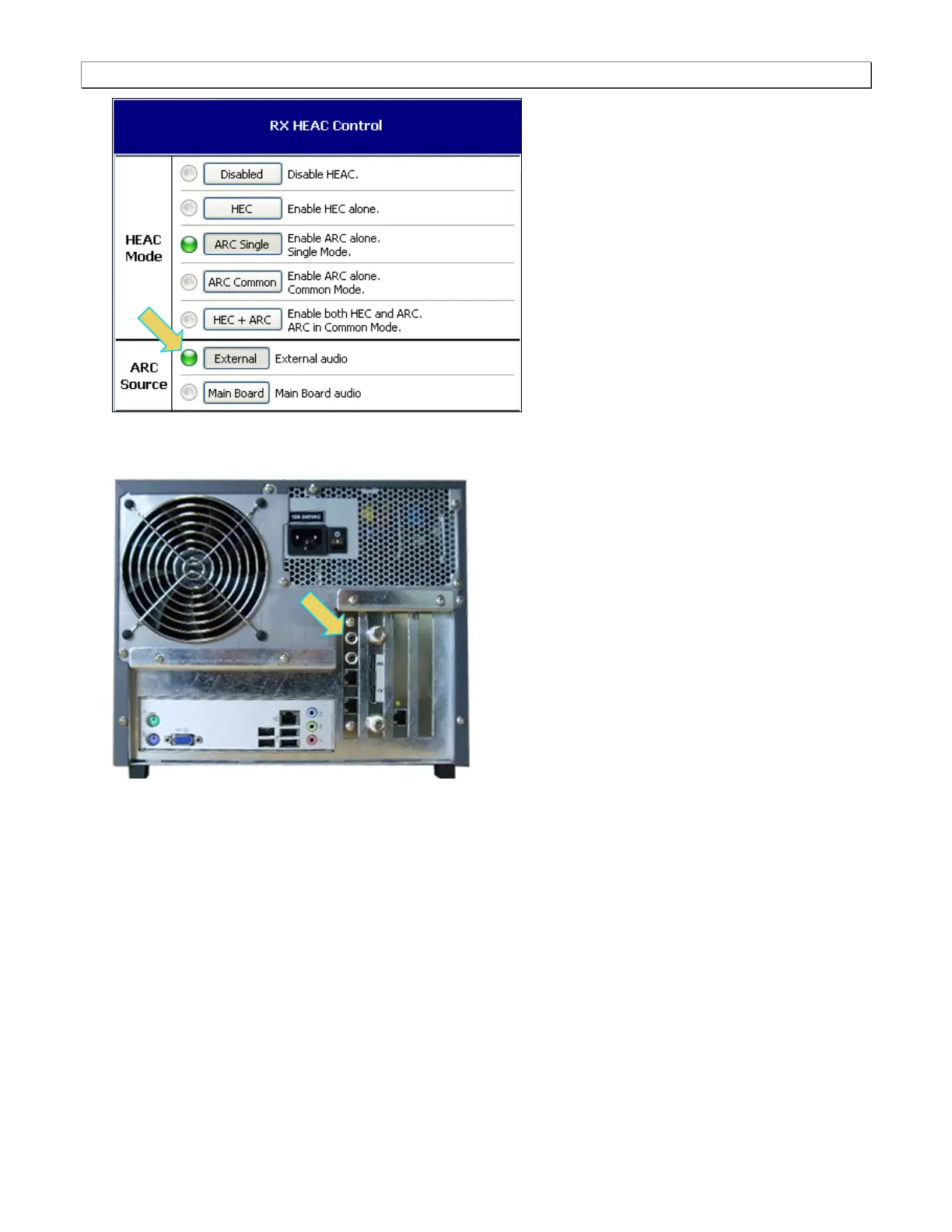

You will need to connect your external SPDIF source to the SPDIF In RCA connector on the rear of the 980 as
indicated in the image below:
8.2 Test ARC on an HDMI sink (ARC Tx)
The procedures below describe how to use the 980 to emulate an ARC Rx device (HDMI A/V Receiver) in order to
test an HDMI sink (ARC Tx). The 980 can parse SPDIF audio from an incoming ARC stream. The 980 displays
basic information about the SPDIF audio is provided in the SPDIF Analysis tab. Refer to the diagram below for a
depiction of the general test setup.
