980 User Guide Rev. B29
Page 192 August 5, 2011

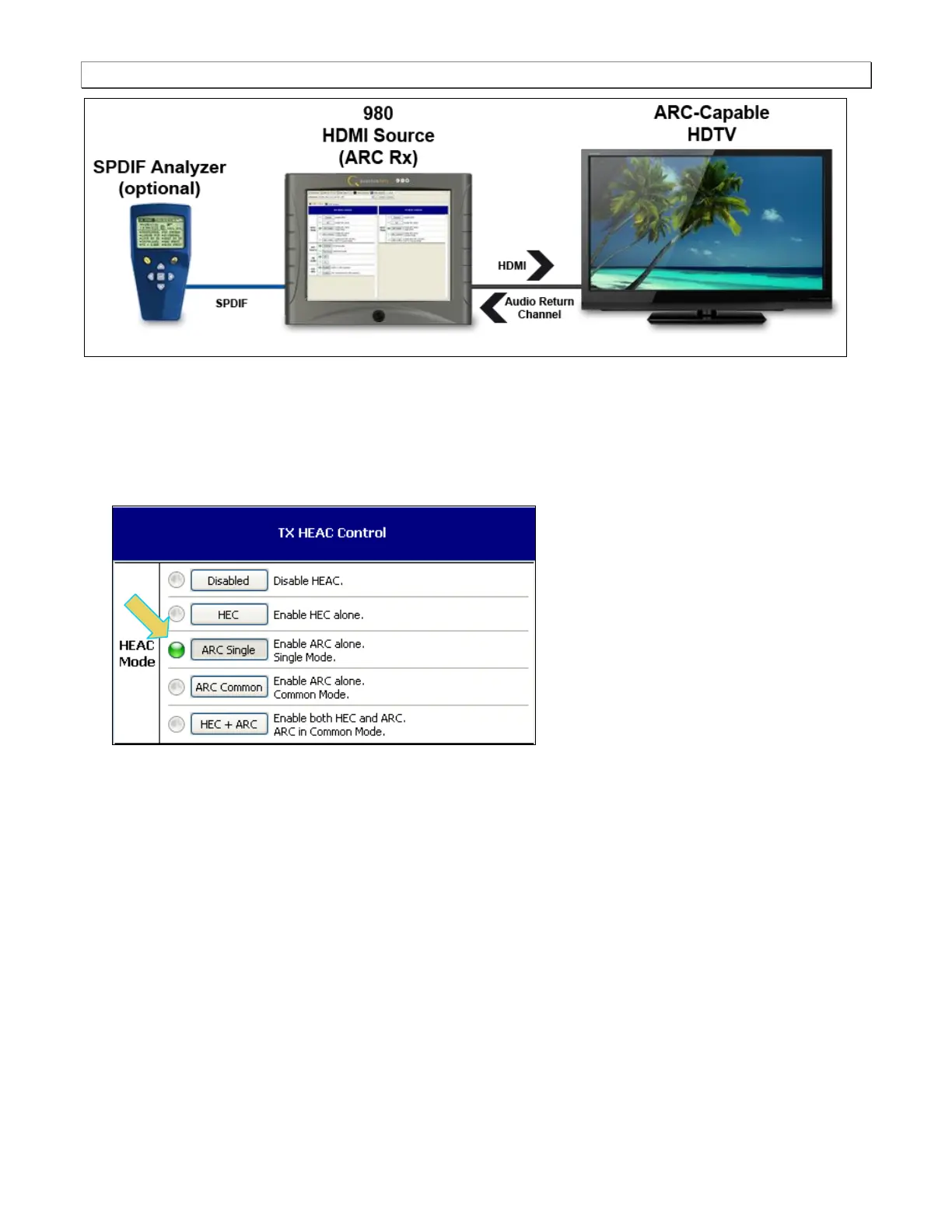

To test the ARC stream from an HDMI sink (ARC Tx):
1. Connect an HDMI 1.4a cable from the HDMI 1.4a ARC-capable sink to the 980 Tx port.
2. Determine the HEAC mode for ARC that you wish to test with and then activate that mode by clicking on the
appropriate activation button. For example if you wish to test ARC in the Single Mode you would select the
appropriate button in the TX HEAC Control – HEAC Mode subpanel as shown below.
3. View the audio parameters from the SPDIF Analysis Panel as shown below. The detected sampling rate is
shown and the Channel Status bits.
