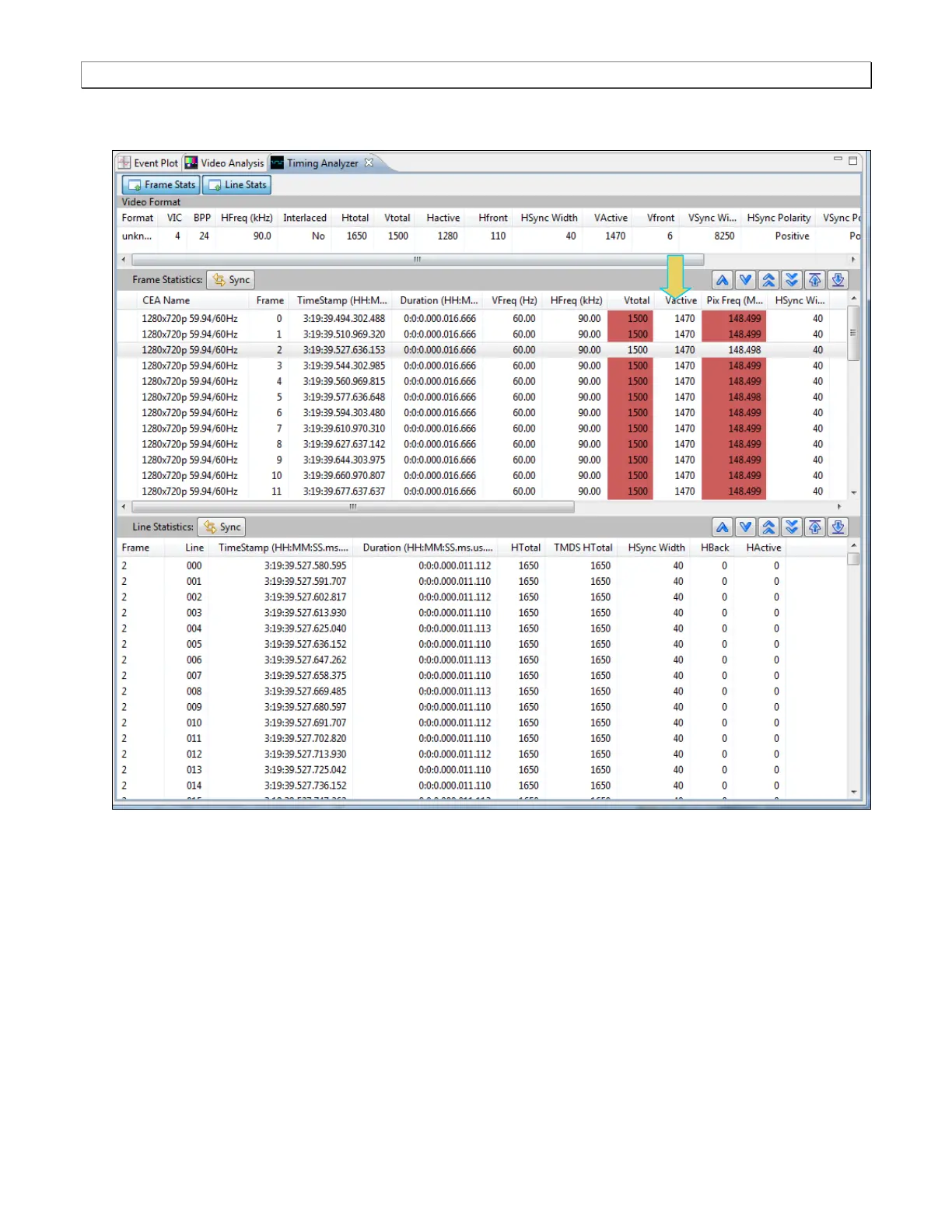

You can view captured 3D timing in the Timing Analysis panel. The screen shot below shows an example of a
3D timing data for the Frame Packing format at 720p60. Note the vertical active timing (1470 lines).
