4.3.2 Viewing 3D Images
You can view captured 3D images in the Video Analysis panel. The 3D images appear adjacent to one another in
the window, either side by side or one on top and the other below it for the left and right eyes depending on the 3D

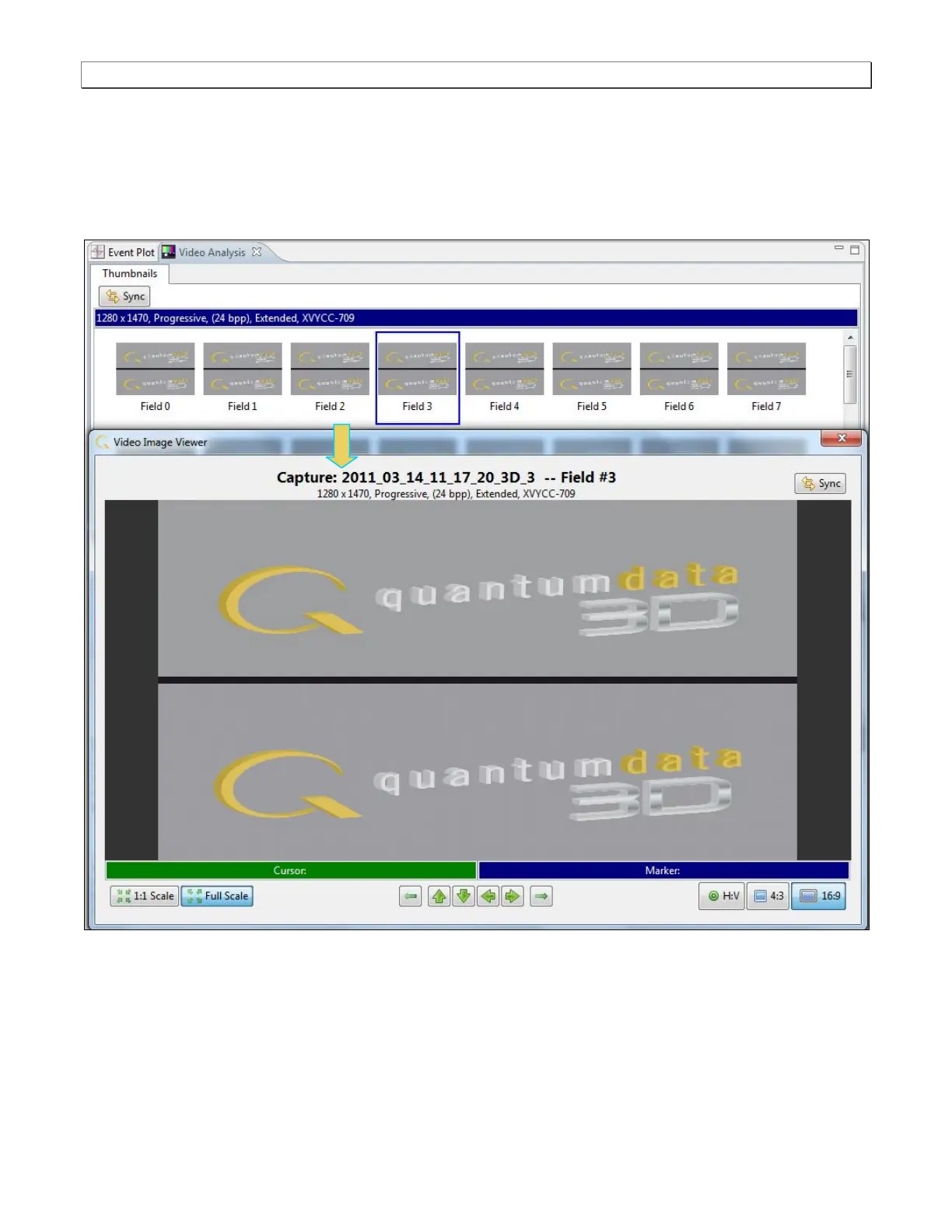

structure used. The screen shot below shows an example of a 3D image in the Frame Packing format at 720p60.
Note the vertical timing (1470 lines) shown in the heading area just above the top image.
