Page 2318 / 01 / 2008 Version 1.2.5 B 13 / B14 / B16 / B20 / B25 / B32 Drilling machine
4 Handling
4.1 Safety
Use the drilling machine only under the following conditions:
The drilling machine is in proper working order.
The drilling machine is used as prescribed.
The instruction manual has been followed.
All safety devices are installed and activated.
All malfunctions should be eliminated immediately. Stop the machine immediately at an event of
any malfunction in operation and make sure it cannot be started up accidentally or without
authorization.
Notify the person responsible immediately of any modification.
„Safety during operation“ on page 12
4.2 Control and indicating elements
4.2.1 B 13, B 14

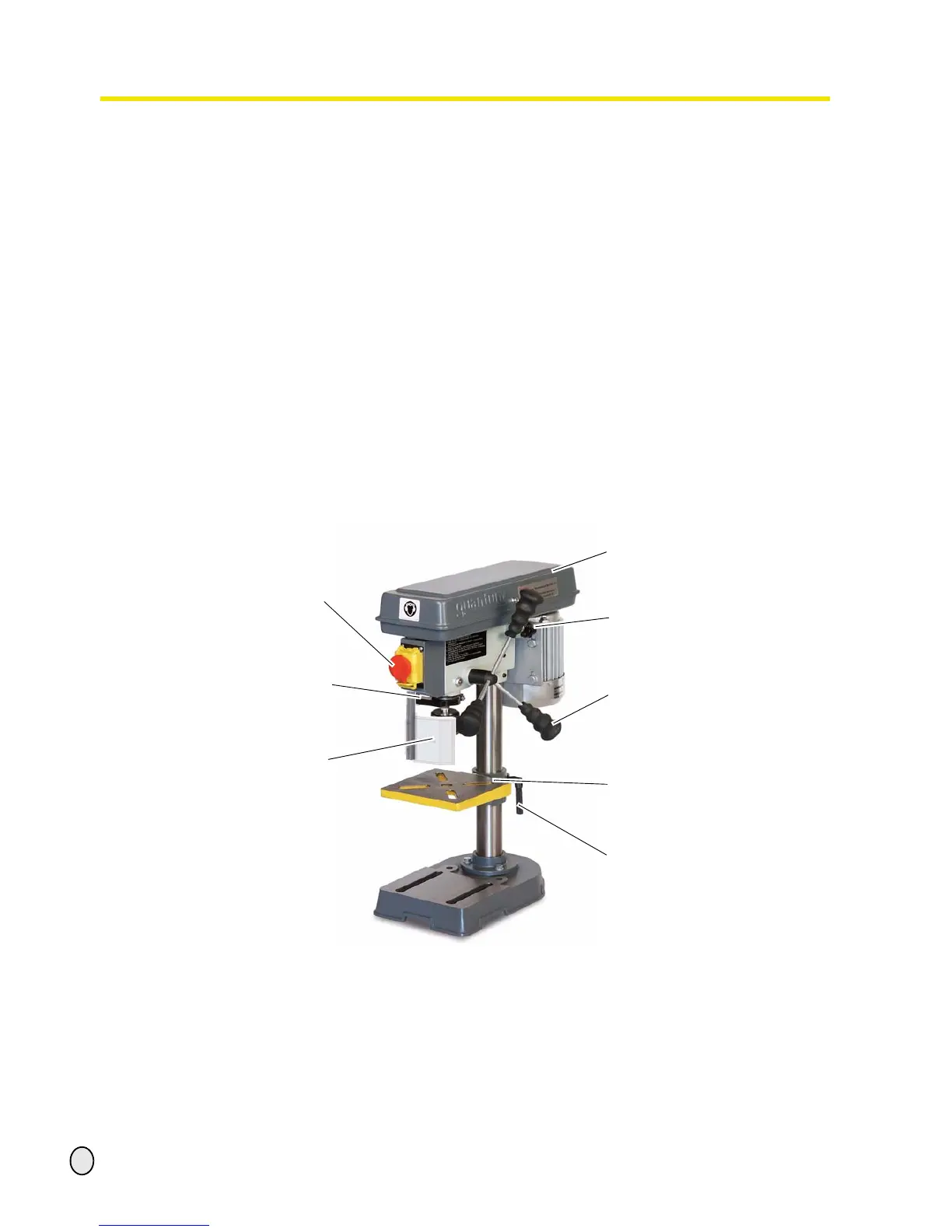

Illustr. 4-1: quantum B 13
pulley drive with housing
handle for V-belt tension
lever for spindle sleeve feed
drilling machine table
table height adjustment
ON / OFF switch with
EMERGENCY STOP
function
drill depth stop
drill chuck guard
