quantum
MASCHINEN - GERMANY
Assembly
© 2007
GB
Page 1718 / 01 / 2008 Version 1.2.5 B 13 / B14 / B16 / B20 / B25 / B32 Drilling machine
Observe the rules for preventing accidents issued by your association for the prevention
of accidents or other inspection authorities. Hold the loads properly. Never walk under
suspended loads!
3.3 Storage
ATTENTION!
Improper storage may cause important parts to be damaged or destroyed. Store packed
or unpacked parts only under the following ambient conditions:
„Environmental conditions“ on page 15
Consult Optimum Maschinen GmbH if the drilling machine and accessories have to be stored
for a period of over three monthes or under different external conditions than those given here.
3.4 Installation and assemby
3.4.1 Assembly
WARNING!
Danger of crushing when grouping, assembling and mounting the machine components.
Assembly of stand and tripod
INFORMATION
You need a hexagon spanner 17mm and the hexagon bolts contained in the delivery volume to
assemble the drilling machine.
Put the stand on the floor and fix the drill
column to the stand. Hexagon bolts are
provided to fix it.

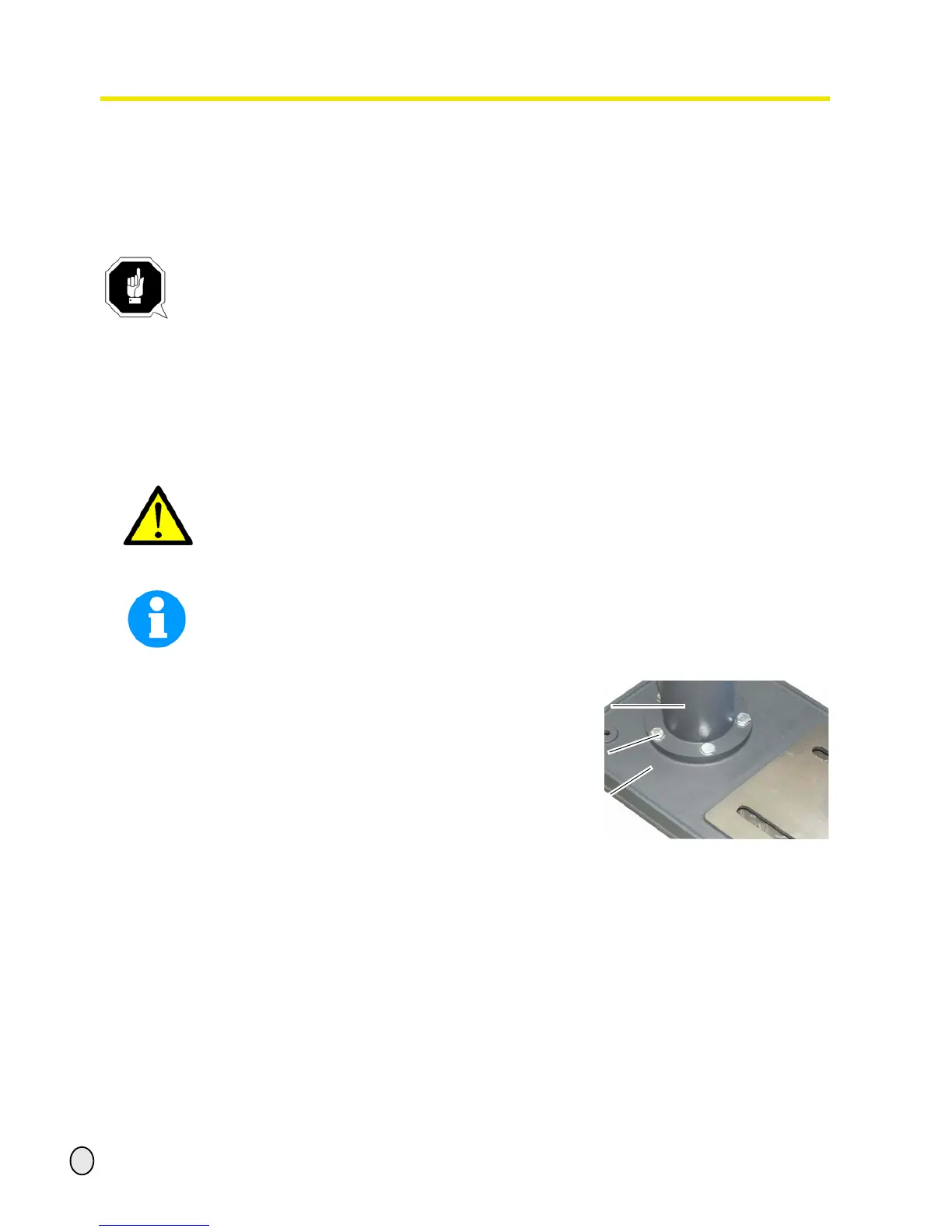

Illustr.3-1: Assembly drill column
drill column
hexagon bolts
stand
