• For B 13 / B14:
Adjust the limit screw to the required drilling
depth.
The spindle may only be lowered to the
required drill depth.

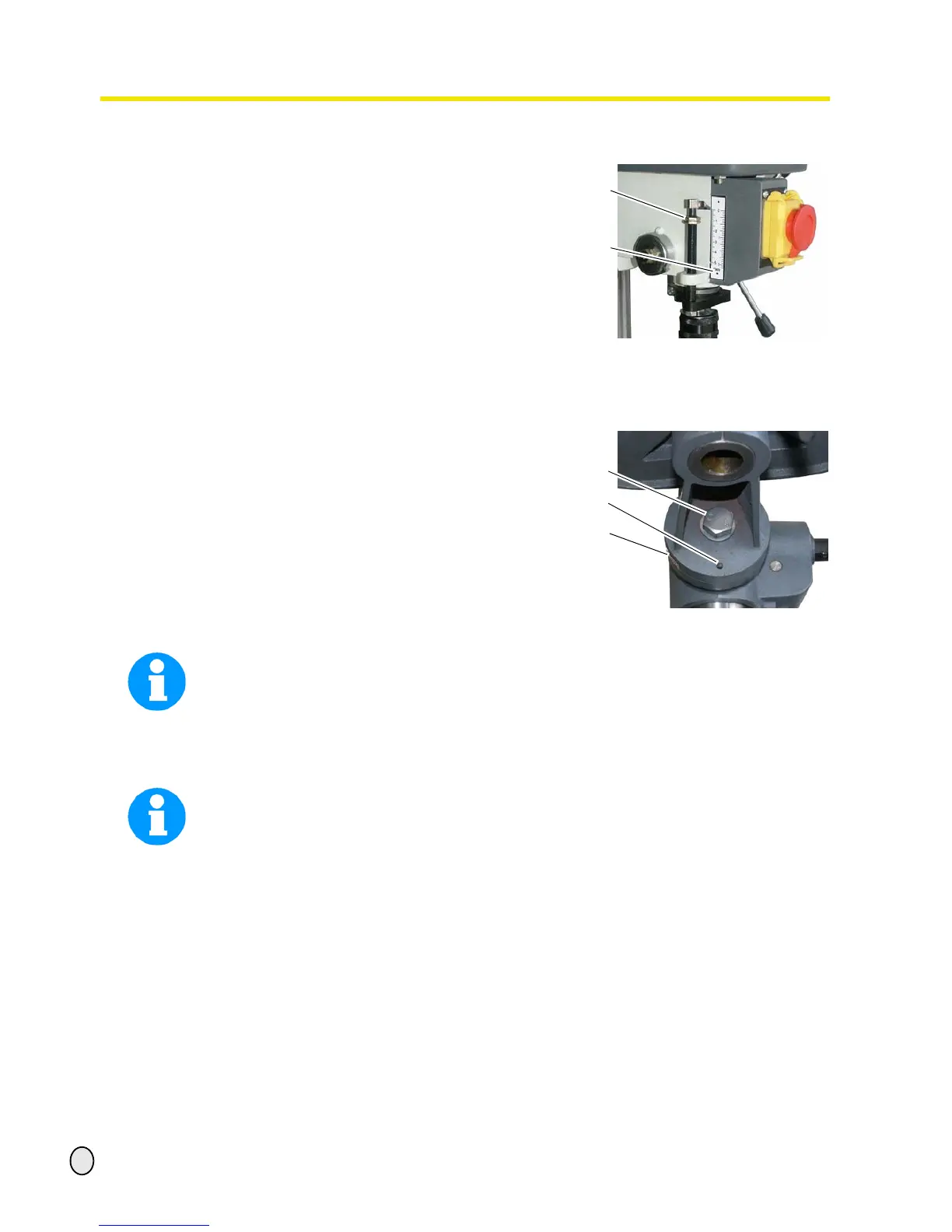

Illustr.4-4: Drill depth stop
B13 - B14
4.2.4 Inclination of the drilling machine table
The drilling machine table can be inclined
to the right or to the left.
Loosen the fastening screws.
For B16 / B20 / B25 / B32:
Pull out the threaded pin.
Illustr.4-5: Fastening screw
INFORMATION
If the threaded pin may not be pulled out, the seat may be loosened by turning the nut clock-
wise.
Adjust the required angle by means of the scale.
Retighten the fastening screw firmly.
INFORMATION
The threaded pin is only provided for correct positioning of a horizontal level of the drilling table.
limit screw
drill depth stop
scale
fastening screw
threaded pin
scale
