Page 24 Drilling machine B 13 / B14 / B16 / B20 / B25 / B32 Version 1.2.5 18 / 01 / 2008
4.2.2 B 16, B 20, B 25, B 32, B20 Vario, B25 Vario, B32 Vario

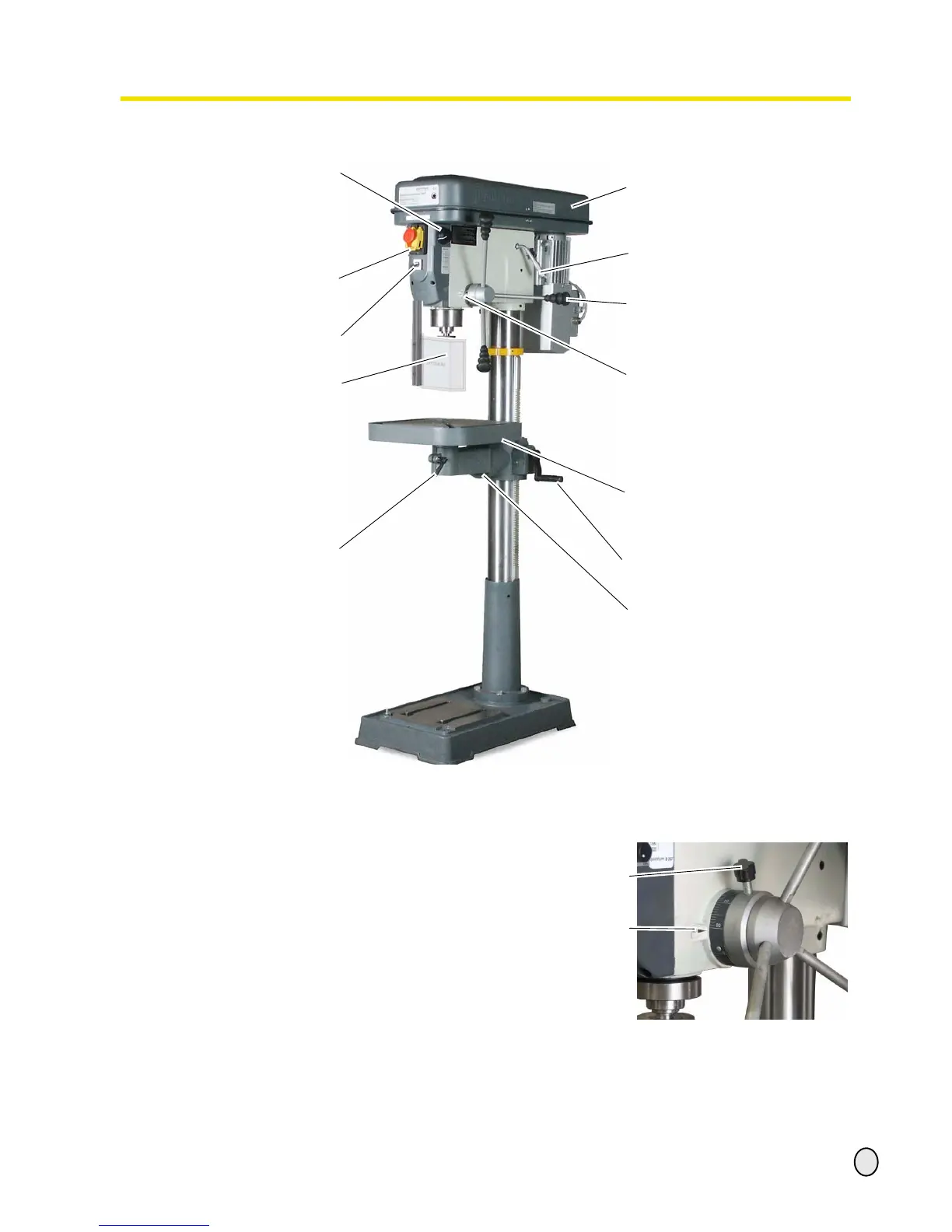

Illustr. 4-2: quantum B20 Vario
4.2.3 Drill depth stop
When drilling several holes of the same
depth, you can use the drill depth stop.
• Bei B16 / B20 / B25 / B32:
Unscrew the locking screw and turn the
graduated collar until the required drill
depth superimposes with the pointer.
Retighten the locking screw.
Illustr.4-3: Drill depth stop
B16 - B32
pulley drive with housing
handle for V-belt tension
lever for spindle sleeve feed
drill depth stop
drilling machine table
table height adjustment
adjustment for the inclination of
the drilling machine table
potentiometer speed
regulation (only Vario)
ON / OFF switch with
EMERGENCY STOP
function
reversing switch
drill chuck guard
clamping lever
locking screw
drill depth stop
scale
