Assembly
quantum
MASCHINEN - GERMANY
© 2007
GB
Page 18 Drilling machine B 13 / B14 / B16 / B20 / B25 / B32 Version 1.2.5 18 / 01 / 2008

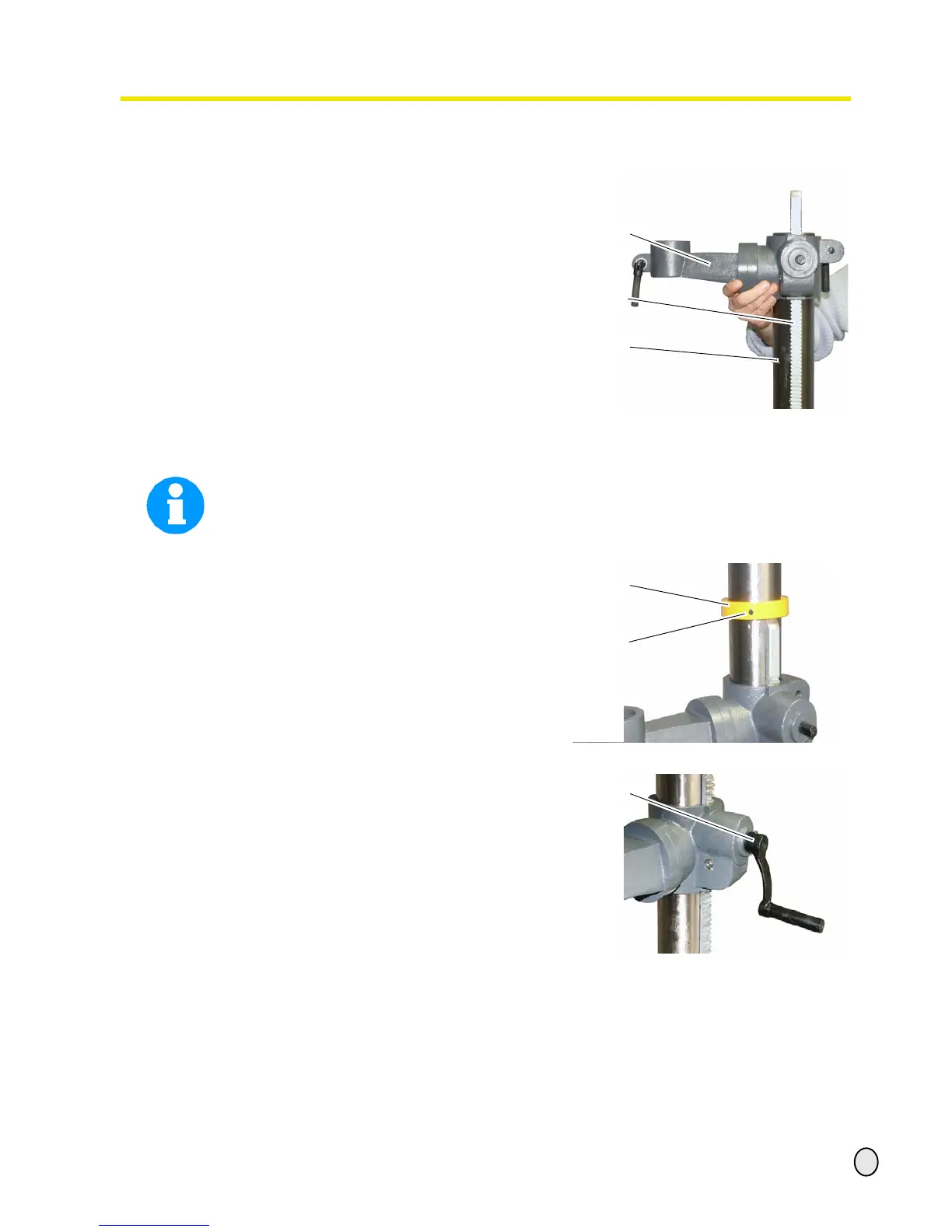

Assembly of the drilling machine table B16, B20, B25 and B32 / Vario
Introduce the toothed rack into the sup-
port for the drilling machine table.
Adjust the toothed rack within the drill-
ing machine table in a way that the
teeth of the toothed rack cam into the
spiral wheel of the support for the drill-
ing machine table.
Push the complete table with the
toothed rack onto the tripod.
Illustr.3-2: Assembly of the drilling
machine table (B20)
INFORMATION
The larger part without toothing of the toothed rack must be upside.
Push the guide ring on the column and
on the toothed rack.
Fix the guide ring with the stud bolt.
Make sure that the drilling table is still turn-
ing easily around the drill column.
Illustr.3-3: Assembly guide ring
Mount the crank handle for height
adjustment of the drill head.
Clamp the crank handle with the stud
bolt.
Illustr.3-4: Assembly crank handle
support for drilling
machine table
toothed rack
tripod
guide ring
stud bolt
crank handle
