quantum
MASCHINEN - GERMANY
Assembly
© 2007
GB
Page 1918 / 01 / 2008 Version 1.2.5 B 13 / B14 / B16 / B20 / B25 / B32 Drilling machine

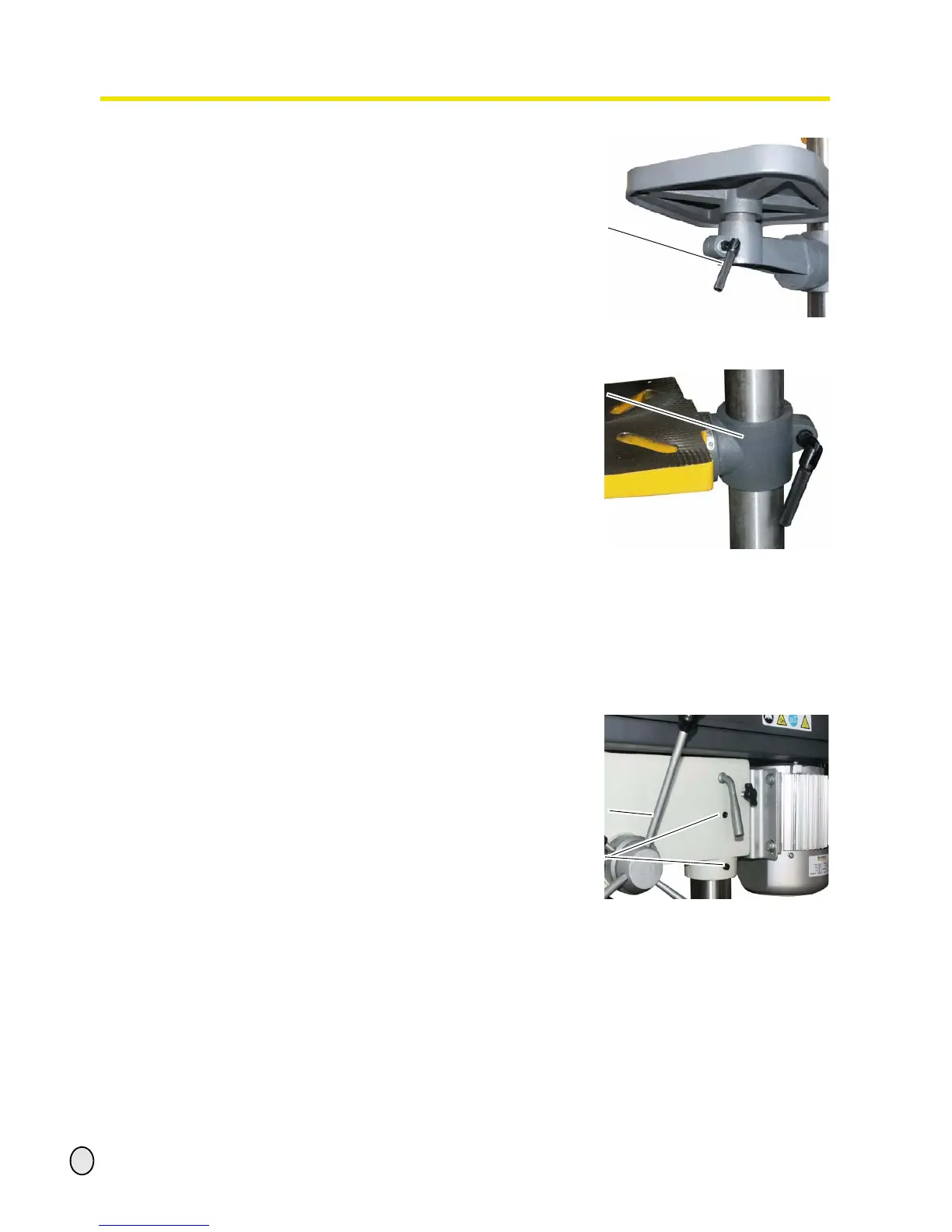

Put the drilling table onto the drilling
support. Mount the clamping lever.
Illustr.3-5: Assembly drilling table
Mount the drilling table B13 , B14
Push the drilling table support with
mounted drilling table onto the column.
Illustr.3-6: Assembly drilling table B13/
B14
Assembly of the drilling head
Put the drilling head on the tripod and
turn it until it aligns with the stand.
Make sure that the drilling head is
completely fixed onto the tripod.
Tighten the drilling head with the two set
screws.
Mount the three levers of the feed cross.
Illustr.3-7: Assembly drilling head
clamping lever
drilling table support
Lever
stud bolt
