QubicaAMF TMS Tenpin String Pinspotter User Manual

TMS STRING PINSPOTTER OWNER’S MANUAL
400-051-010-01 Rev. Date: 6/17 Page 5-20

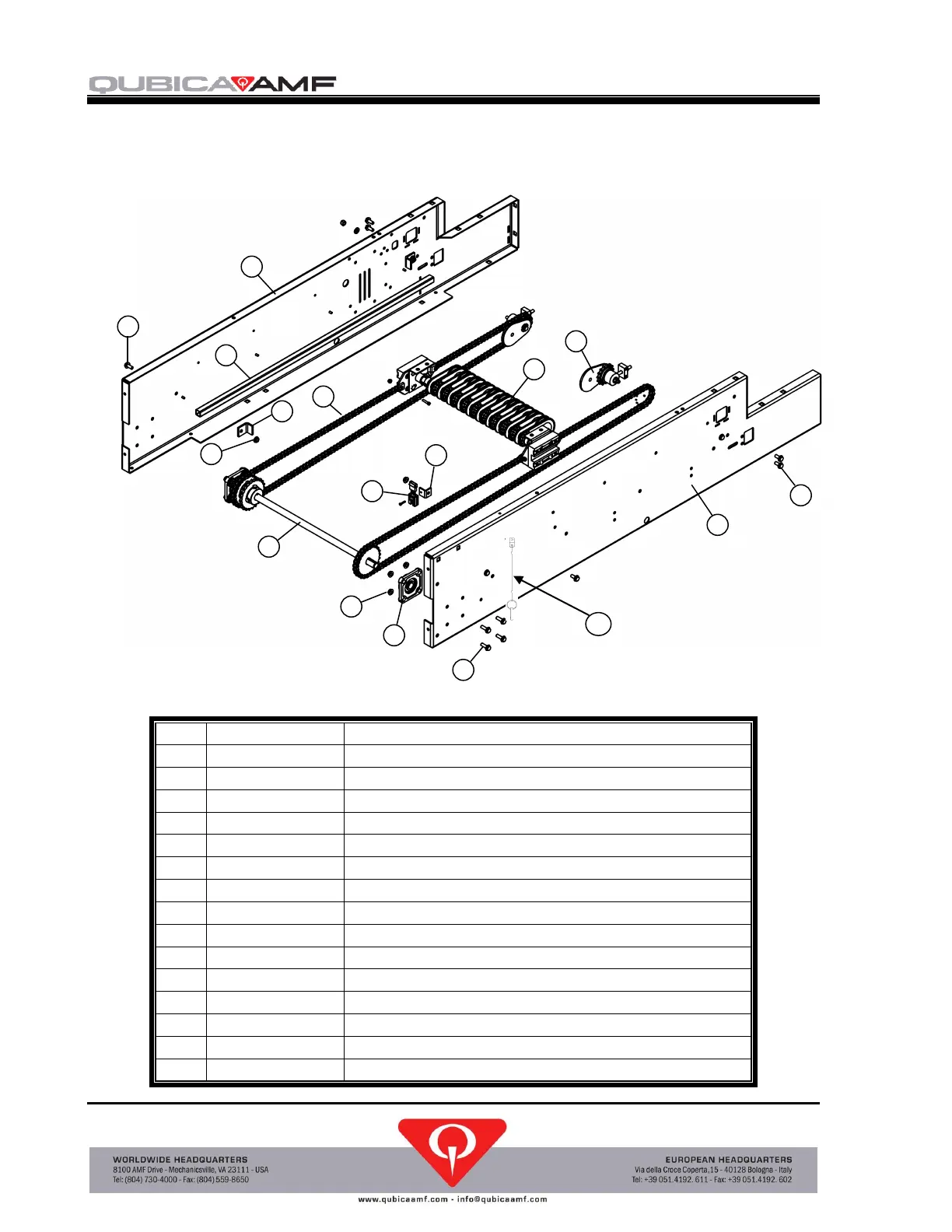

Frame Assembly
`
Frame Assembly Parts List
Item
Part Number
Description
1
051-020-002
OUTER PANEL, 10-PIN SIDE
2
051-020-004
OUTER PANEL, 7-PIN SIDE
3
051-090-008
REAR SHAFT ASSEMBLY
4
051-090-009
DRAWBAR GUIDE ASSEMBLY
5
051-090-010
CHAIN TENSIONER ASSEMBLY
6
051-090-011
DRAWBAR ASSEMBLY
7
M-0690-21
FLANGE BEARING
8
801-757-161
SCREW, HEX WASHER HEAD, 5/16-18 X 1, BLACK
9
856-057-001
NUT, HEX FLANGE HEAD, 5/16-18, BLACK
10
801-757-121
SCREW, HEX WASHER HEAD, 5/16-18 X ¾, BLACK
11
051-020-010
DRAWBAR GUIDE BAR
12
9102017
DRAWBAR STOPPER
13
SB-ECIL-325-FS
OPTICAL SENSOR ASSEMBLY, WHITE
14
9102054
OPTICAL SENSOR SUPPORT
15
914-148-158
STOP PINS
1
2
3
4
5
6
7
9
10
11
12
10
9
8
13
14
15
