QubicaAMF TMS Tenpin String Pinspotter User Manual

TMS STRING PINSPOTTER OWNER’S MANUAL
400-051-010-01 Rev. Date: 6/17 Page 5-36

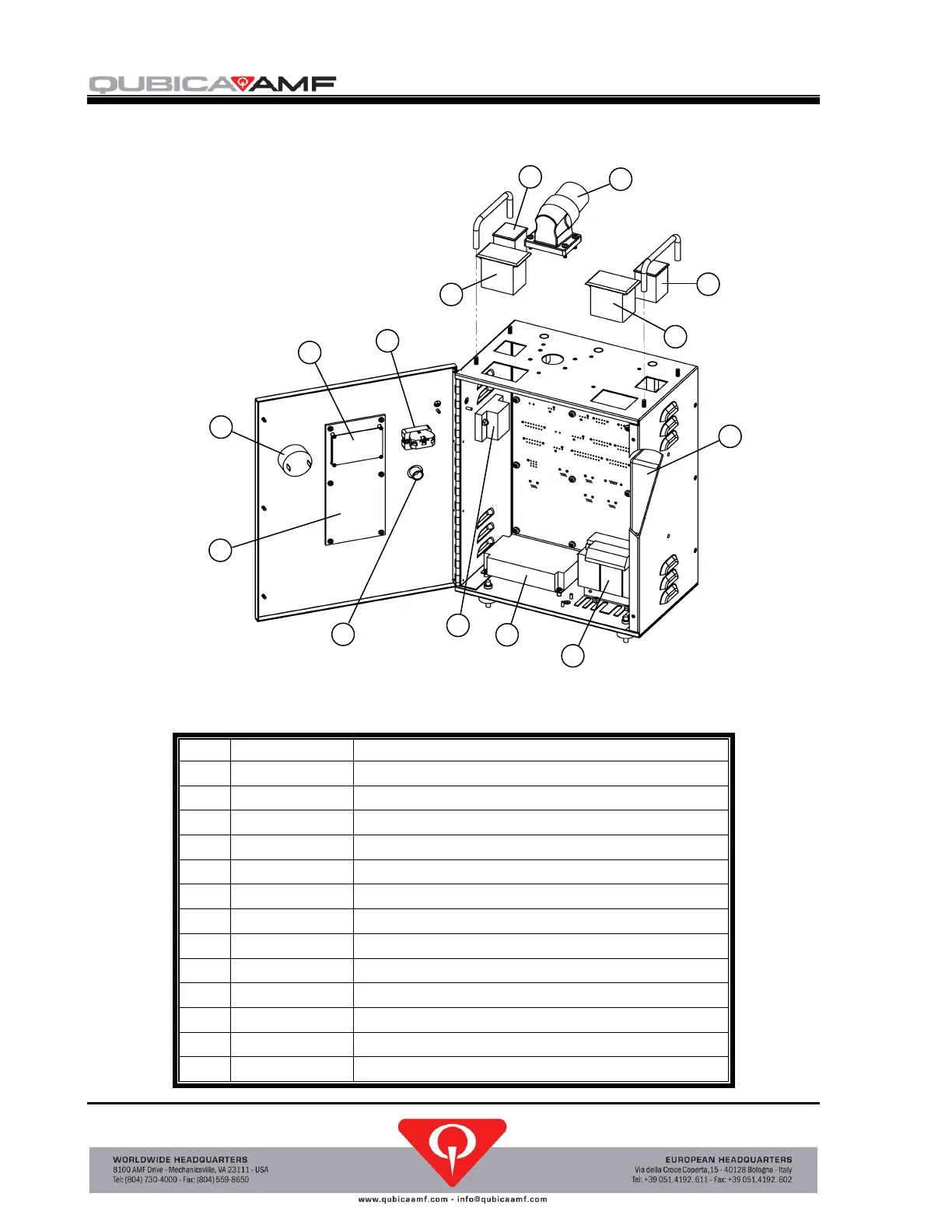

TMS CONTROLLER COMPONENTS
TMS CONTROLLER COMPONENTS
Item
Part Number
Description
1
051-000-022
E-STOP RESET BUTTON
2
051-000-015
KEYPAD
3
051-000-023
BUZZER
4
051-000-019
LCD DISPLAY
5
051-000-021
E-STOP BUTTON ASSEMBLY
6
051-000-037
CIRCUIT BREAKER, 5A
7
051-000-039
CIRCUIT BREAKER SWITCH, 5A
8
051-000-025
POWER INLET, 3 POLE, 220V
9
051-000-038
CIRCUIT BREAKER SWITCH, 3A
10
051-000-030
EMI FILTER, 250VAC, 12A
11
051-000-032
LINE REACTOR, 250VAC, 11.6A
12
051-000-040
POWER SUPPLY
13
051-000-031
POWER DISTRIBUTION BLOCK, 600V, 70A
1
2
3
4
5
6
7
8
9
6
10
11
12
13
