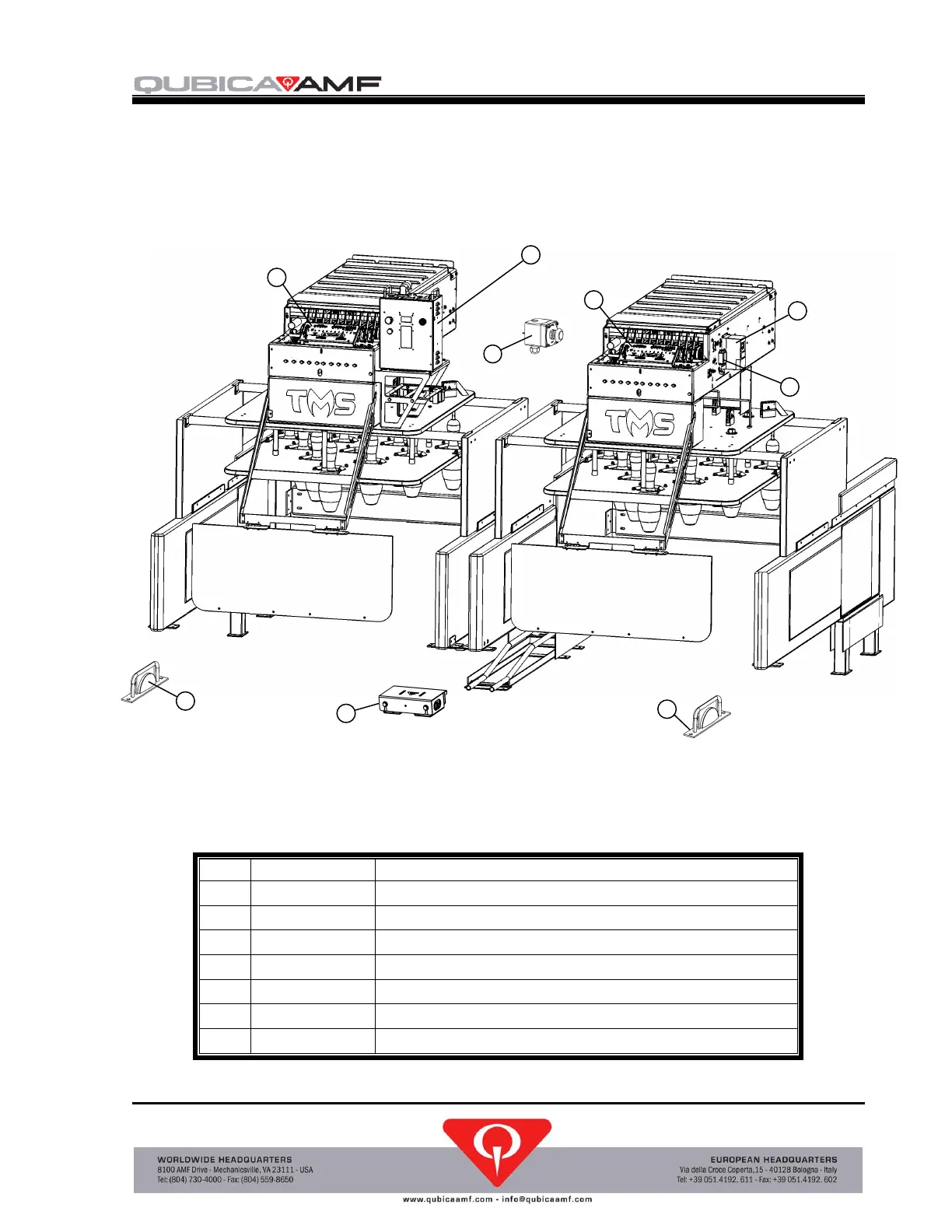

Electronic Components
Electronic Components Parts List
Item
Part Number
Description
1
051-000-001T
TMS CONTROLLER
2
051-040-002
PIN DETECTOR BOARD ASSEMBLY
3
051-090-015
DRIVE MOTOR CONTROLLER (PROGRAMMED)
4
051-010-024
EMI LINE FILTER
5
088-000-230
BALL DETECTOR ASSEMBLY
6
051-090-018
REFLECTOR ASSEMBLY
7
051-090-020
EXTERNAL E-STOP ASSEMBLY
1
2
2
3
4
6
6
5
7
