TMS STRING PINSPOTTER OWNER’S MANUAL
400-051-010-01 Rev. Date: 6/17 Page 5-27

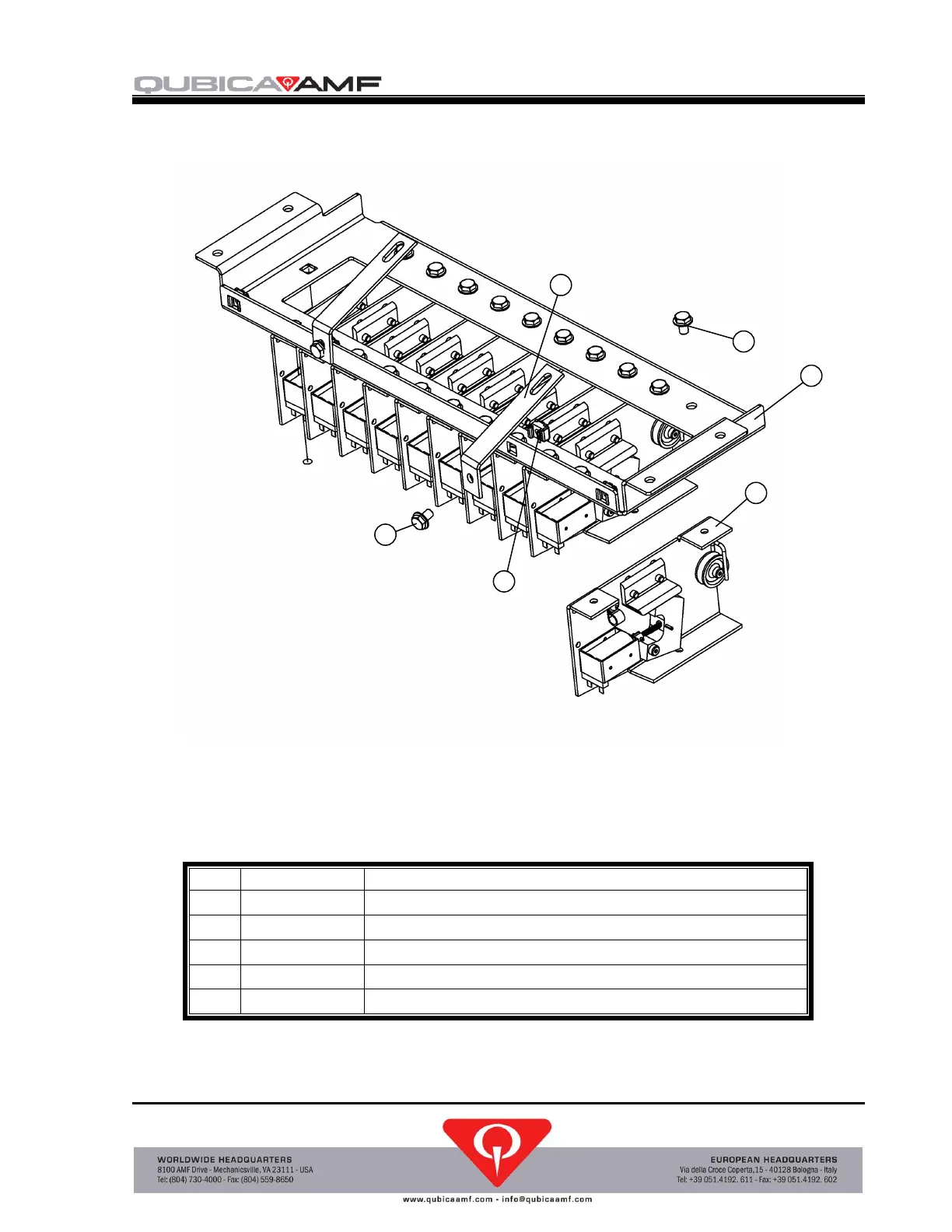

Pin Brake Array
Pin Brake Array Parts List
Item
Part Number
Description
1
051-020-013
PIN BRAKE PANEL
2
051-090-000
PIN BRAKE ASSEMBLY
3
9102221
CONTROLLER BRACKET
4
801-757-081
SCREW, HEX, WASHER HEAD, 5/16-18 x ½, BLACK
5
833-200-012
CAGE NUT, 5/16-18
1
2
3
4
4
5
