TMS STRING PINSPOTTER OWNER’S MANUAL
400-051-010-01 Rev. Date: 6/17 Page 5-3
Safety Covers

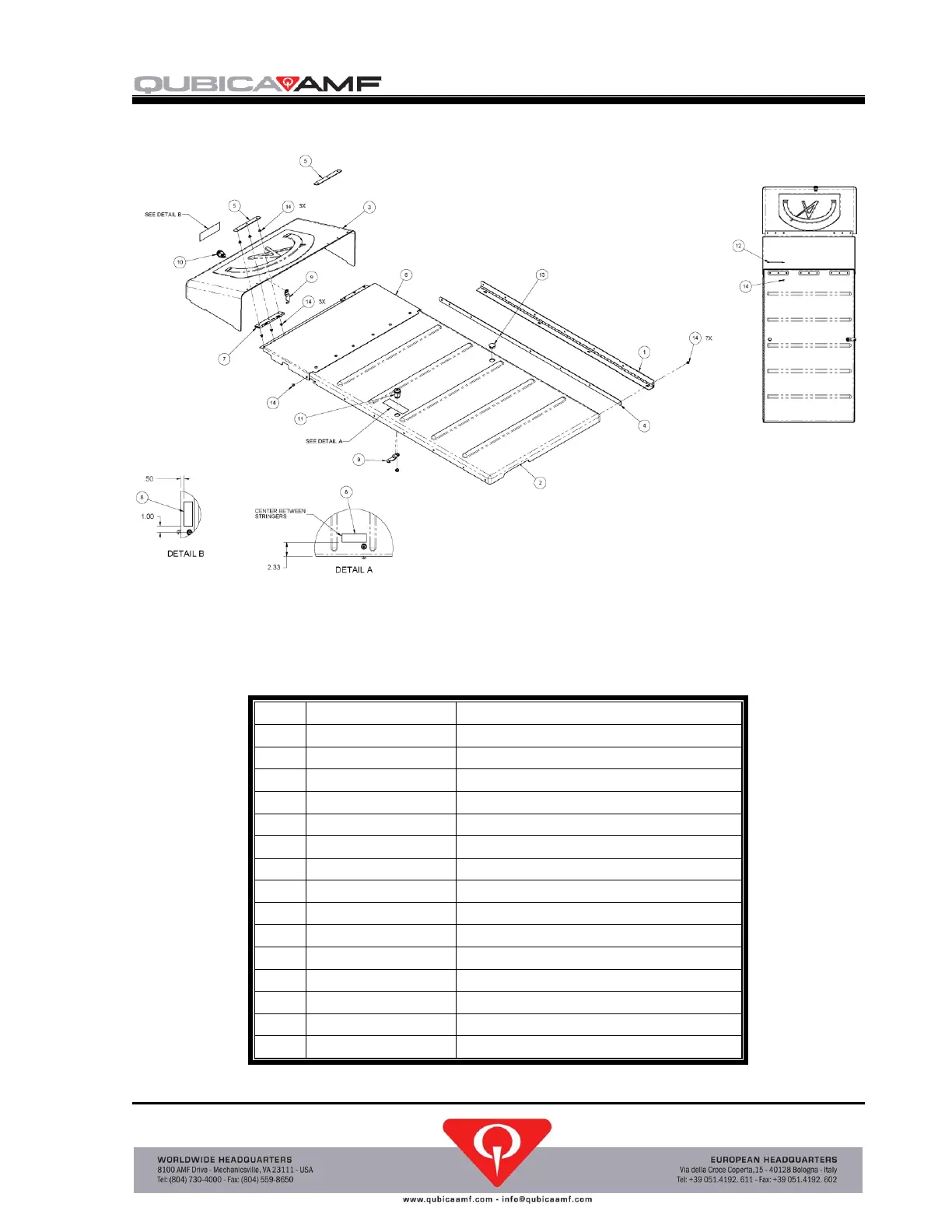

051-090-021 – Odd TMS Top Cover Assembly
Item
Part Number
Description
1
051-070-011
TOP COVER HINGE
3
051-070-013
TMS LOCKING TOP COVER
2
051-070-014
TMS LOCKING FRONT COVER
4
051-070-008
TOP COVER HINGE BRACE
5
051-070-009
FRONT COVER HINGE BRACE
6
051-070-003
SPRING COVER PANEL
7
051-070-002
SELF OPENING SPRING HINGE
8
051-070-007
MECHANICAL HAZARD LABEL
9
051-070-006
CAM LOCK
10
051-070-004
FRONT COVER LOCK
11
051-070-012
TOP COVER LOCK
12
051-070-015
COVER RETAINER LANYARD
13
719-024-010
BLACK PLUG
14
7108-401800-050
0.19 X 0.43 ALUMINUM RIVET
15
051-070-005
KEY LOCK
