TMS STRING PINSPOTTER OWNER’S MANUAL
400-051-010-01 Rev. Date: 6/17 Page 5-25

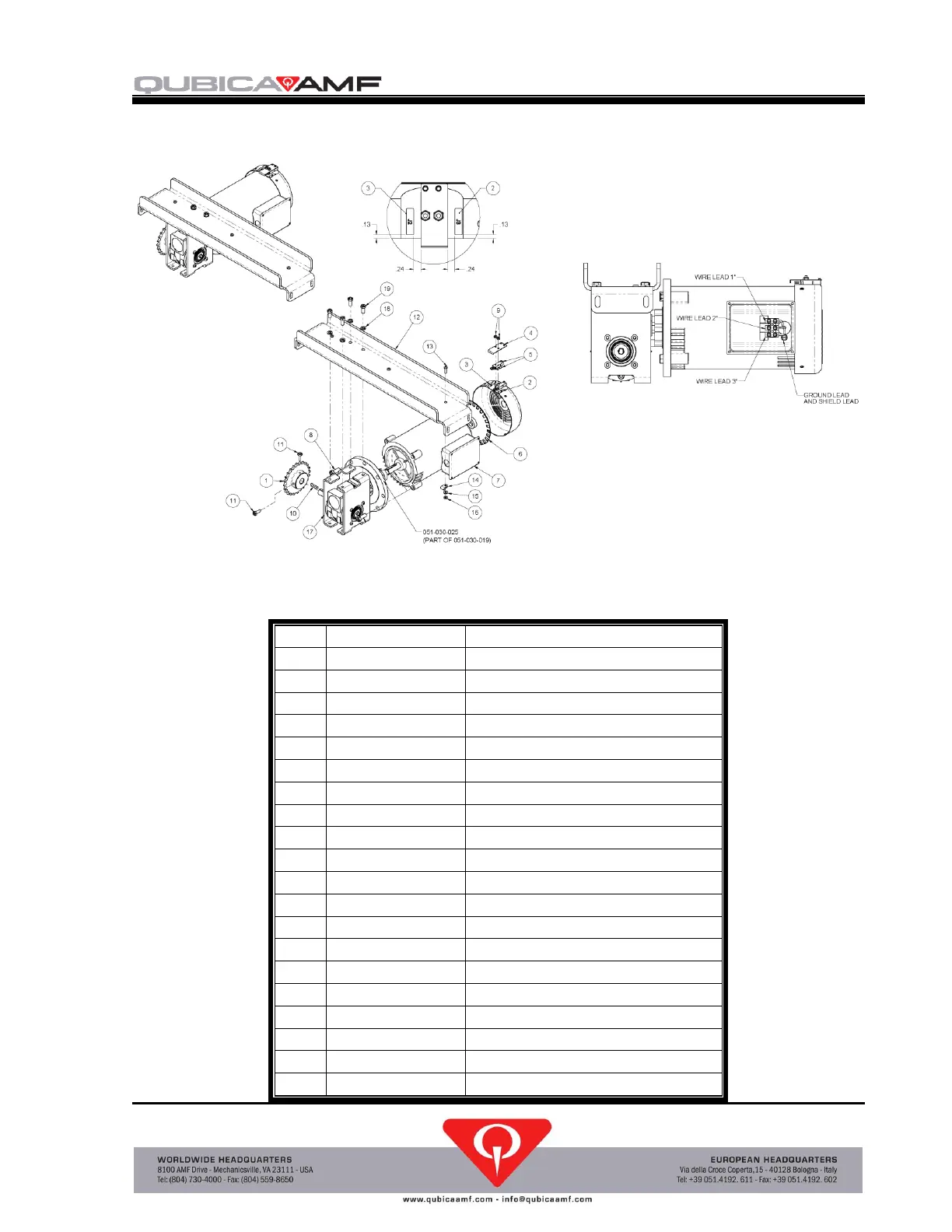

Motor, Reduction Gear, & Encoder Assembly
Motor, Reduction Gear, & Encoder Assembly Parts List
Item
Part Number
Description
1
9102292
SPROCKET
2
051-010-030
J3 ENCODER LABEL
3
051-010-029
J2 ENCODER LABEL
4
302-2200-00
CONNECTION RETAINER
5
770-060-251
ENCODER OPTICAL SENSOR
6
051-030-002-01
MOTOR ENCODER ASSEMBLY
7
051-030-015
TMS DRAWBAR MOTOR
8
809-865-165
HHCS 3/8-16 X 1.00 GR8 PB
9
7036-000632-000
HLN 6-32 ZN NM
10
302-2410-00
KEY SQ 0.19 X 1.00 Q
11
809-849-125
HHCS 1/4-20 X 0.75 GR8 BO
12
051-020-026
DRAWBAR MOTOR BRACKET
13
7016-411032-075
PHPMS 10-32 X 0.75 ZN
14
744-107-016
CMP CBL 0.19 X 0.50 NY
15
7050-021050-006
FW 10 SAE ZN
16
7034-001032-000
HMSN 10-32 ZN
17
051-030-019
TMS GEARBOX
18
951-156-002
SWM 5/16 ANSI BO
19
809-857-125
HHCS 5/16-18 X 0.75 GR8 PB
20
7014-002520-050
SSS 1/4-20 X 0.50 CUP BO
