TMS STRING PINSPOTTER OWNER’S MANUAL

400-051-010-01 Rev. Date: 6/17 Page 5-26

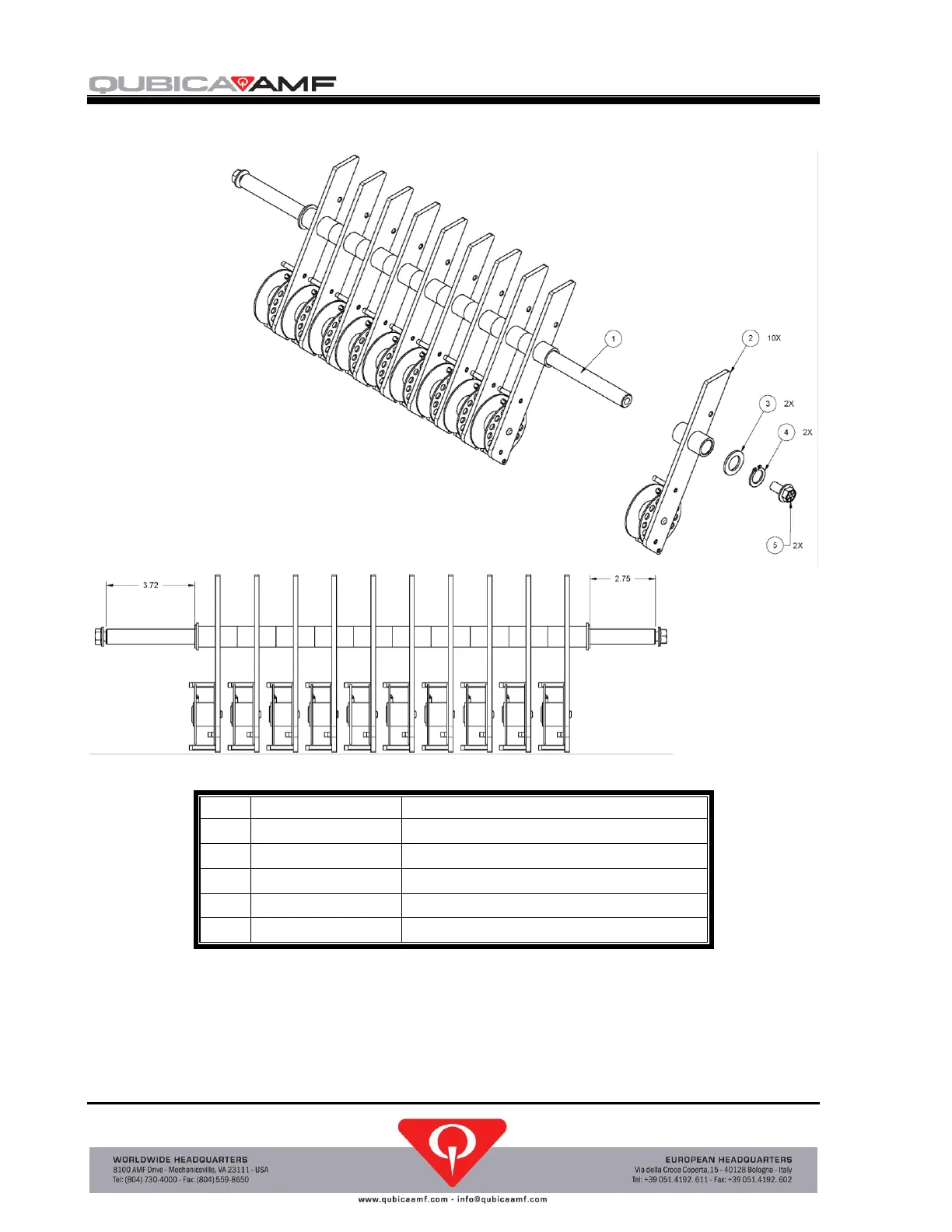

Reel Arm Assembly

Reel Arm Assembly Parts List

Item

Part Number

Description

051-090-025

REEL ARM SHAFT II

051-090-007

REEL ARM ASSEMBLY

948-884-187

FLAT WASHER, 11/16

7002-710000-062

5/8” EXTERNAL RETAINING RING

801-765-121

FBCS 3/8-16 X 0.75 GR8 BO
