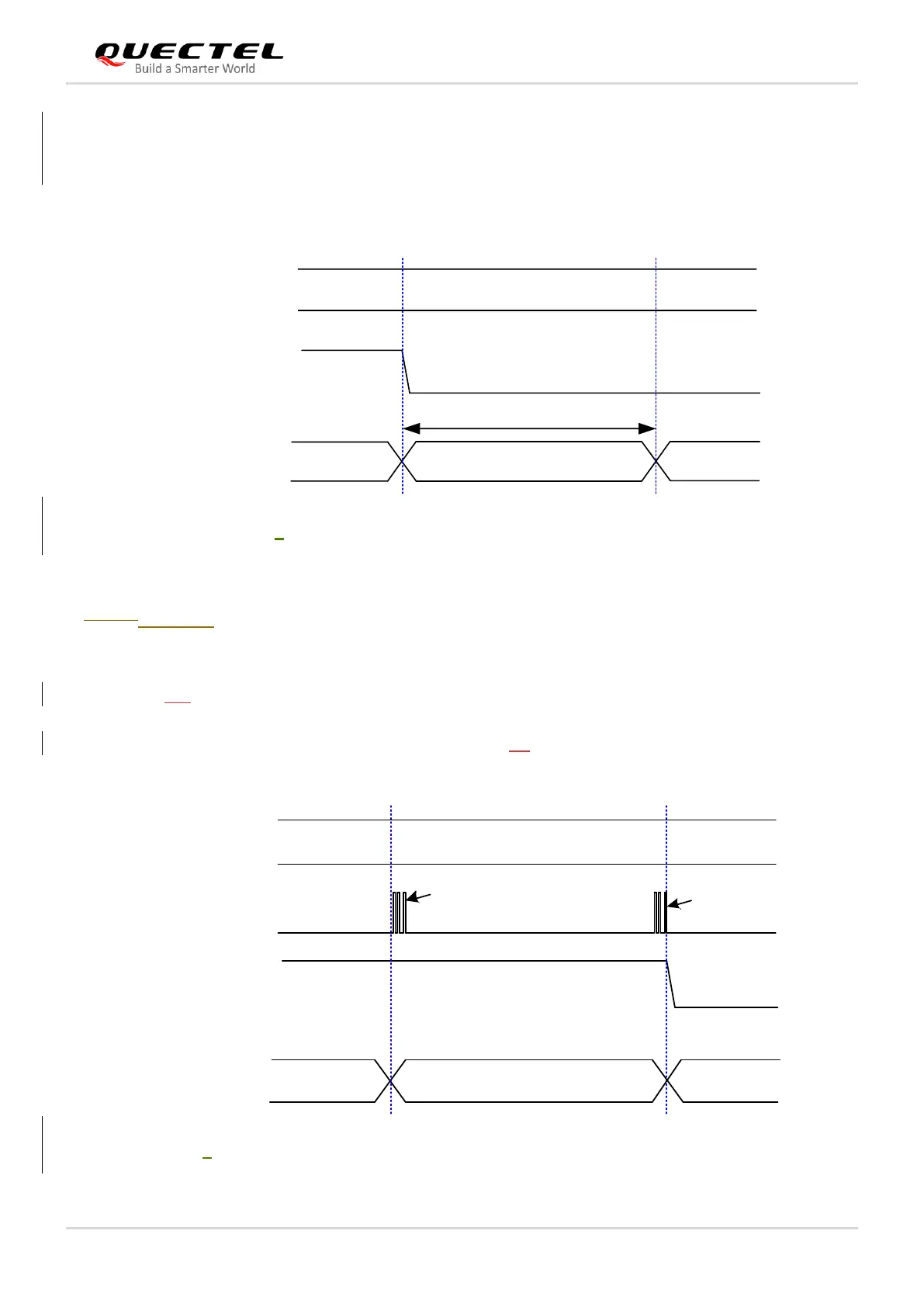

The timing of turning-off scenario is illustrated in the following figure.
VCC
FULL_CARD_POWER_OFF#
RUNNING OFF
Module Status
Power-off procedure
RESET_N(H)
≥10 s
Figure 8: Turn-off Timing through FULL_CARD_POWER_OFF#
3.4.2.2.3.5.2.2. Turn off the Module through AT Command
It is also a safe way to use AT+QPOWD command to turn off the module. For more details about the
command, see document [2].
The module is designed to be turned on with a host GPIO. Pull down FULL_CARD_POWER_OFF# pin
after the module’s USB/PCIe is removed. Otherwise, the module will be powered on again.
VCC
FULL_CARD_POWER_OFF#
RUNNING OFF
Module Status
Turn off procedure
RESET_N(H)
USB/PCIe
AT+QPOWD
USB/PCIe
removed
Figure 9: Turn-off Timing through AT Command and FULL_CARD_POWER_OFF#
