Quicksilver 805PH — Electrical Systems
49
Charge relay
Baery switch
A auto bilge breaker — 3 Amp
Forward auto bilge breaker — 3 Amp
Carbon monoxide breaker — 5 Amp
Trim tab breaker — 15 Amp
Black water pump breaker — 20 Amp
Electric toilet breaker — 20 Amp
Helm main breaker — 50 Amp
Fish Main breaker — 20 Amp
Windlass breaker — 60 Amp

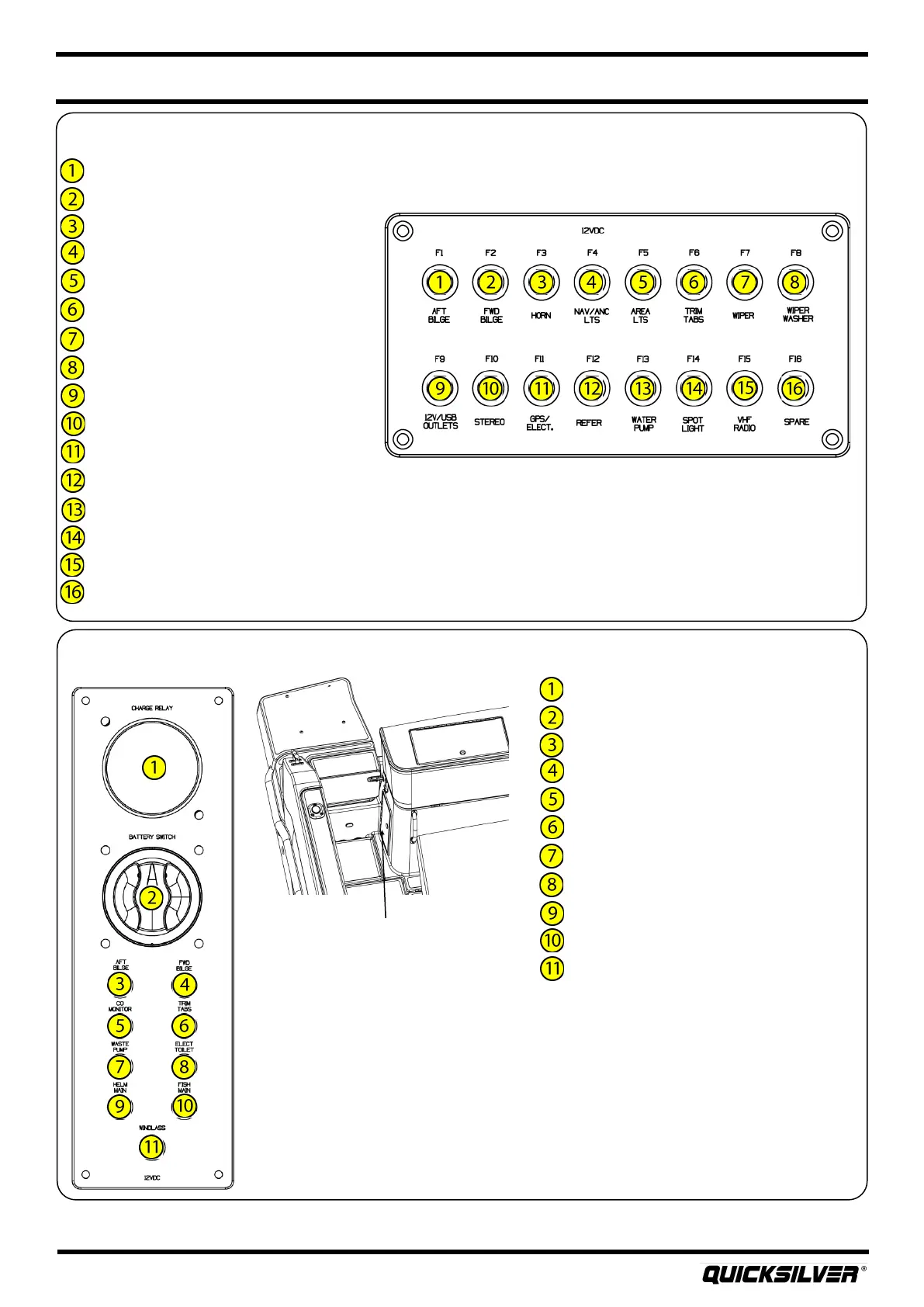

Baery Panel
Panel Locaon
DC Helm Panel
A bilge breaker — 3 Amp
Forward bilge breaker — 3 Amp
Horn breaker — 5 Amp
Navigaon lights breaker — 3 Amp
Area lights breaker — 5 Amp
Trim tab breaker — 3 Amp
Windshield wiper breaker — 10 Amp
Windshield washer breaker — 5 Amp
12V / USB outlet breaker — 5 Amp
Stereo breaker — 10 Amp
GPS / Electronics breaker — 10 Amp
Refrigerator breaker — 10 Amp
Water pump breaker — 10 Amp
Spot light breaker — 10 Amp
VHF radio breaker — 10 Amp
Spare breaker — 5 Amp
