3.1.3 New Deck Lead connector
Commencing August 2016, the receiver deck lead connection is being changed from the push-on
type to a locking ring design on a short lead (penetrator). Customers can request the push-on
connector, if desired, to meet with specialised installations. The receiver end of the cable is not
removable as in previous versions; it is permanently connected to the receiver.

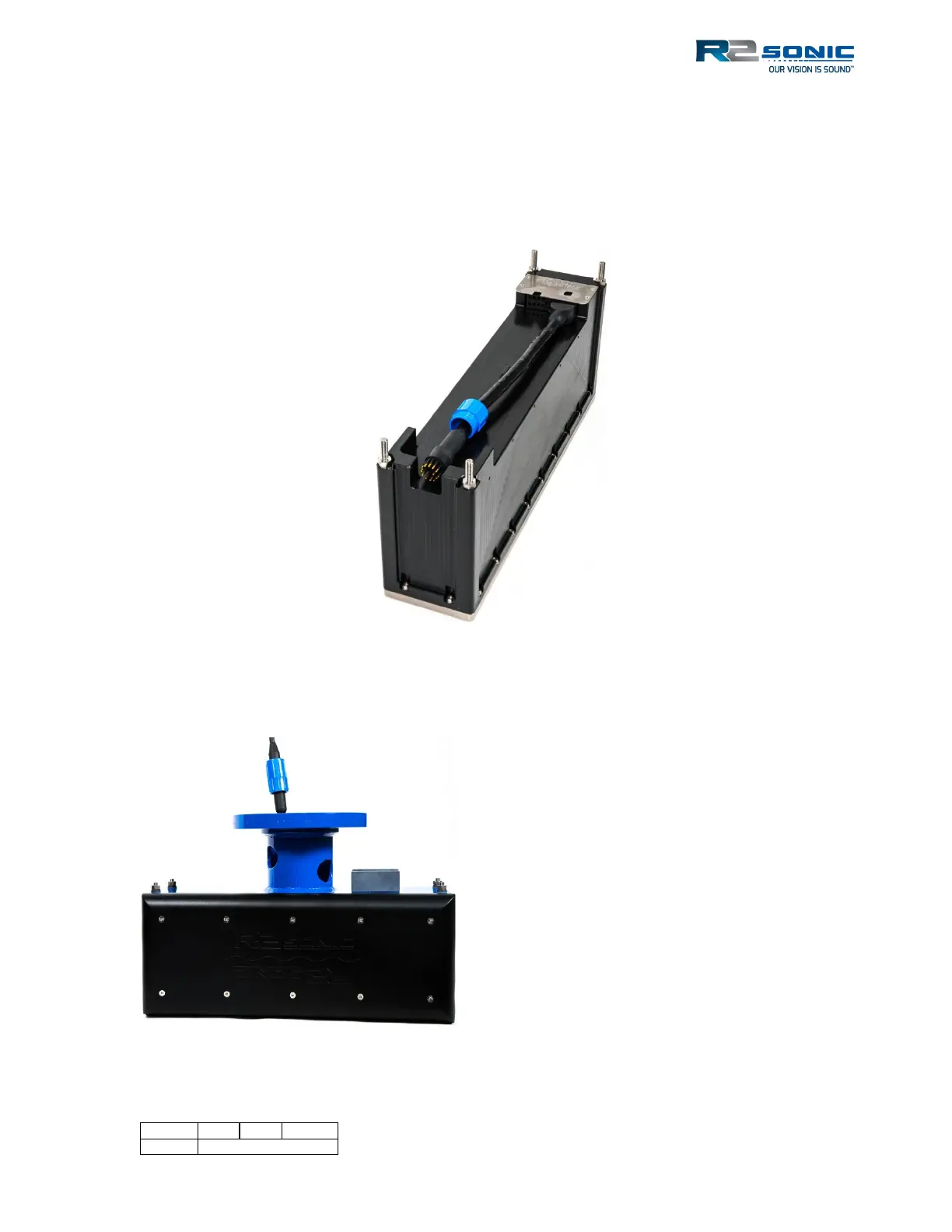

Figure 13: New cable penetrator with a locking ring
The new penetrator cable is run either up, through the flange, or through the access in the neck of
the mount. The decklead will connect to the penetrator.
Figure 14: Deck lead to penetrator connection
