R2Sonic 2024 - Figure 39: SIM IEC Mains Connection and Deck Lead Amphenol MS Connector; Figure 40: Wet End Connectors; Table 10: Deck Lead Pin Assignment (Gigabit Ethernet and Power)

Page 52 of 254
Version
6.3
Rev
r012
Date
05-11-2022
Part No. 96000001

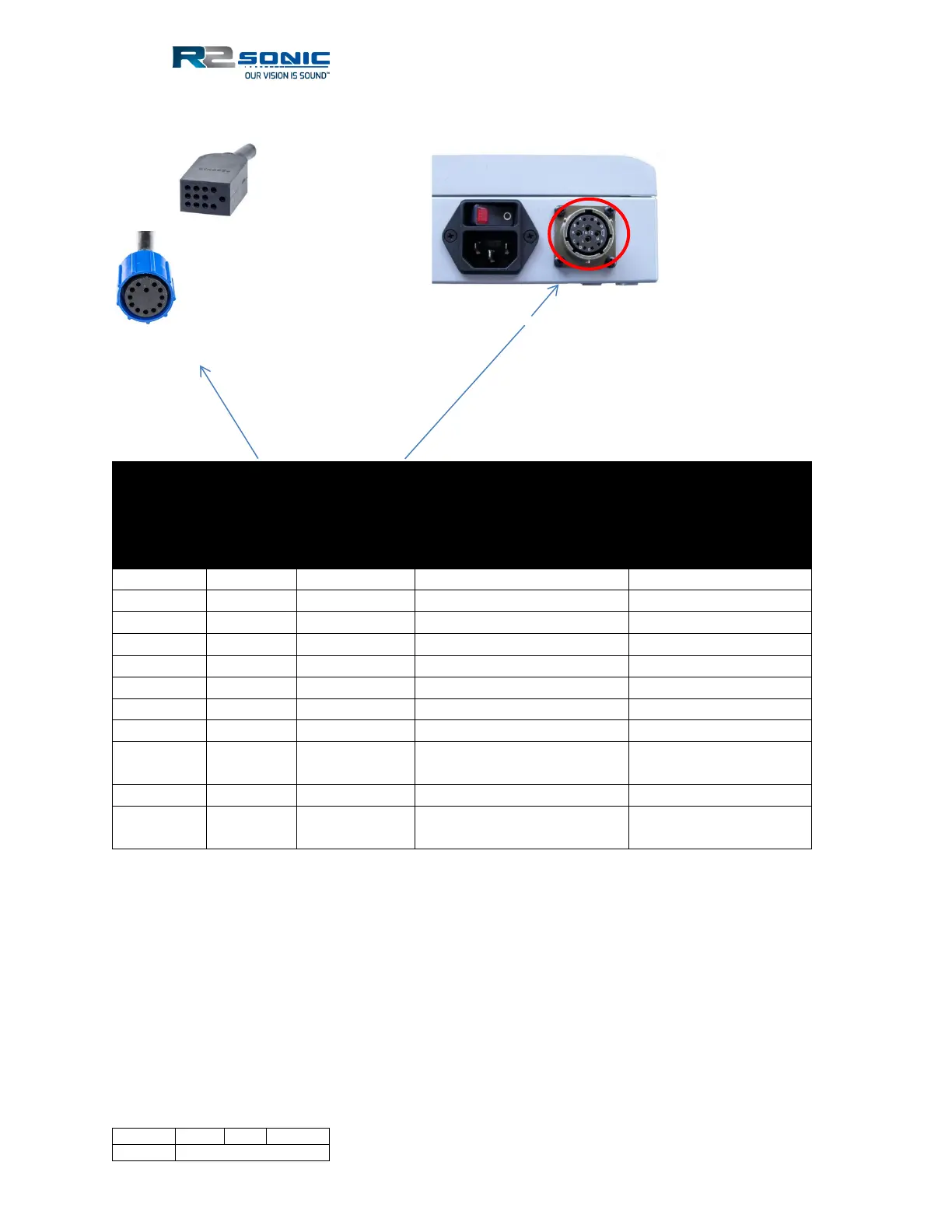

Figure 39: SIM IEC mains connection and deck lead Amphenol MS connector
Function
Wet
End
Pin
Number
Amphenol
Pin
Number
Pressure Rated Cable
(14mm/0.55”)
Wire Colour
Non-Pressure
Rated Cable
(10.2mm/0.40”)
Wire Colour
BI_DC+
4
A
Blue
Blue
BI_DC-
5
B
Black paired with Blue
Blue/White
BI_DB-
7
C
Green
Green
BI_DB+
8
D
Black paired with Green
Green/White
BI_DD-
11
E
Brown
Brown
BI_DD+
12
F
Black paired with Brown
Brown/White
BI_DA-
9
G
Orange
Orange
BI_DA+
10
H
Black paired with Orange
Orange/White
Data
Shield
6
n/c
Drain Wire
N/A
Power +
1
J,M
Orange, Yellow (#18AWG)
Orange (#18AWG)
Power
Return
2
K,L
Black, Blue (#18 AWG)
Black (#18AWG)
Table 10: Deck Lead Pin Assignment (Gigabit Ethernet and Power)
NB. The wet end pin assignment is the same for both types of connections.
Figure 40: Wet end connectors
