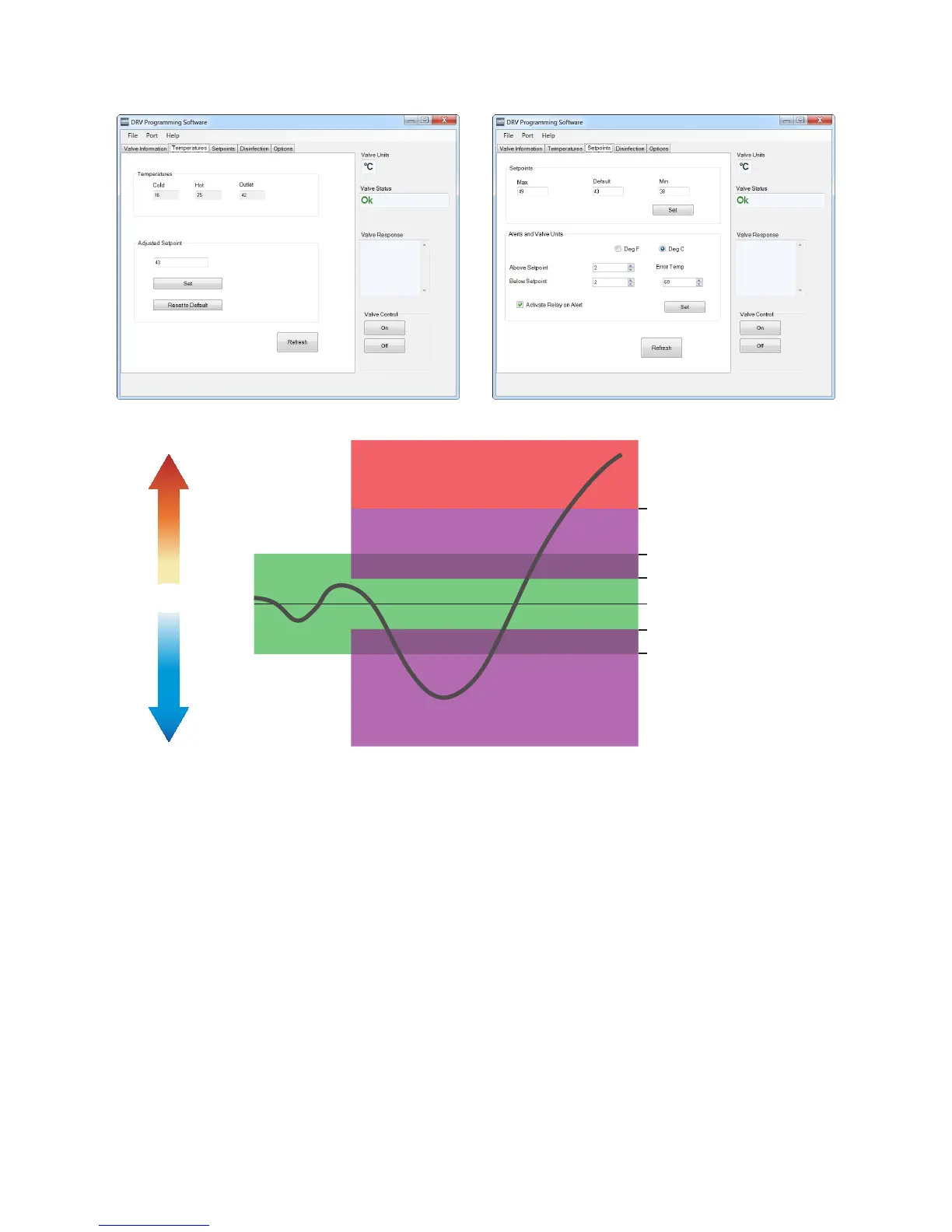

Example 2
Important! The 'Error Temp' value cannot be set lower than the sum of the
'Max.' + 'Above Setpoint' values.
Max.
Hot
Cold
45°C
(2°C ‘Above Setpoint’)
41°C (2°C ‘Below Setpoint’)
38°C
49°C
60°C ‘Error Temp.’
Min.
Setpoint
43°C ‘Setpoint’
M
I
X
E
D
T
E
M
P
E
R
A
T
U
R
E
F
L
U
C
T
U
A
T
I
O
N
ALERT
SHUT DOWN
TO FULL COLD
ALERT
Note! The 'Adjusted Setpoint' value does not need to be the same as the 'Default'
value. Both 'Adjusted Setpoint' and 'Default' can be set within the 'Max.' and
'Min.' range only.
