Preset Display Alerts
The DRV40 is supplied with two Preset Display Alert levels:
Level 1 - Alert preset: 2°C 'Above Setpoint' DRV40 will display 'Temp High'
preset: 2°C 'Below Setpoint' DRV40 will display 'Temp Low'
Level 2 - Error preset: 6°C above default setpoint DRV40 will display 'Error
Temp' and switch to full cold
Max.
Hot
Cold
45°C
(2°C ‘Above Setpoint’)
41°C (2°C ‘Below Setpoint’)
38°C
49°C ‘Error Temp.’
Min.
Setpoint
43°C ‘Setpoint Default’
M
I
X
E
D
T
E
M
P
E
R
A
T
U
R
E
F
L
U
C
T
U
A
T
I
O
N
ALERT
SHUT DOWN
TO FULL COLD
ALERT
Temp Low 41˚C
Setpoint 49˚C
Temp High 45˚C
Setpoint 49˚C
Temp High 49˚C
Error Temp
Important!
'Error Temp' can also indicate the need for maintenance.
(See 'DRV40 Display Errors' for further details.)

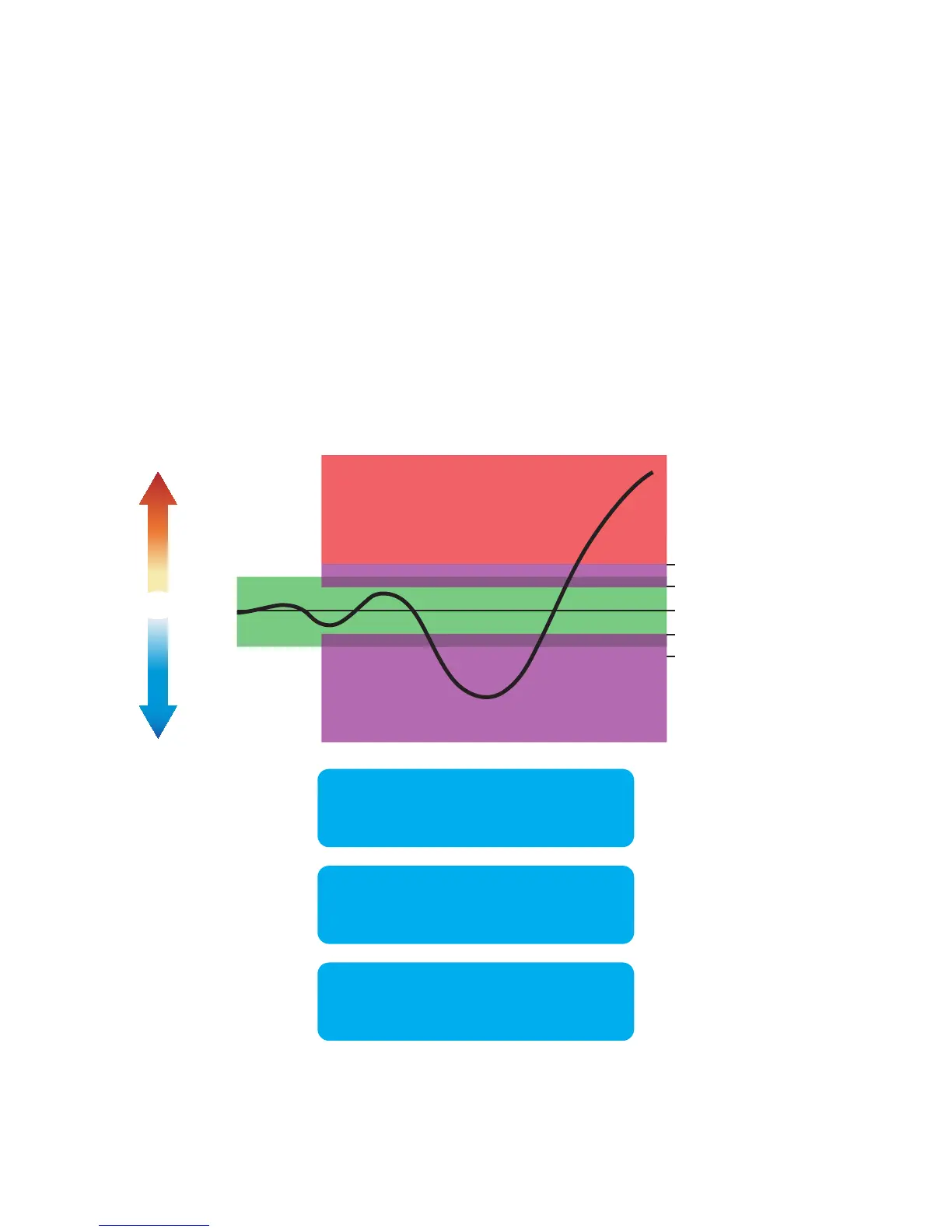

Example 3
If the 'Adjusted Setpoint' is set to 43ºC, the alerts would operate in the following
way...
