DRV

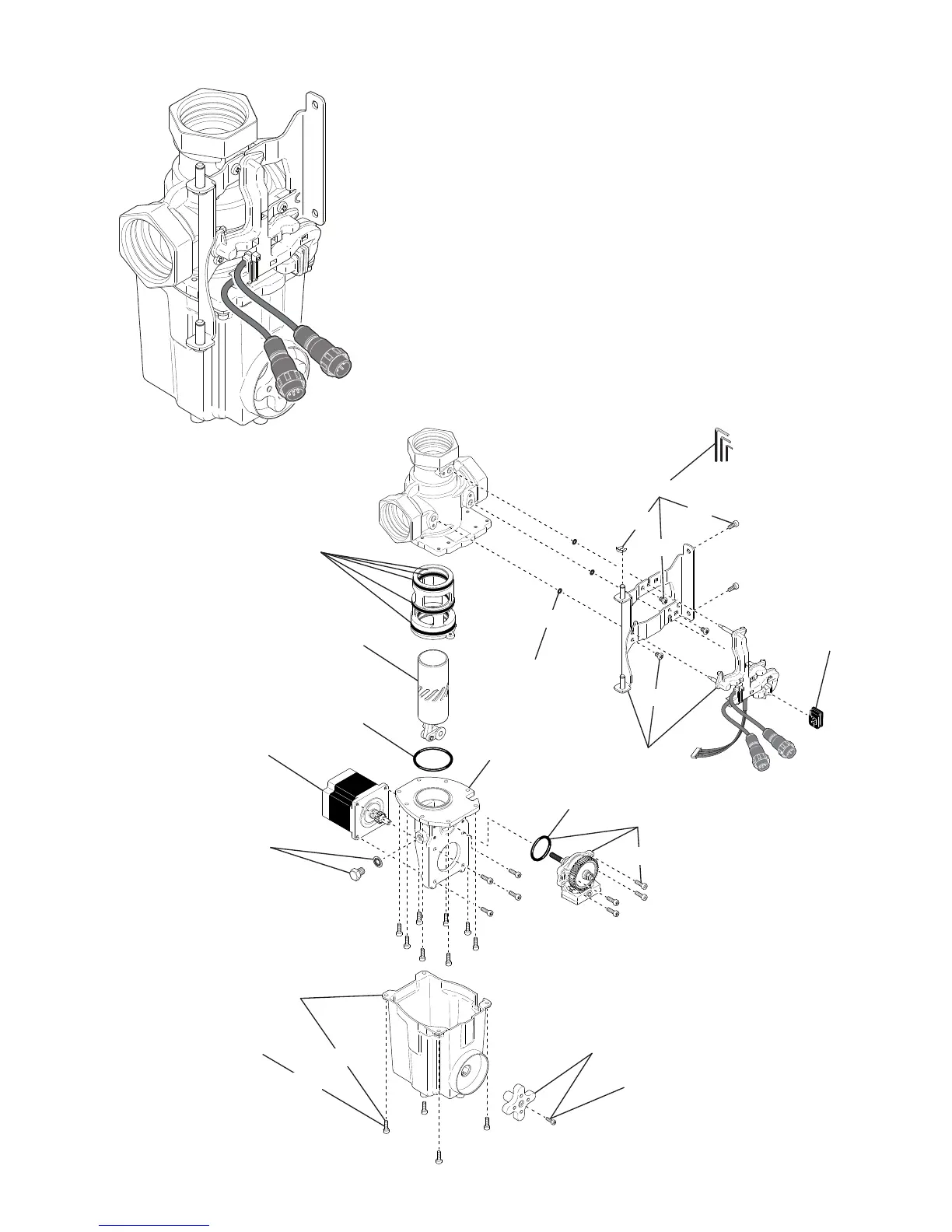

DRV40 DRV Spare Parts
1793.207 Motor Cover
1793.208 Magnetic Rotor
1793.209 Stepper Motor
1793.210 Cable Loom Assembly
1793.211 Proportioning Assembly
1793.212 Drive Housing
1793.213 Gear Drive Assembly
1793.214 Drain Plug
1793.215 Seal Pack
1793.245 Screw Pack
1793.209
1793.214
1793.207
1793.208
x4
1793.245
x20
1793.211
1793.215
1793.215
1793.210
1793.215
x3
1793.245
1793.210
1793.215
1793.212
x2
x2
x3
x3
1793.215
1793.245
1793.213
x4
