Transmitter Li-ion battery pack
To recharge the battery pack, remove the pack from the
transmitter and connect the transmitter battery charger.

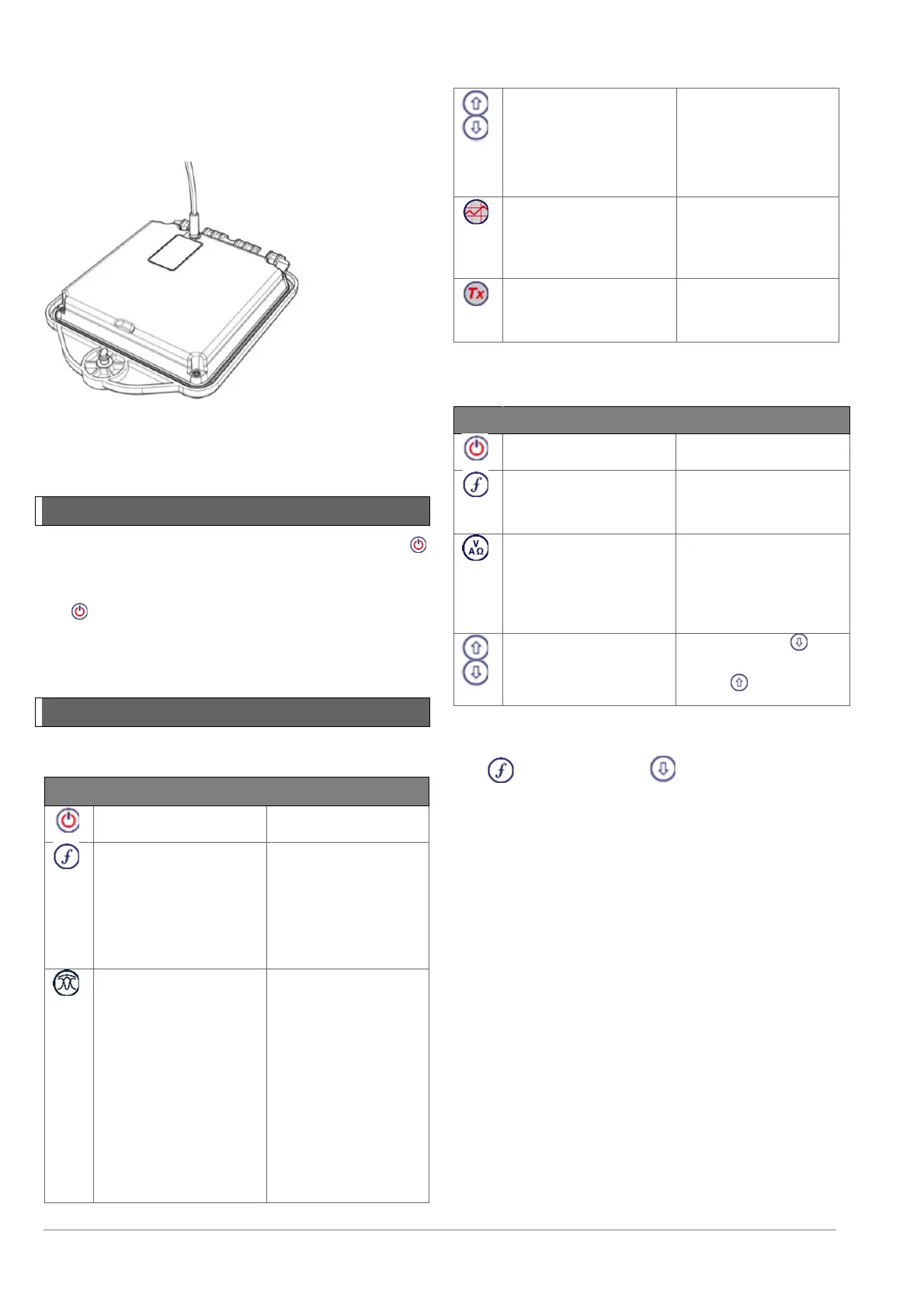

Figure 4.13 Charging the transmitter Li-Ion battery pack
For more information about recharging batteries refer to
the instructions that came with your charger
4.2 Power on / off
Switch the locator or transmitter on by pressing the
key.
To switch the locator or transmitter off, press and hold
the key until the screen blanks off.
NOTE: The locator will automatically power off after 5
minutes if no keys are pressed.
4.3 Keypad actions & shortcuts
Locator key actions
Key Short press Long press
Enter the menu Switch power off
Scroll through locate
frequencies from low
to high
In active locating:
SideStep (see ‘iLOC’
section)
When using Current
Direction™:
Perform a CD Reset
When using active
frequencies:
Toggle Peak, Peak+,
Null, Broad Peak and
Guidance antenna
modes.
In Power Mode:
scroll through Power
Filters™ for improved
discrimination of
parallel or strong
power signals
In Peak+ antenna
mode:
Switch between
Guidance and Null
arrows
Increase and
decrease gain.
RD8100 automatically
sets gain to mid-point
when pressed
Rapidly increase and
decrease gain steps
in 1dB increments
Take a survey
measurement and
send over Bluetooth if
paired
-
Send an iLOC
command to a paired
transmitter
Enter the transmitter
power setting menu
for use over iLOC
Table 4.1: Locator key actions
Transmitter key actions
Key Short press Long press
Enter the menu Switch power off
Scroll through locate
frequencies from low
to high
-
Take voltage and
impedance
measurements using
selected frequency
Take voltage and
impedance
measurements at a
standardized
frequency
Adjusts the output
signal
Select standby /
maximum standard
power
Table 4.2: Transmitter key actions
NOTE: to scroll through frequencies from high to low,
hold while pressing the button (applies to both
locators and transmitters).
