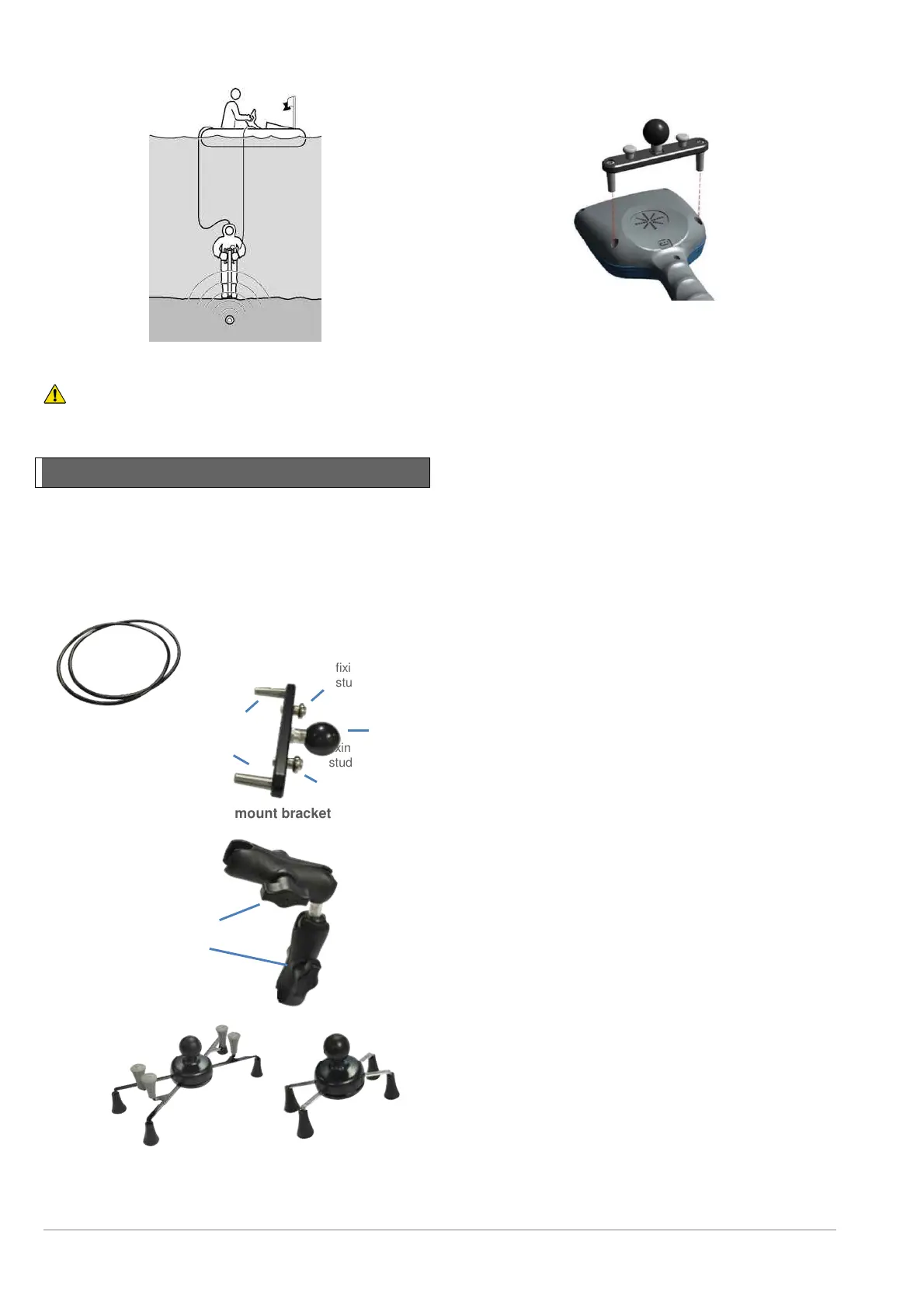

Figure 13.14: Using a submersible antenna
WARNING! Only properly licensed and experienced
divers should attempt to use the submersible antenna.
13.9 Phone/Tablet mount
When using a mobile device running a compatible
application, such as RD Map for Android, you can use
the Phone or Tablet mount to conveniently hold your
device next to the locator and have immediate visual
feedback on the survey measurement points you are
marking.
Figure 13.13: Phone/tablet mount kit
To use the mobile device mount:
Figure 13.14: Bracket positioning
1 Insert the mount bracket locating pins in the
mounting holes at the back of the locator screen
2 Secure the rubber o-ring around either of the 2 fixing
studs and loop it around the locator handle
rubber o-ring
mount bracket
arm bracket
hand tightening bolts
fixing
stud
arm
support
ball
fixing
stud
locating
pins
phone holder
tablet holder
