RADIOLINK ELETRONIC LIMITED
www.radiolink.com
28
done to get a “fresh start and clear the memory before inputting new model settings.

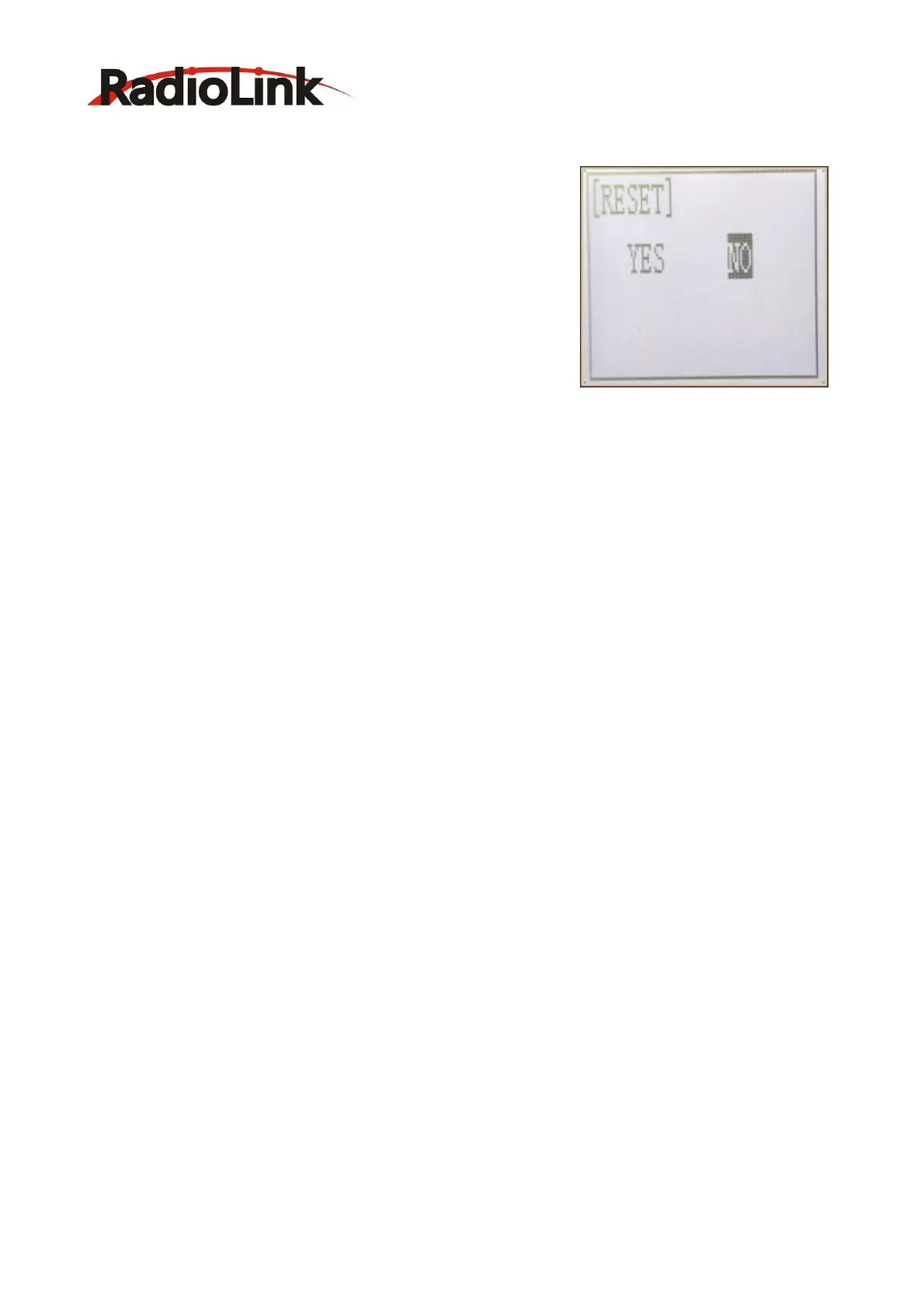

(1) Enter the function menu and use “Dec(-)” or “Inc(+)”
button to access RESET function.
(2) Press “Enter button to get into RESET function interface,
the symbol YES” will blink.
Be sure to reset
Press “Enter key, the symbol YES” will stop blinking, and
return to the initial screen. Now the model data is reset to the
initial setting that is the default value set at the factory.
Not to reset
Press “Dec(-)” or “Inc(+)” button, the symbol “YES will stop
blinking and the symbol “NO” will blink, press “Enter key, the symbol “NO will stop blinking,
return to the initial screen by pressing “Exit” button twice.
Or you can press Exit” button twice to quit resetting directly.
CAUTION: Resetting the current model memory will permanently erase ALL programming
information for that model. The data cannot be recovered. Do not reset the model unless you are
certain you want to clear-out that memory and start from scratch.
Thank you again for using our product, we hope it can bring you happiness!

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the RadioLink RC6GS and is the answer not in the manual?

RadioLink RC6GS Specifications

General IconGeneral
Channels6
Frequency2.4GHz
Model Memory10 models
TelemetryYes
Spread SpectrumFHSS
Channel Bandwidth400KHz
Modulation ModeGFSK
Low Voltage AlertYes
Antenna Length106mm
DisplayLCD
Range600 meters
Power Supply2S LiPo
CompatibilityR8EF, R8FM, R8F receivers
Model TypeCar, Boat
Operating Voltage4.8 - 15V DC
Screen128x64 LCD
Max Range600m
ReceiverR7FG
