RadioLink RC6GS User Manual

RADIOLINK ELETRONIC LIMITED
www.radiolink.com
4
3. Pistol Grip Control System
RC6GS, transmitter with chip STM32F103RB, receiver R6FG/R6F with 32 bits industrial chip, 12ms only
from transmitter to the receiver, thus provide control synchronous and performance perfect.
The same FHSS spread spectrum and 67 channels pseudo random frequency sequence hopping of
AT9S makes RC6GS have superior anti-interference ability both at the same frequency band and
different frequency bands.
Control distance is up to 400 meters.

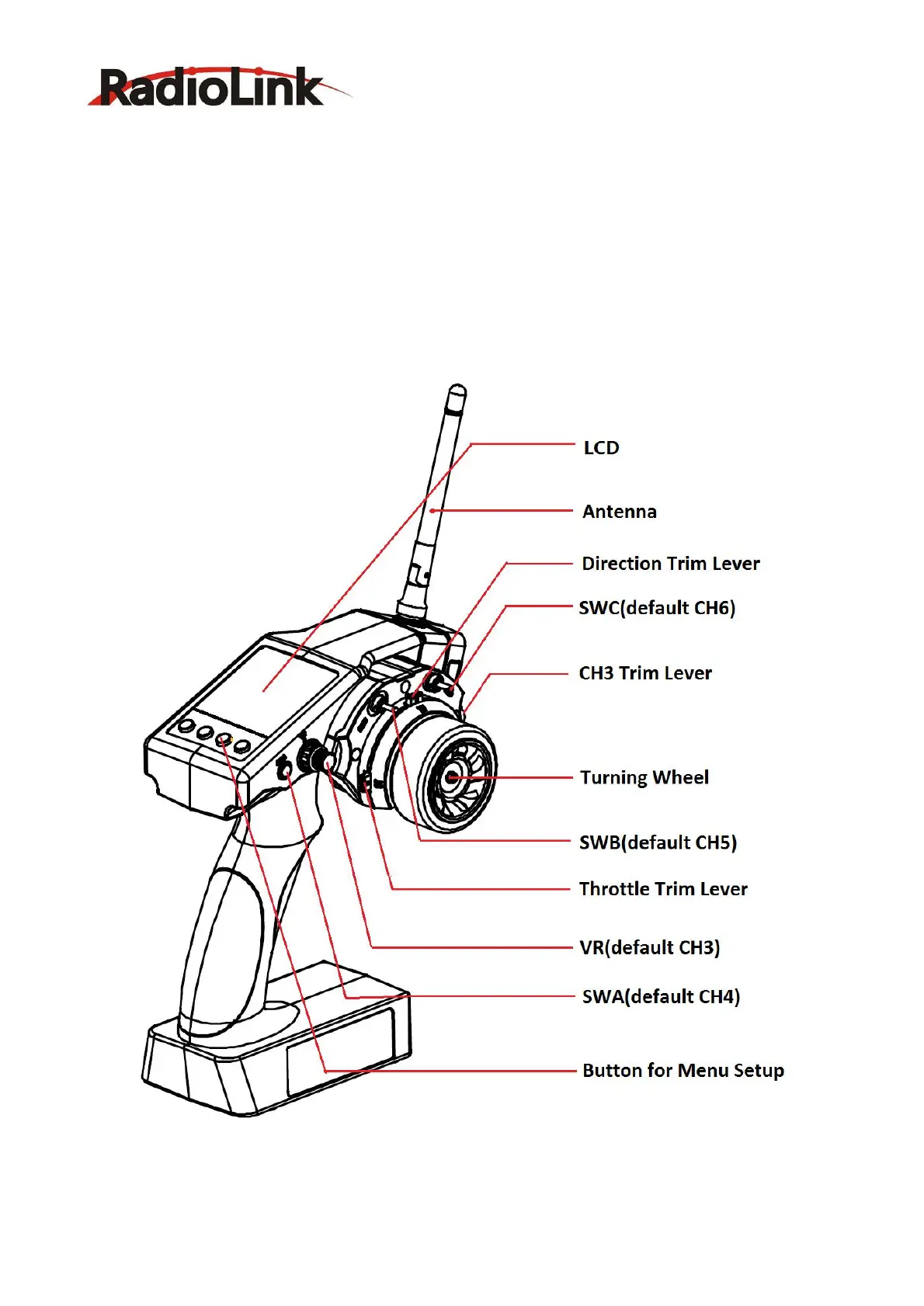

3.1 Transmitter

RadioLink RC6GS Specifications

General

Channels	6
Frequency	2.4GHz
Model Memory	10 models
Telemetry	Yes
Spread Spectrum	FHSS
Channel Bandwidth	400KHz
Modulation Mode	GFSK
Low Voltage Alert	Yes
Antenna Length	106mm
Display	LCD
Range	600 meters
Power Supply	2S LiPo
Compatibility	R8EF, R8FM, R8F receivers
Model Type	Car, Boat
Operating Voltage	4.8 - 15V DC
Screen	128x64 LCD
Max Range	600m
Receiver	R7FG
