RadioLink Electronic Ltd
www.radiolink.com
6
Specification:
1) Channels: 8 channels
2) Working voltage: 4.8-10V
3) Working current: 30mA（input voltage:
5V）
4) Size: 48.5*21*11mm
5) Weight: 7g
6) 2048 section precision, 0.5us per
section, servo anti-shake rudder.
7) Control distance: about 500m ground
and 1000m air, actually control distance depends on the environment.
Two signal working mode:

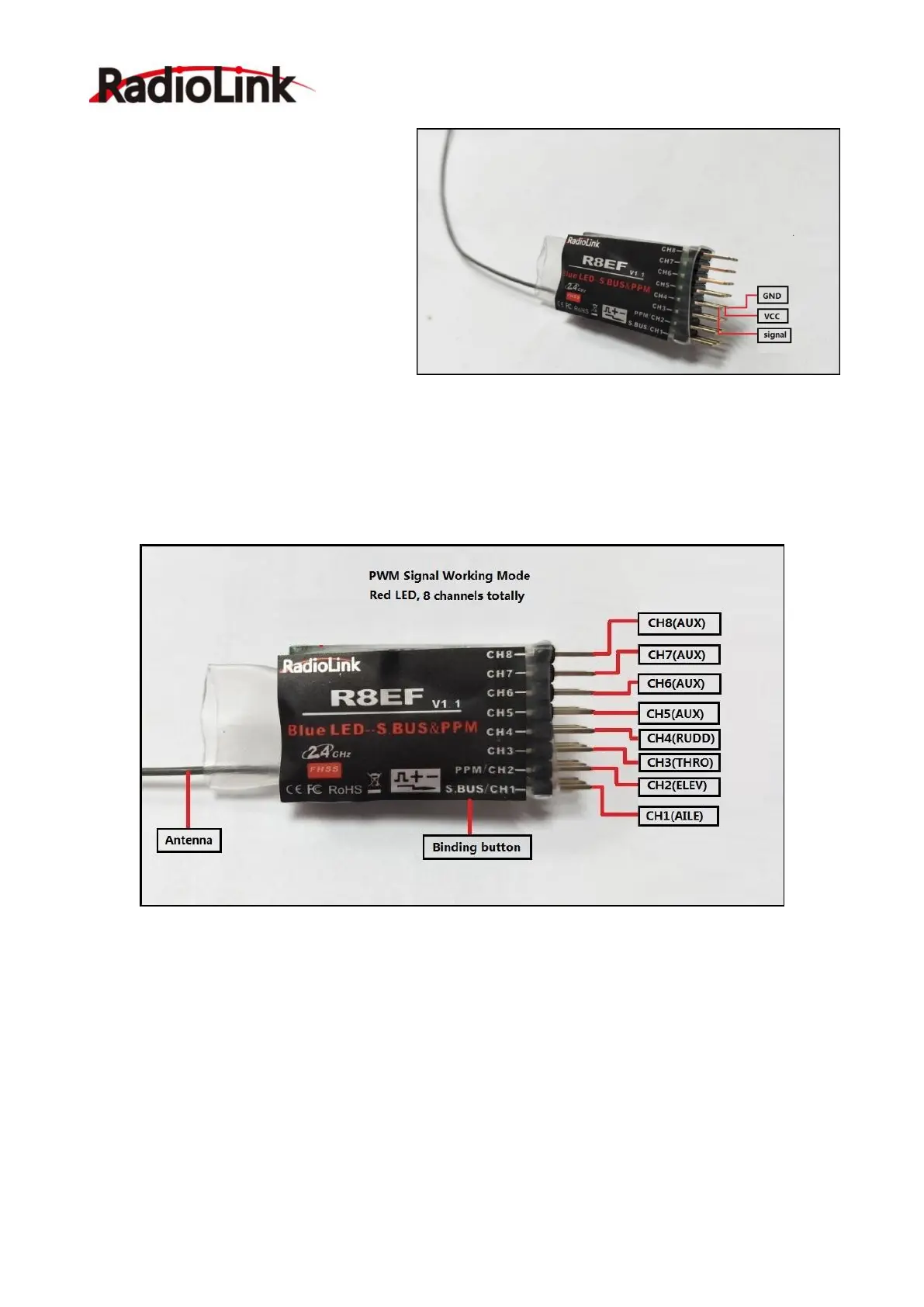

(1) PWM signal output working mode：
Red LED indicates PWM signal output, 8 channels totally.
(2) S-BUS&PPM signal output working mode:
Blue/purple LED indicates SBUS&PPM signal output, 8 channels totally. When at this mode, SBUS and
PWM signal are working synchronously. CH1 output S-BUS signal, CH2 output PPM signal, CH3 to
CH8 output PWM signal at the same time.
