RadioLink t8fb Instruction Manual

RadioLink Electronic Ltd
www.radiolink.com
7

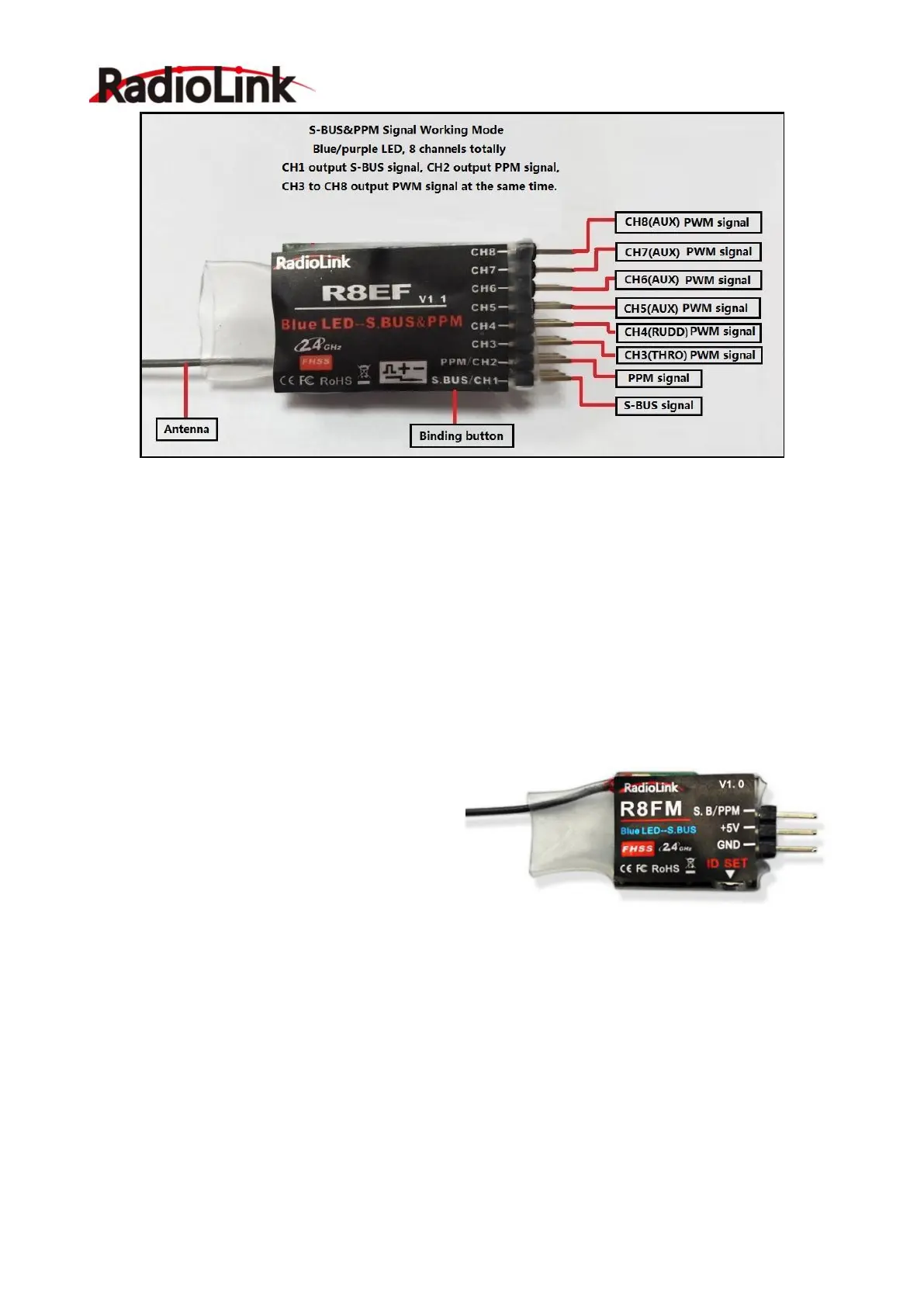

S-BUS&PPM and PWM signal change:
Quickly press the ID SET switch two times within 1 second, the signal will be changed from PWM to
S-BUS&PPM. The red LED indicates the PWM mode while blue/purple LED indicates S-BUS&PPM
mode.
MINI Receiver R8FM
T8FB is also compatible with 2.4G 8 channels supper mini receiver R8FM, which support S-BUS and
PPM signal working at the same time, supper mini size, is designed for racing drone.
Specification:
1) Channels: 8 channels
2) Working voltage: 4.8-6V
3) Working current: 30mA（input voltage: 5V）
4) Size: 16.0*21.5*1.0mm
5) Weight: 2.5g
6) 2048 section precision, 0.5us per section,
servo anti-shake rudder.
7) Control distance: about 500m ground and
1000m air, actually control distance depends on the environment.
S-BUS&PPM signal change:
Quickly press the ID SET switch two times within 1 second, the signal will be changed from PWM to
S-BUS&PPM. The red LED indicates the PWM mode while blue/purple LED indicates S-BUS&PPM
mode.

RadioLink t8fb Specifications

General

Channels	8
Frequency	2.4GHz
Modulation	FHSS
Spread Spectrum	Yes
Output	PPM
Compatibility	R8EF, R8FM
Battery	4 x AA batteries
Power Supply	4 x AA batteries
