23
The specific value is the amount of servo travel range when the corresponding channel
performs the aileron or elevator operation. Positive and negative values represent different
directions of movement.

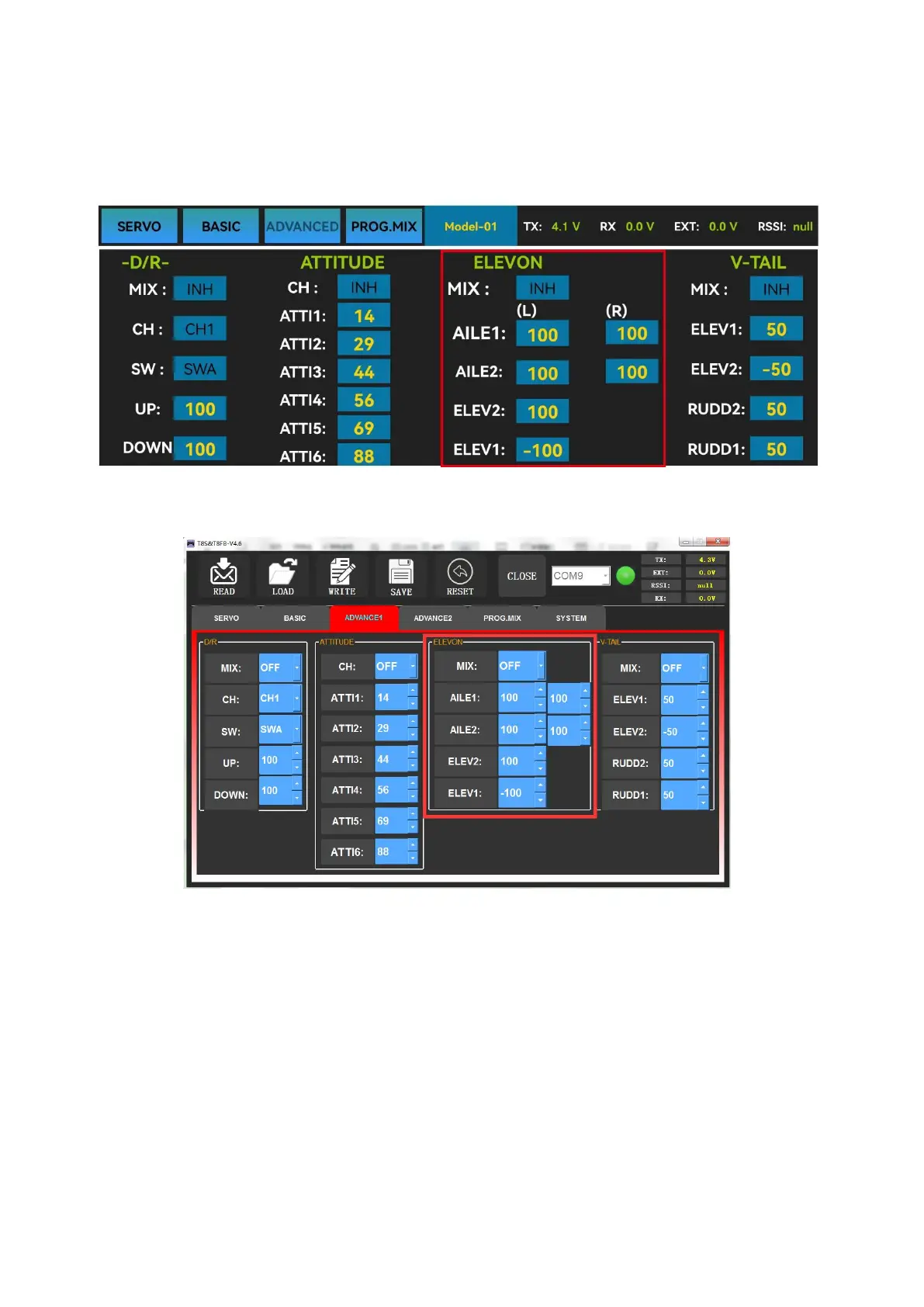

The interface of parameter setup APP on phone.
The interface of parameter setup software on computer.
3.3.4 V-TAIL
V-TAIL used for fixed wing with v-tail. Two servos can control two servos surfaces that on the
left and right sides of the aircraft separately, and operate aileron function and elevator function.
When “MIX” is set from “INH” to “ON”, the “ELEV “and “RUDD “function is turned
on. When this function is turned on, then both CH2 and CH4 will respond, and servo travel range
can be adjusted individually.
