Chapter 5 T8S Joystick Calibration
When the joystick of the T8S is not in the center position, or there is large difference of the
travel amount, T8S needs to be calibrated. T8S joystick calibration method is as follows:

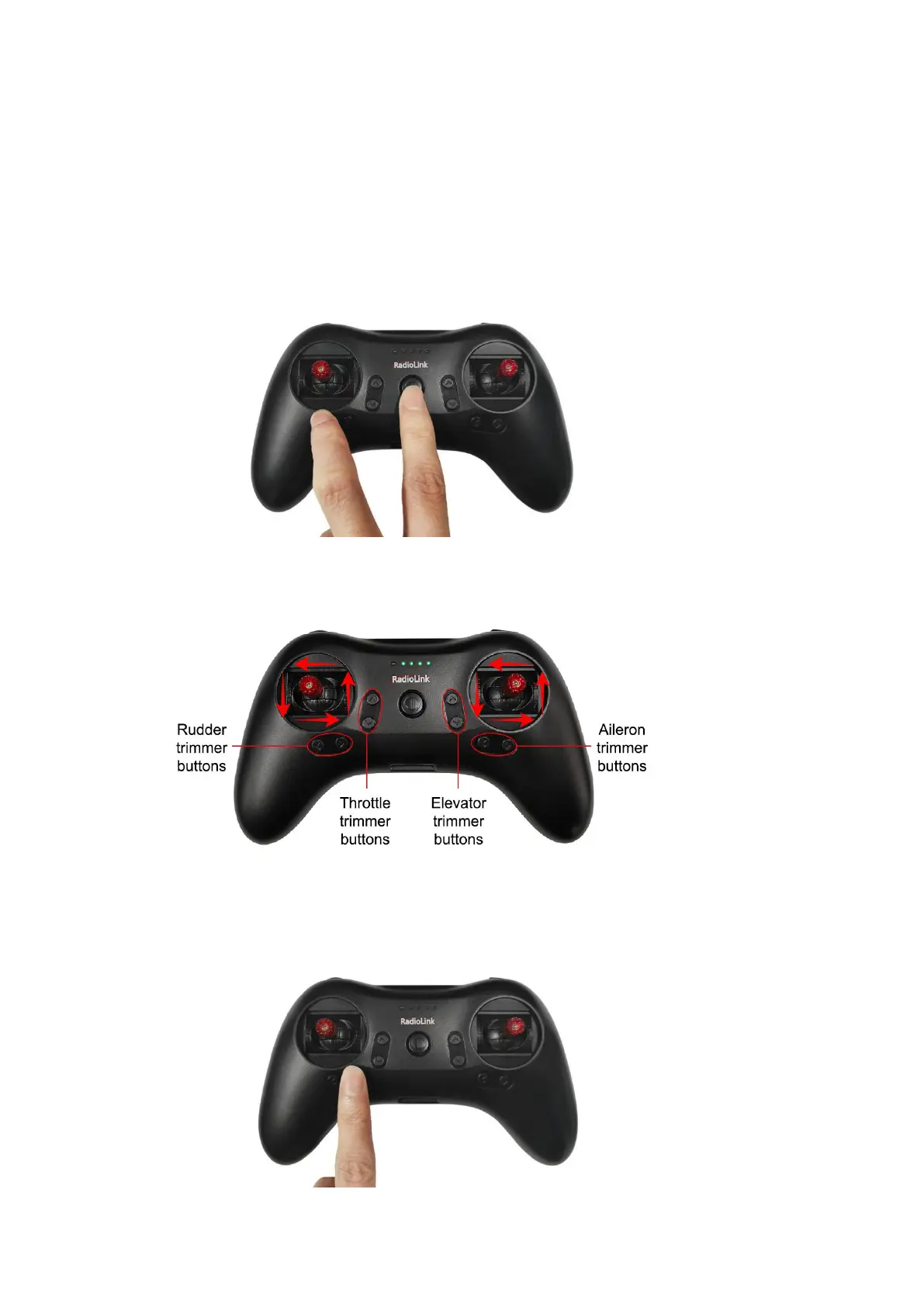

1. When the transmitter is power-off, toggle both sticks at the central point. Press rudder trimmer
button (The first button on the left) and turn on transmitter at the same time. Four green LED
indicators will start flashing and T8S is ready to be calibrated.
2. Range Calibration: Toggle both sticks (Ch1-4) to the highest point/maximum and the lowest
point/minimum. Then back to the central point. (Refer to image below)
3. Central Point Calibration: When the joysticks are placed in the central point, press rudder
trimmer button (The second button on the left), there will be DD sound. Four flashing LED
indicators turn solid green means stick calibration is complete.
