RadioLink T8S(BT) - Firmware Upgrade Steps; Driver Installation

26
The interface of parameter setup software on computer. There are also 4 groups of
programmable mix control that can be set in the computer parameter software.
3.4.2 TH/CURE
Throttle curve (TH/CURE) is the set output travel by throttle. It is to coordinate the motor
response and the throttle operation. The horizontal ordinate is the joystick position while the
vertical ordinate is the throttle output.
When “TH-SW” is set from “OFF” to “ON”, the throttle curve function is turned on.
Adjust the value of 7 points. The adjustable range is from 0 to 100. The larger the value it is, the
larger the output throttle is when the throttle joystick moves to the corresponding position.

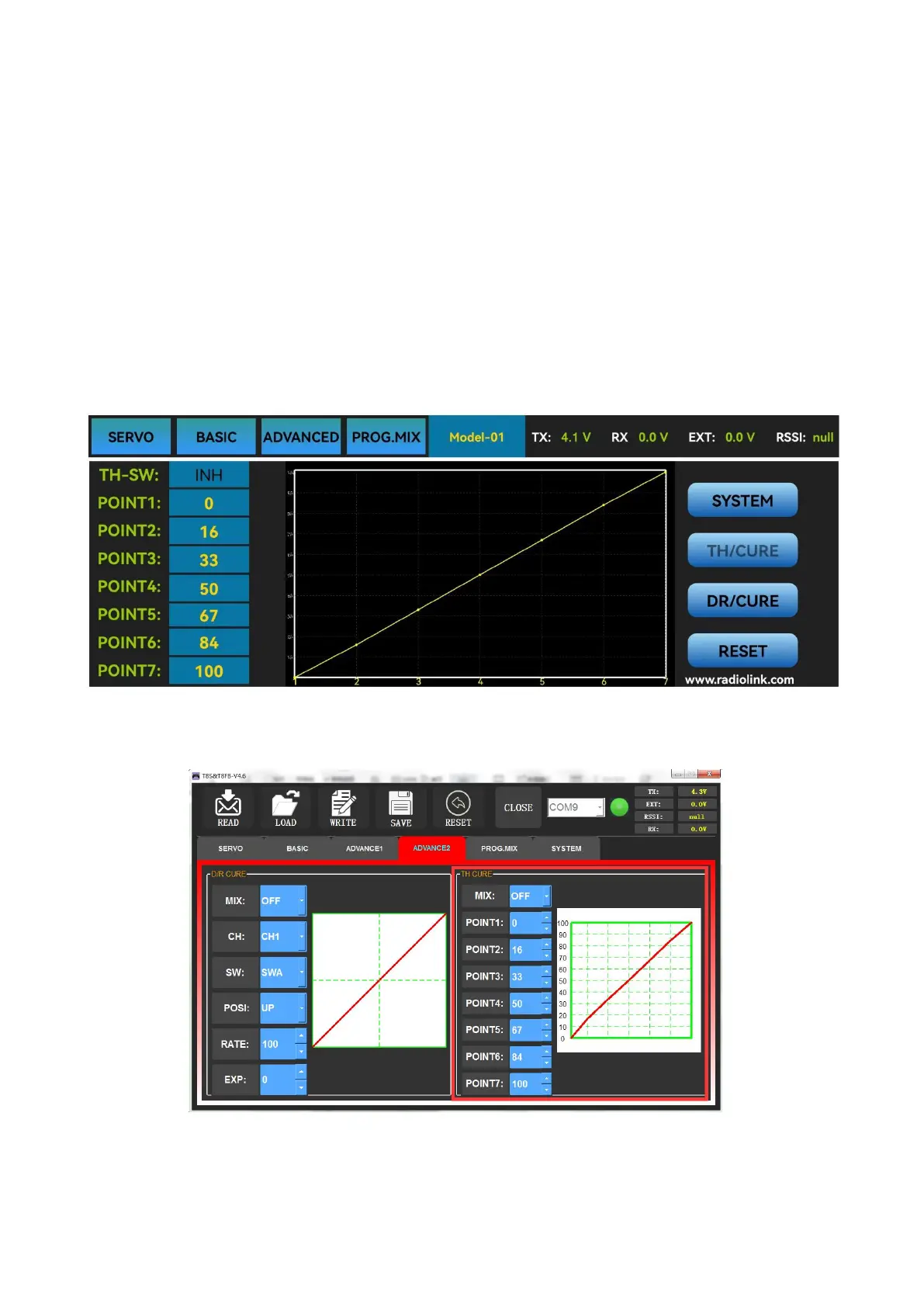

The interface of parameter setup APP on phone
The interface of parameter setup software on computer
