6
Trimmer buttons: T8S has 4 groups trimmer buttons (two for each group), which can trim roll,
pitch, throttle and yaw respectively. The trimmer buttons are used to quickly adjust the model
during flight.
Three-way switch: CH7 (SWA) and CH5 (SWB) are three-way switches, which can be assigned to
the auxiliary channel through APP to control the equipment connected to this channel. (Note: If
you have purchased RadioLink RTF fixed wing or racing drone that come with a T8S transmitter,
the three-way switches control the switching of the flight mode by default.)
Knob switch: CH8 (VRA). This switch can be set by parameter setting APP according to your
needs, and is mostly used for Pan/Tilt/Zoom adjustment.
Push button: CH6 (VRB). This switch can be set by parameter setting APP according to your
needs, and it is mostly used to control camera shutter.
1.2.4 Transmitter Battery
The built-in battery of T8S is a 1S LiPo battery. When the voltage is low, the green indicator will
flash with a DD warning sound. Make sure to charge the battery in time to avoid the possible
damage by over discharge.
It is easy to charge T8S. You only need to connect T8S to the computer with the USB cable
comes with T8S. When the first LED indicator light on T8S turns from red to blue, T8S is fully
charged.

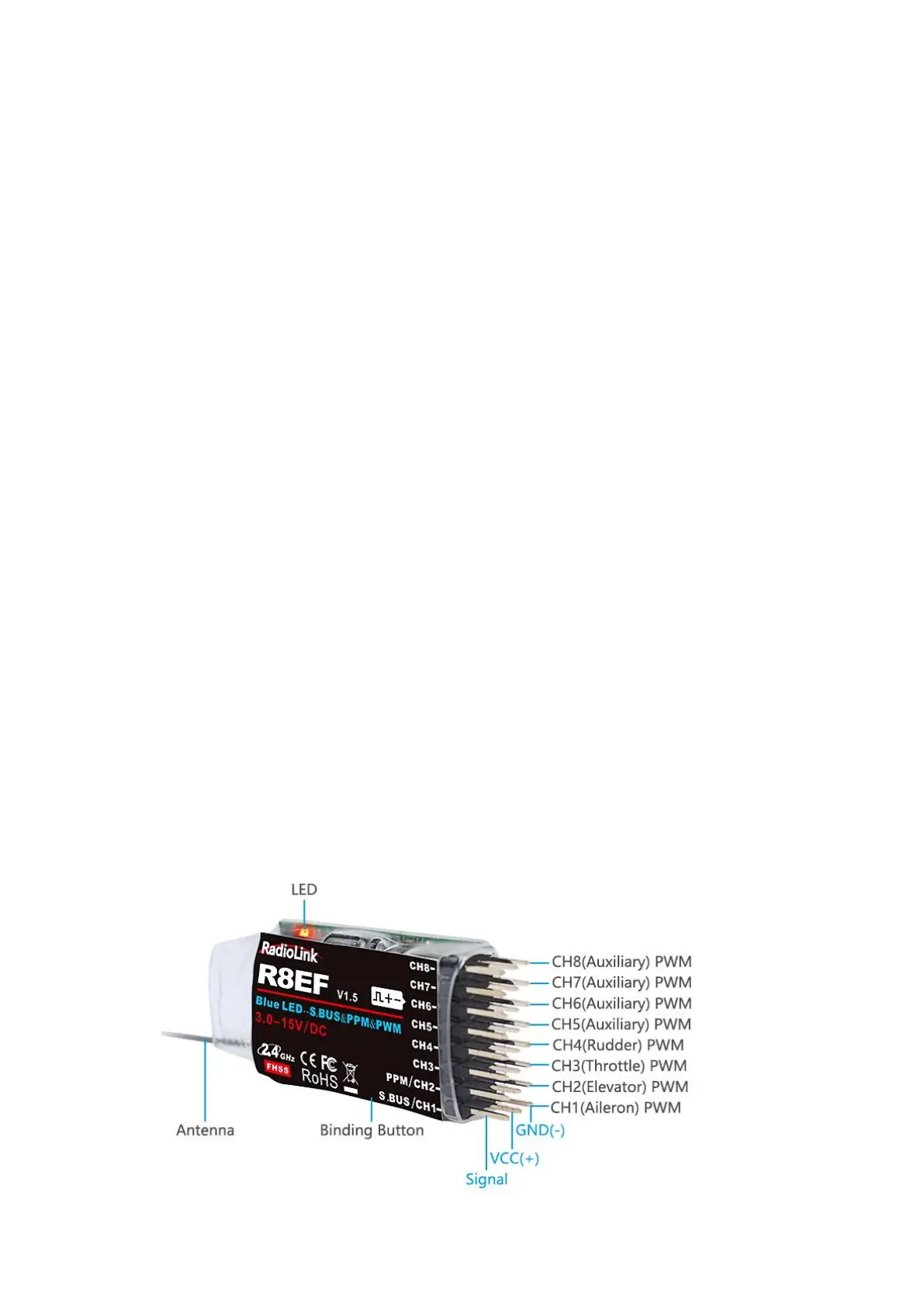

1.3 R8EF Receiver
1.3.1 Receiver Mode and Signal Switch
The standard receiver packed with T8S is R8EF, 8-channel receiver with PWM and SBUS/PPM
signal output supported.
Signal Working Mode
(1) PWM Working Mode: Receiver indicator is RED with all 8 channels output PWM signal.
