Getting started 21
Electrodes windowElectrodes window
Electrodes windowElectrodes window

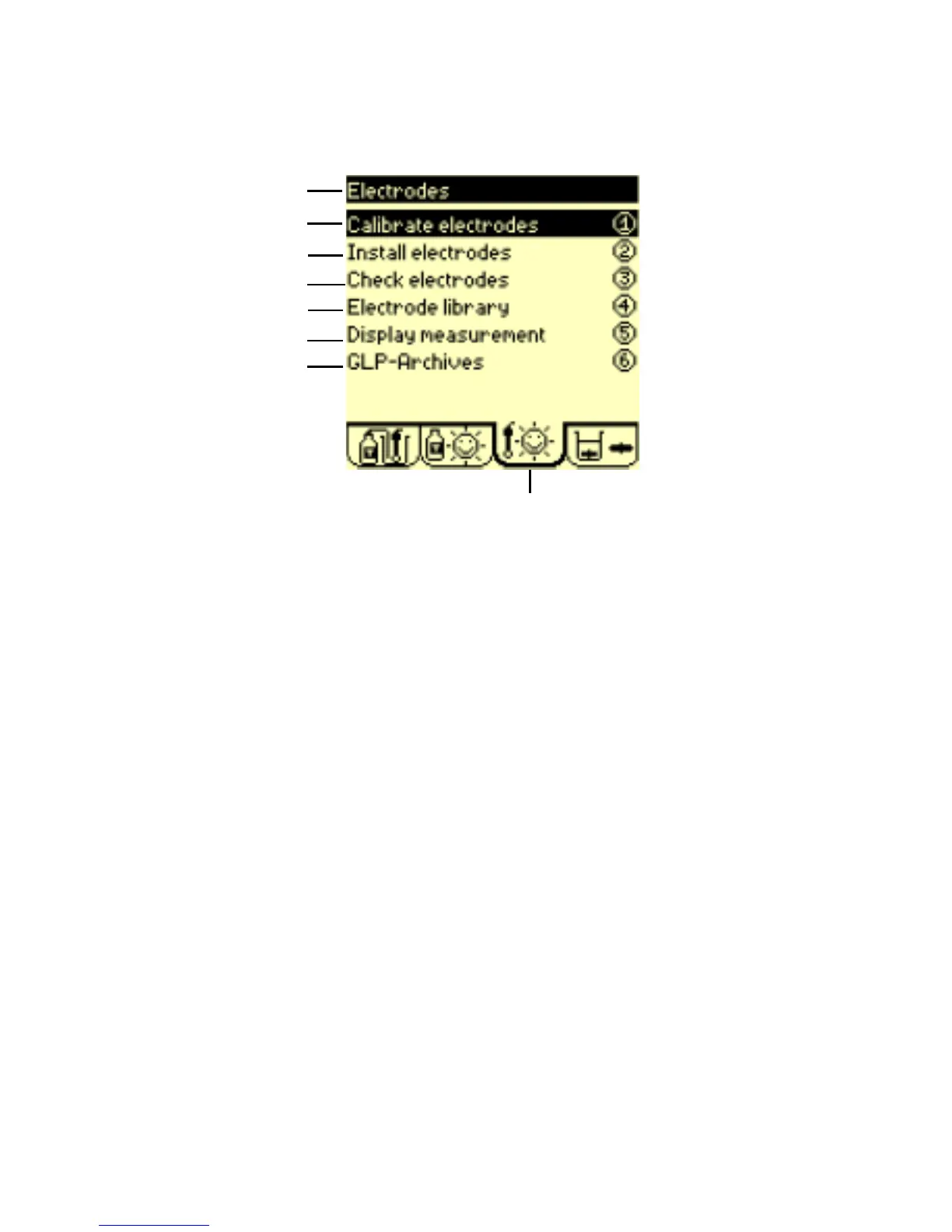

Electrodes window
Use the RIGHT arrow key to move to this window.
1
2
4
5
6
7
8
3
1. Title bar: indicates the name of the window.
2. Calibrate electrode: run a calibration or a calibration sequence
using the installed electrodes.
3. Install electrodes: connect, disconnect or replace electrodes in a
method or sequence.
4. Check electrodes: check the identification parameters of the
electrodes used in the method or sequence.
5. Electrode library - Supervisor use only: create, edit, reset and
delete electrodes stored in the instrument.
6. Display measurement: displays mV and/or pH and/or temperature
at a connected electrode of the electrode system.
7. GLP-Archives: access GLP tables and visualise the stored
electrode calibration results.
8. Electrode tab: Electrode status icon indicates the state of the
electrode system. Five types of icons can be displayed.
