Introduction
10
Board layout

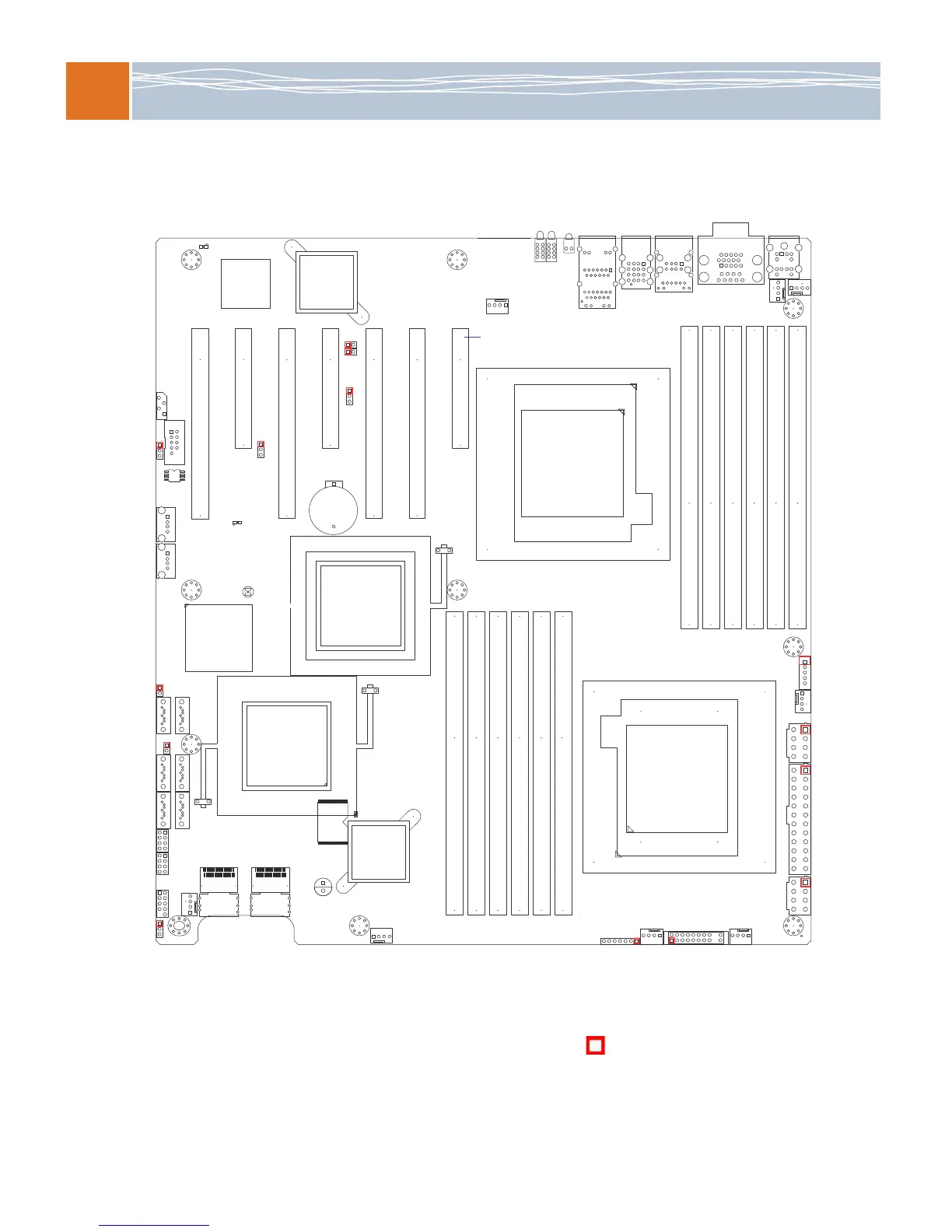

Figure 1. SB5520DT1 layout: top view
Notes:
 Jumpers not indicated are for test purposes only.
 The location of pin 1 is indicated by a red square:
 When DP1 is on, the onboard power connection is on. Make sure to unplug the power
cables before removing or installing components.
JBT1
CPU2
CPU1
Jl2C1
JPL1
JPS1
JPB1
FAN3
JFI
FAN2
FAN1
JD1
FAN6
JSMB1
JL1
FAN4
USB7
USB6
FAN5
KB
MOUSE
JPW2
JPW1
JPW3
JPI2C
FAN7
I-SATA3
I-SATA2
I-SATA5
I-SATA4
I-SATA1
I-SATA0
SAS0-3 SAS4-7
USB8/9
JPG1
COM2
SATA-SPGIO-0
SATA-SPGIO-1
FAN8
JI2C2
VGA
COM1
USB0/1
IPMI LAN
USB
2/3
4/5
LAN2
LAN1
JOH1
P2 DIMM3A P2 DIMM3B P2 DIMM2A P2 DIMM2B P2 DIMM1A P2 DIMM1B
P1 DIMM1B P1 DIMM1A P1 DIMM2B P1 DIMM2A P1 DIMM3A P1 DIMM3B
Intel 5520
(IOH-36D-2)
Intel 5520
(IOH-36D-1)
Intel ICH10R
(South Bridge)
Battery
SLOT7 PCI-E 2.0 X8 SLOT6 PCI-E 2.0 X8 SLOT5 PCI-E 2.0 X16 SLOT3 PCI-E 2.0 X16 SLOT2 PCI-E 2.0 X4 SLOT1 PCI-E 2.0 X16 SLOT4 PCI-E 2.0 X4
Buzzer
SPI
DP5
BMC
LAN CTRL
LSI
SAS2008
SAS FLASH
DP1
POST CODE
LEDs
BMC HEARTBEAT
BIOS
LEDS2
(not populated on
SB5520DT1-SAS)
