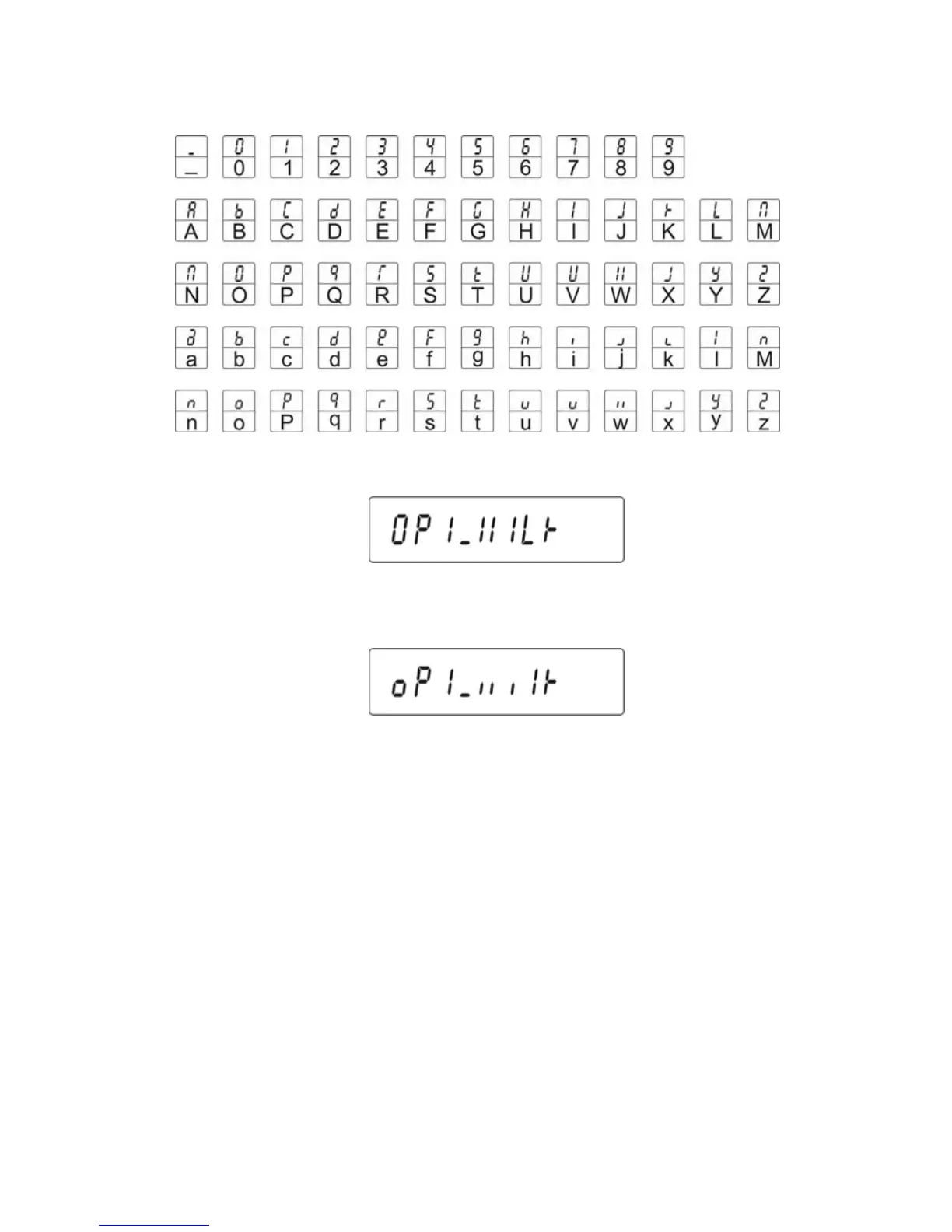

Available characters and their equivalents displayed by scale are shown on the

drawing below:

Exemplary user name introduced to scale with capital letters:

OP1_WILK (operator 1 WILK)

Exemplary user name introduced to scale with small letters:

op1_wilk (operator 1 wilk)
