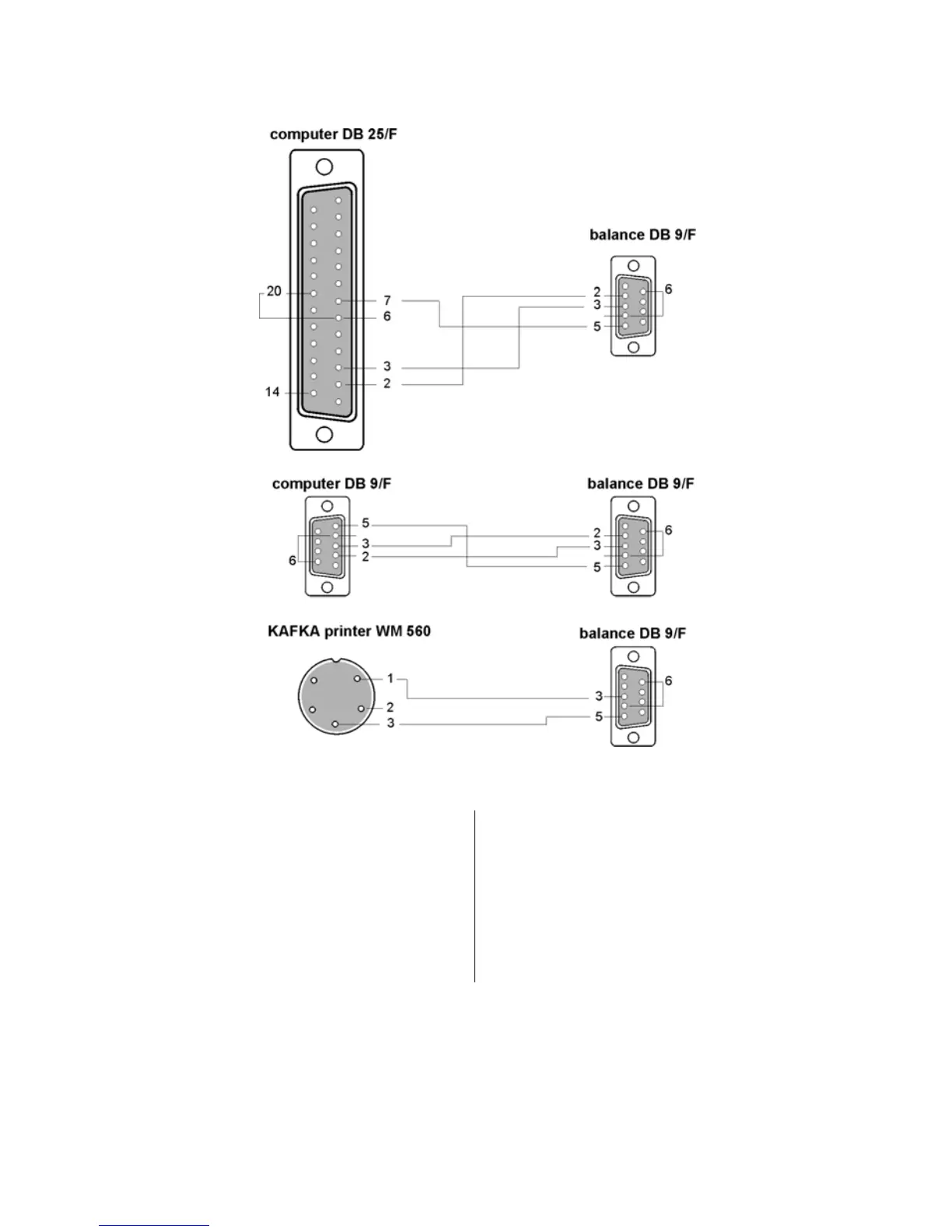

15.1. Schedules of connecting conductors

WEIGHT COMPUTER

2 (RxD) 3 (TxD)

3 (TxD) 2 (RxD)

4 (DTR) 6 (DSR)

5 (GND) 5 (GND)

6 (DSR) 6 (DTR)

7 (RTS) 8 (CTS)

8 (CTS) 7 (RTS)
