QRA
E II User Guide
Page
27
4.5.3
Calibrate Monitor
The QRAE
II
is designed to perform automated calibrations.
Note:
The procedures for calibration are covere
d i
n a separate section, “Calibrating The
QRAE
II
,” on page
47.

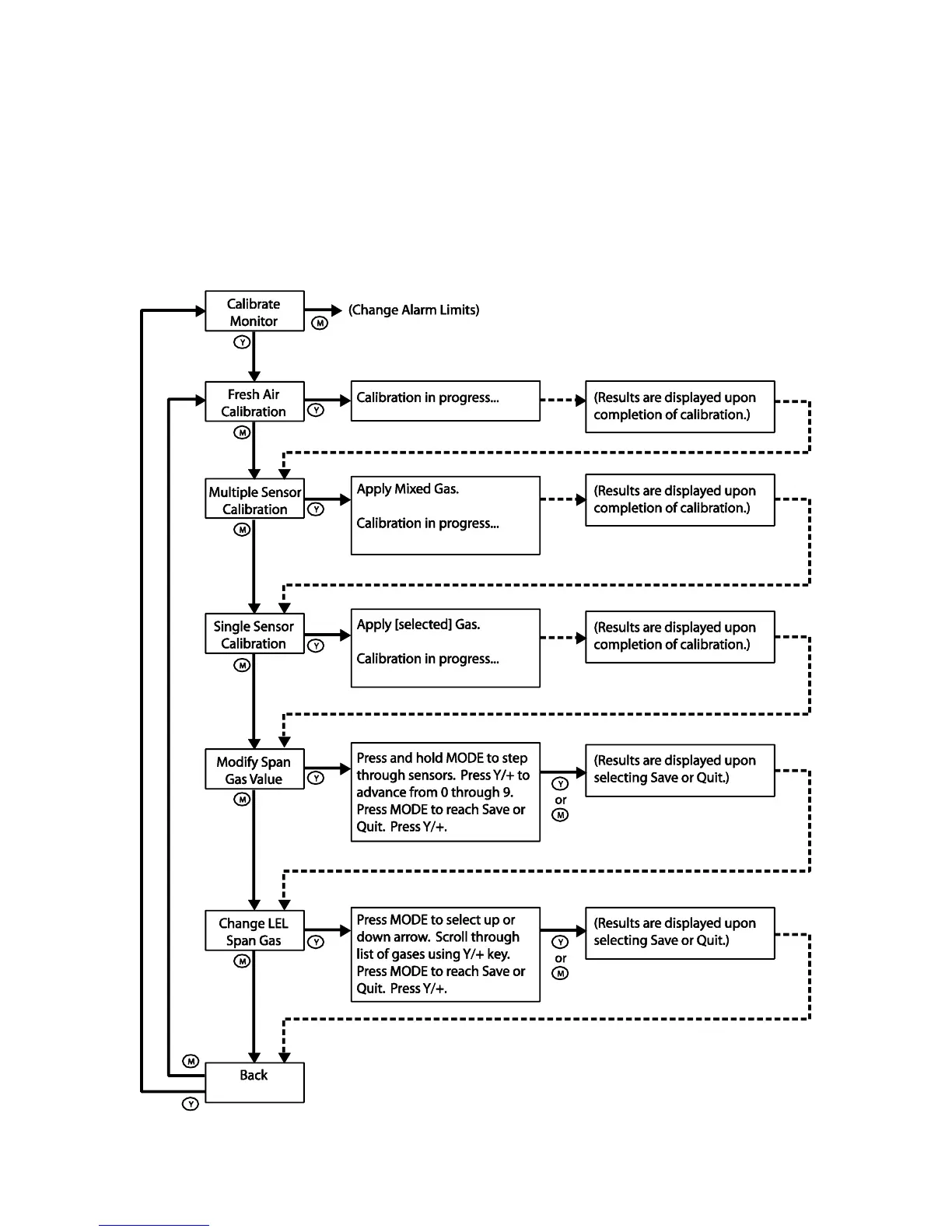

The submenus and actions are shown in the following diag
ram.
28
30
