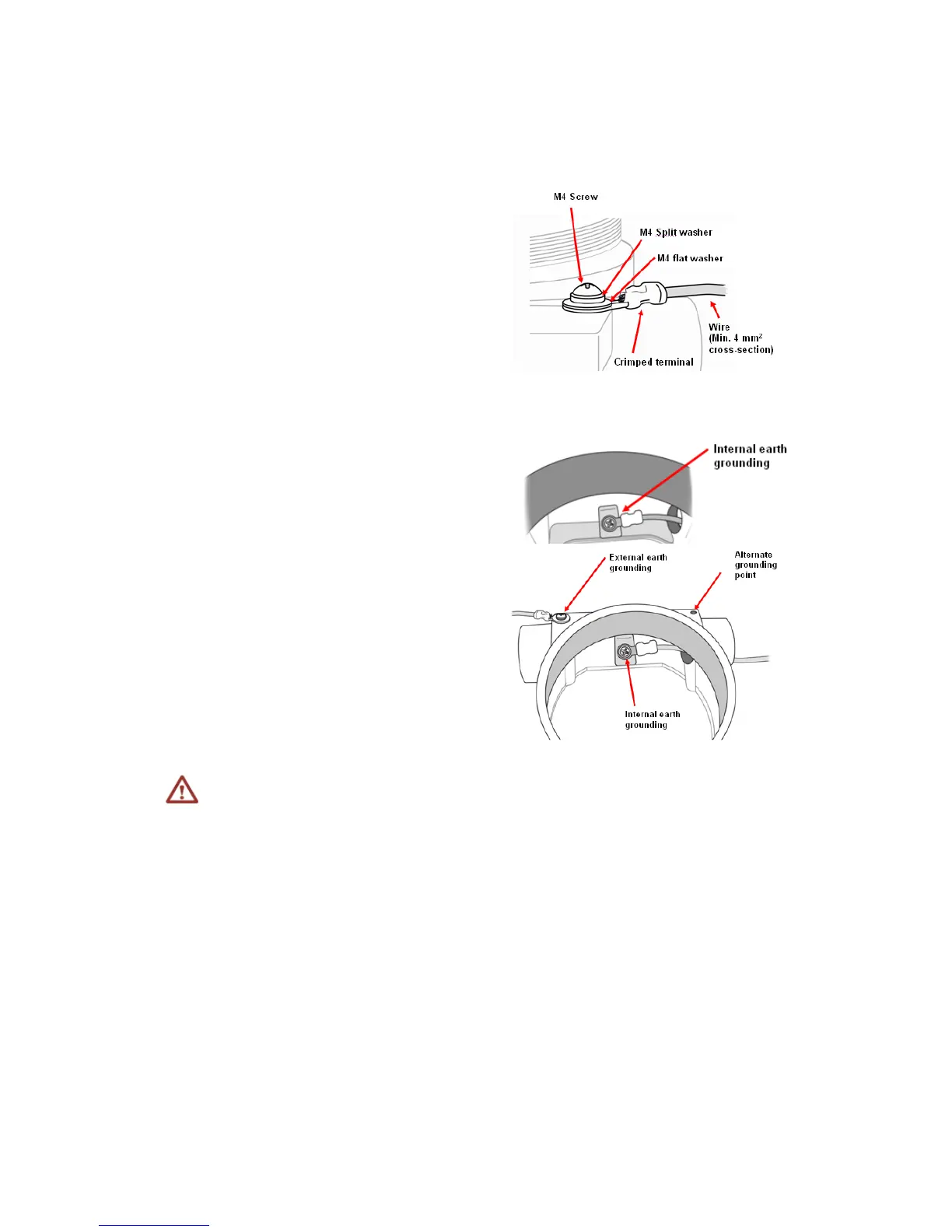

8. EARTH GROUNDING INSTRUCTIONS
External Earth Grounding
Fasten the crimped ground wire
with hardware as illustrated below.
The wire should have a minimum
cross-section area of 4mm
2
for its
conductor.
Internal Earth Grounding
Use the same hardware as shown in
the illustration of external earth
grounding. The wire should be no
less than the size of the power lines.
Finished Grounding Wires
Internal and external grounding are
shown here, as well as an alternate
external grounding point. Always
follow local electrical guidelines.
Sensors are not interchangeable; use only RAE Systems
sensors, and use only the sensor type specified for your
RAEGuard2 monitor. Use of non-RAE Systems components will
void the warranty and can compromise the safe performance of
this product.
