348 IN CASE OF EMERGENCY

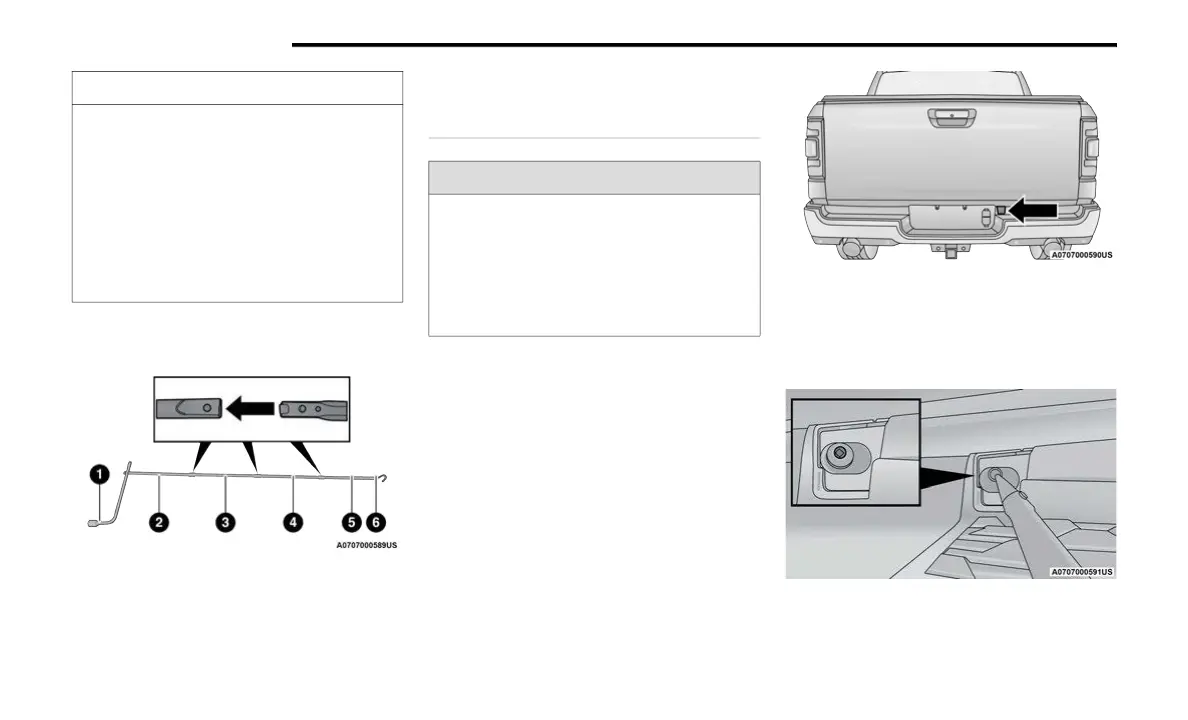

Assembled For Jack Operation
Assembled For Jack Operation
REMOVING THE SPARE TIRE
1. Remove the spare tire before attempting to
jack up the truck. Attach the lug wrench to the
extension tubes with the curved angle facing
away from the vehicle.
2. Remove the protective cover over the access
hole
for the winch mechanism by sliding the
cover upward.
Access Hole Cover Location
3. Insert the extension tube through the access
hole
between the lower tailgate and the top of
the fascia/bumper and into the winch
mechanism tube.
Winch Mechanism Tube
CAUTION!
The lug wrench can only be attached to exten-
sion 2.
When attaching the tool to the winch mecha-
nism be sure the large flared end opening on
exte
nsion 4 is positioned correctly over the
winch mechanism adjusting nut.
Damage to the lug wrench, extensions and
winch mechanism may occur from improper
tool assembly.
1 — Lug Wrench
2 — Long Extension 2
3 — Long Extension 3
4 — Long Extension 4
5 — Short Extension 5
6 — Extension With Hook
WARNING!
After using the jack and tools, always reinstall
them in the original carrier and location. While
driving you may experience abrupt stopping,
rapid acceleration or sharp turns. A loose jack,
tools, bracket or other objects in the vehicle may
move around with force, resulting in serious
injury.
