374 SERVICING AND MAINTENANCE

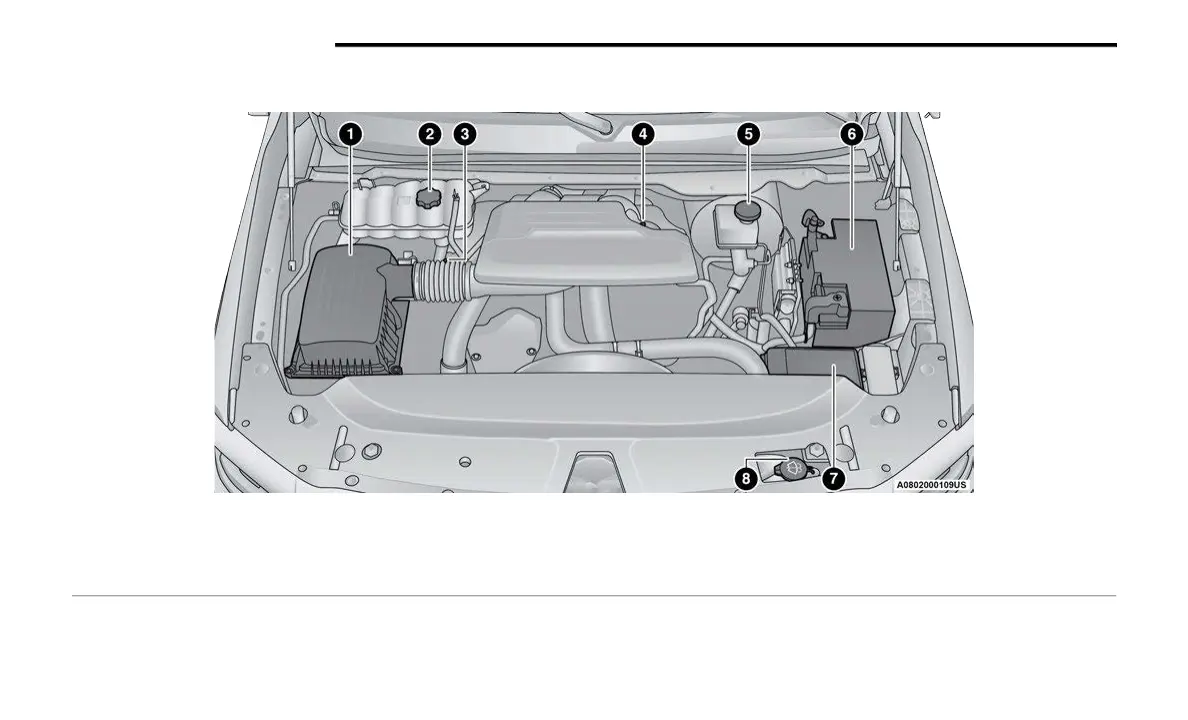

3.0L DIESEL ENGINE

1 — Engine Air Cleaner Filter 5 — Brake Fluid Reservoir Cap

2 — Engine Coolant Reservoir Pressure Cap 6 — Battery

3 — Engine Oil Dipstick 7 — Power Distribution Center (Fuses)

4 — Engine Oil Fill 8 — Washer Fluid Reservoir Cap
