GETTING TO KNOW YOUR VEHICLE 91

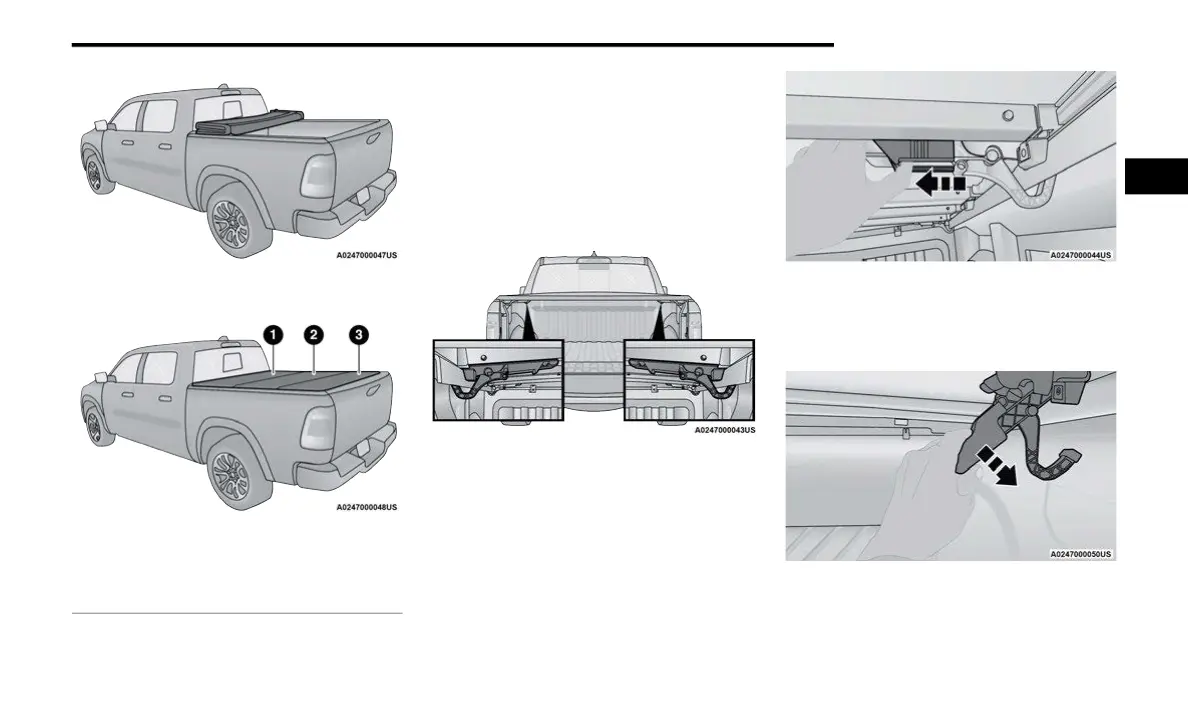

Position One (Front Latches Latched And Stowage
Straps Secured)
Position Two (Front And Rear Latches Latched)
TRI-FOLD TONNEAU COVER FOLDING
F
OR DRIVING OR REMOVAL
To remove the Tonneau Cover use the following
steps:
1. Open the tailgate to access the rear pair of
Ton
neau Cover latches located on the
underside of the Cover.
Location Of Rear Latches
Slide Locking Lever Inward
2. Slide the locking lever toward the inside of the
tru
ck bed to release the J Hook and pull the
handle downward into the released position.
Unlatching Latch
1 — Panel 1
2 — Panel 2
3 — Panel 3
