Each cleat must be located and tightened down in
one of the detents, along either rail, in order to
keep cargo properly secure.
To move the cleat to any position on the rail, turn
the
nut counterclockwise, approximately three
turns. Then pull out on the cleat and slide it to the
detent nearest the desired location. Make sure the
cleat is seated in the detent and tighten the nut.

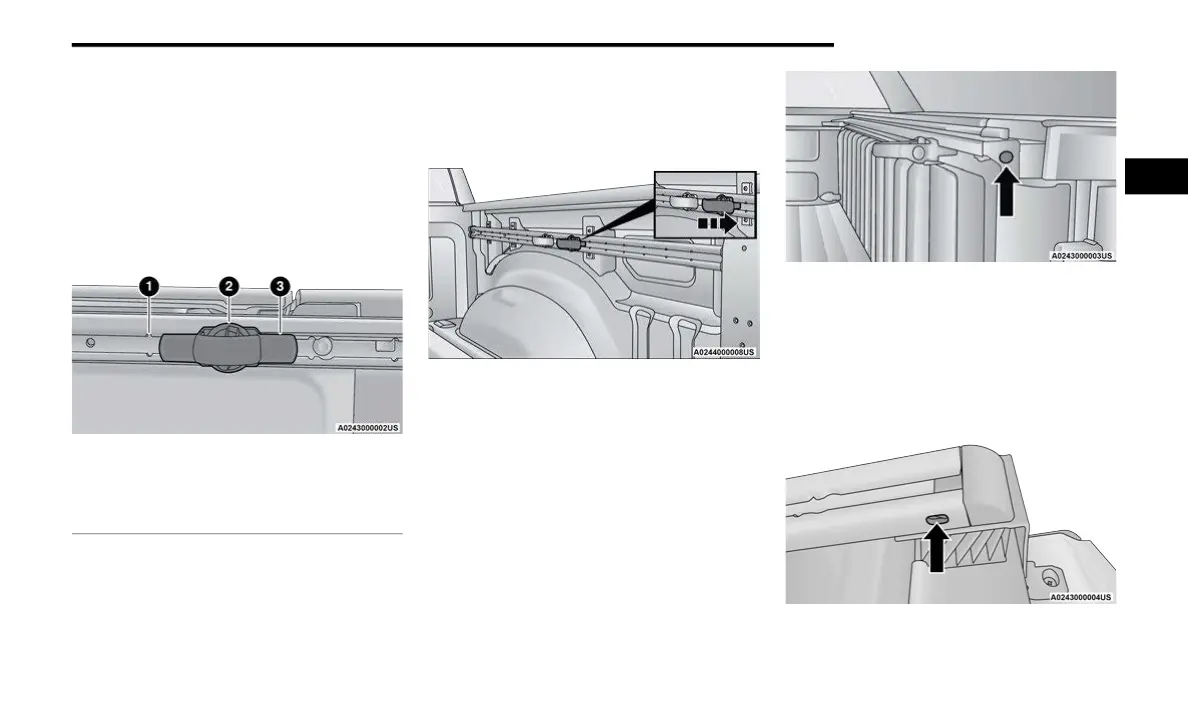

Adjustable Cleat Assembly
Cleat Removal (Standard Box Rail)
To remove the cleats from the utility rail, slide the
clea
t forward to access the cut out at the end of the
box rail, then remove the cleat.
Slide Cleat Forward To Remove
Cleat Removal (With Tonneau Cover)
To remove the cleats from the utility rail, remove
t
h
e
end cap screw located in the center of the end
cap, using a #T30
Torx head driver. Remove the
end
cap and slide the cleat off the end of the rail.
End Cap Screw Location With Tonneau Cover
Cleat Removal (Without Tonneau Cover)
Remove the end cap by pushing upward on the
rele
ase button located beneath the end cap while
pulling the cap away from the rail. The cleat can
now be removed by sliding it off the end of the rail.
End Cap Release Button Without Tonneau Cover
1 — Utility Rail Detent
2 — Cleat Retainer Nut
3 — Utility Rail Cleat
