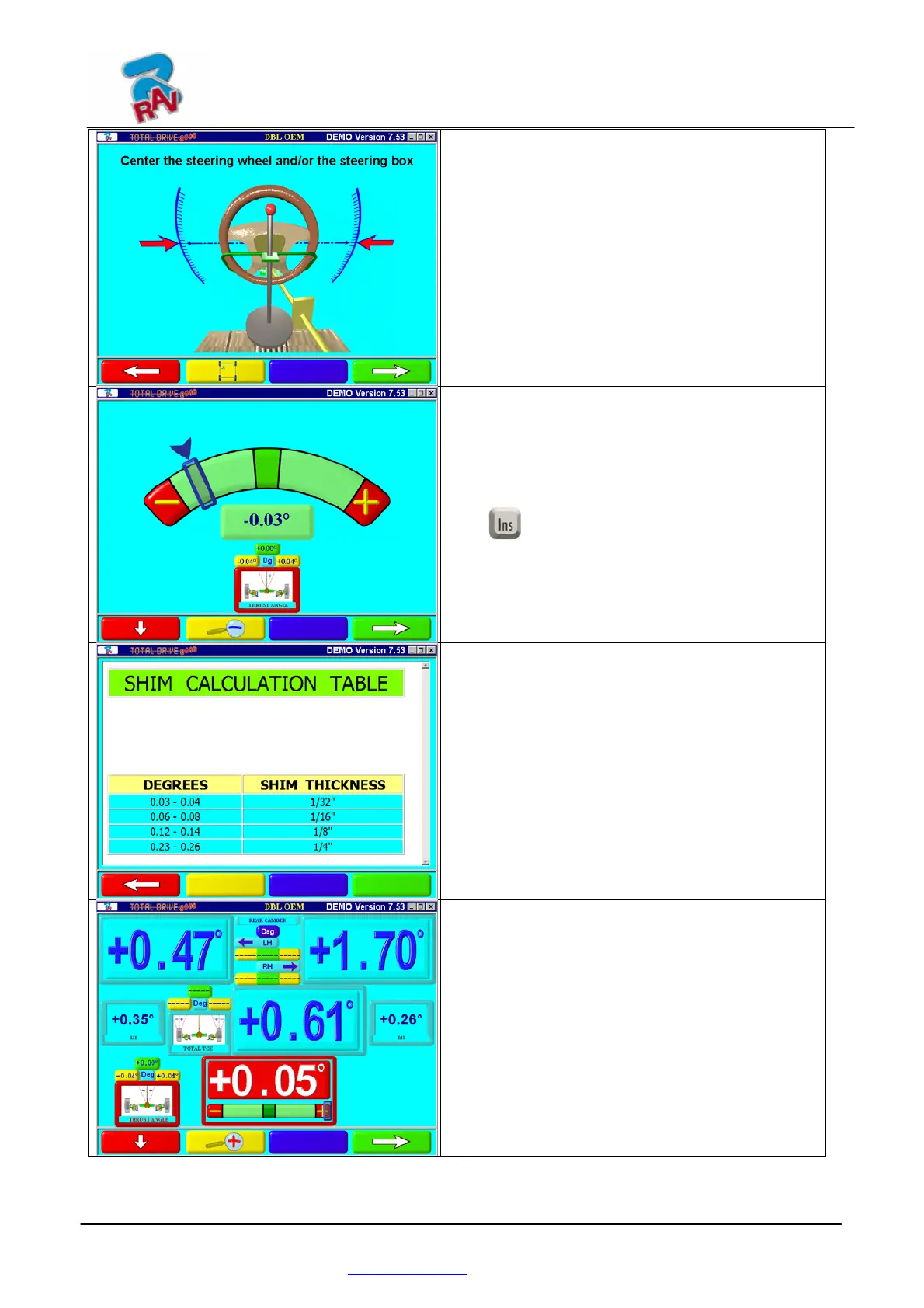

Center the steering wheel and/or the steering box
Wait until automatically appear the next page or
press F4 to proceed
Adjust the rear thrust angle where is possible and
needed on the rear axle.
Note: from this page and from any page where is
indicated adjustment angles by pressing the key
“Ins” appears the below indicated table that
specify the shim thickness related to angles
variation.
Press F4 to proceed
Take note of the shim thickness and press F1 to
return back previous page.
With the Key F2 it is also possible to zoom and
unzoom the partial Toe angles, seeing also the
Total Toe and Camber.
Press the Key F4 to proceed.
Press Shift +F5 to get the partial toe displayed
with big digits and Shift +F5 again to get again
small
