INSTRUCTION MANUAL
RAV TD8060TWS - RAV TD8060TWSR
RAV TD8080TWS - RAV TD8080TWSR
Code M0230 - rev.1.1
(01/2014)
RAVAGLIOLI S.p.A.
RAVAGLIOLI S.p.A. – 40044 Pontecchio Marconi (BO) Via I Maggio, 3
Page 41/ 64
Tel. (+39) 051/ 67.81.511 – Fax (+39) 051/ 84.64.67
e-mail: rav@ravaglioli.com /http www.ravaglioli.com

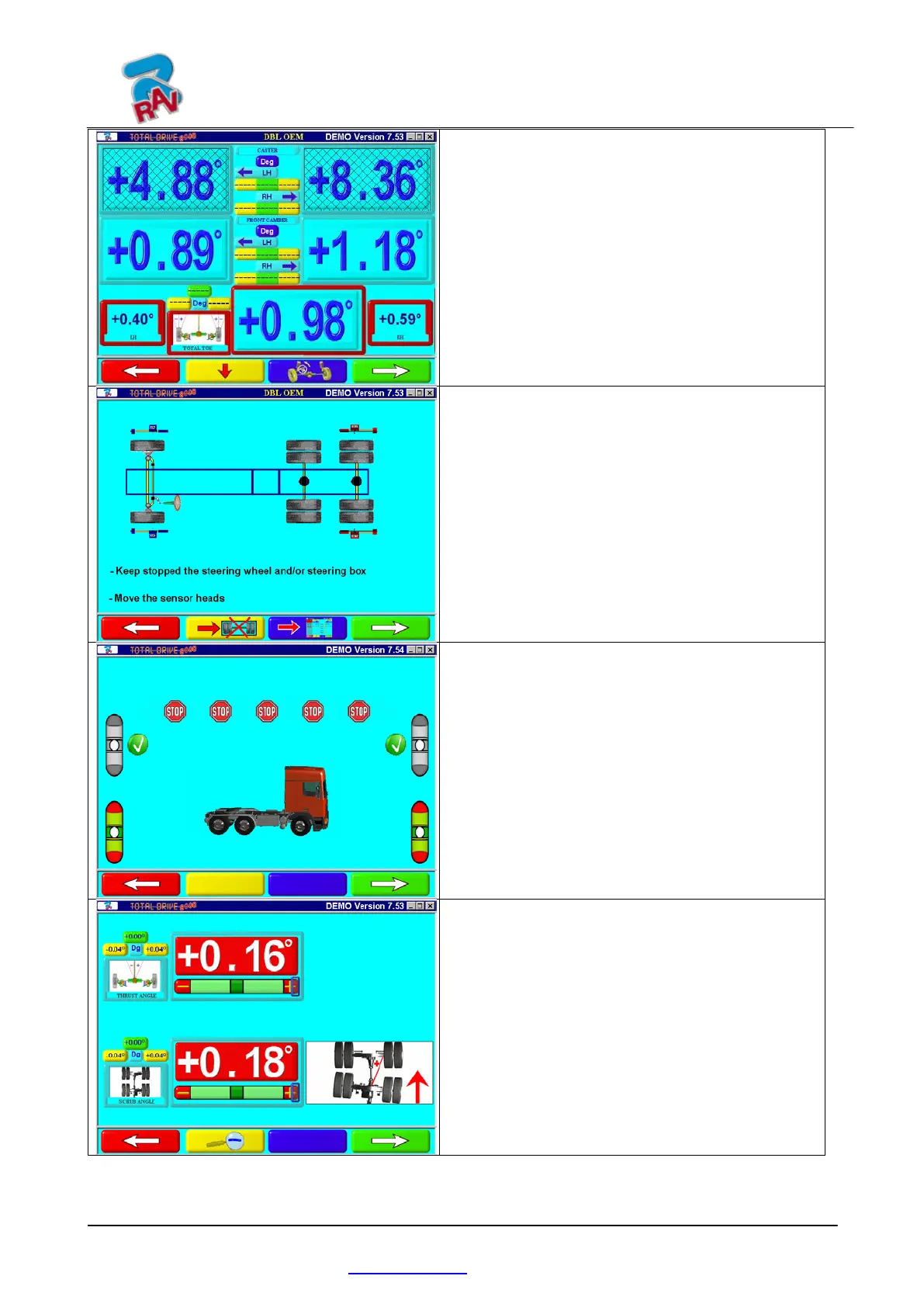

Adjust the front axle, Caster, Camber and Toe
where is possible and needed.
Press F4 to proceed
Press F3 to repeat the steering procedure or F1
to return rear axle adjustment
Move the Rear sensor heads from 1
st
rear axle to
the 2
nd
rear axle, Press F4 to proceed.
Important: Keep stopped the steering wheel
and/or the steering box.
Note: It is possible to skip this axle pressing F2,
or skip all the axles remained going directly in the
summary page pressing F3.
Level the Rear heads (mounted on the second
axle), leaving the front sensor in their position,
and wait until automatically appear the next
page.
Adjust the SCRUB ANGLE referred to the front
axle, as indicated on the picture beside.
As illustrated the 1
st
rear axle must be turned
anticlockwise
