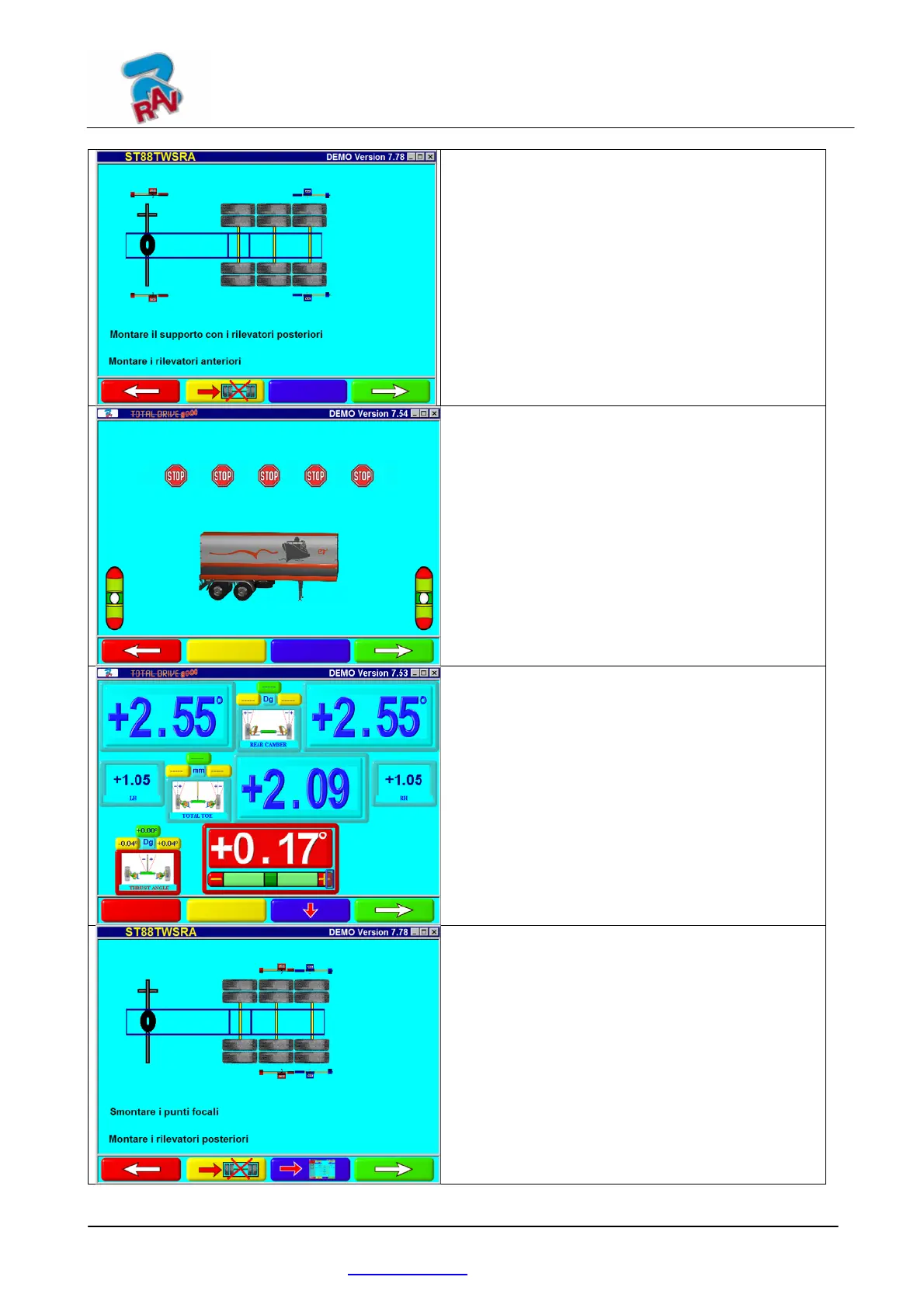

Mount the trailer King-pin. Mount the front sensor
heads on the last axle.
Press F4 to proceed
Level the heads and wait until automatically
appear the next page.
Adjust the Toe and the trust angle where is
possible and needed on the last semi-trailer
axle.
Press F4 to proceed
Mount now the Rear sensor heads
(conventionally the Front Sensor are displayed
BLUE and the Rear are RED)
Remove the reference focal points.
Press F4 to proceed
Note: It is possible to skip this axle pressing F2,
or skip all the axles remained going directly in the
summary page pressing F3.
